Spex SuperShape Back Support

Enquire now
Spex SuperShape Back Support

Spex SuperShape Back Support

It looks simple; however, the SuperShape has patented, concealed technology!

On the outside:

Robust and durable back support with a breathable, washable cover.

Spex-SuperShape-Render-Exploded-Inserts-2-768x432

On the inside:

  • Expansion Fabric Cover: Allows extensive contouring without compromising skin protection.
  • Primary Contouring Section: With comfortable pressure-reducing foam surface layer to absorb bony prominences.
  • Secondary Contouring Section: With contouring cube cells on both sides.
  • Positioning Wedges: Zipped up inside the cover.

Spex-SuperShape-Render-Exploded-View-Cushion-768x593

Functional benefits

Triple-layered cube contouring cell system

Triple-layered cube contouring cell system

Contouring of the cushioning is essential to apply intimate surface contact to areas of the body which are contoured. A triple-layered cube contouring cell system provides configurations for a perfect fit and shape that is unique to the client. The padded moulding structure is comprised of a three-layered Spex cube contouring substrate. The best result is achieved by creating areas of greater or lesser support with the adjustment of the multiple-layered padded pocket cells.

Expansion fabric cover for maximum contouring

Expansion fabric cover for maximum contouring

Innovative expansion fabric on the contact surface of the back support, allows for varying levels of back support contouring without compromising on skin protection.

Two available pad densities for optimum support

Two available pad densities for optimum support

Two densities of Spex contouring pads to insert into the triple-layered cube contouring cell system, are included with every back support to ensure correct personal fitting, stability, and comfort exactly where it is needed.

- Higher density, firmer closed-cell foam to create a contoured foundation.
- Lower density, immersive foam to provide comfort and a more rounded contoured surface.

Concealed technology behind the covers

Concealed technology behind the covers

The SuperShape back support has the same stylish Spex look, with all its clever technology hidden beneath the covers!

Can be fitted to virtually any wheelchair frame

Can be fitted to virtually any wheelchair frame

- Quickie 2
- Q500M
- TA iQ
- TDX SP

Choose from a large range of lateral and head supports

Choose from a large range of lateral and head supports

Select from the wide range of Spex Stylo Head Support options available in a variety of colours.

Media

Contouring for Scoliosis Play

Contouring for Scoliosis

Contouring for Lordosis Play

Contouring for Lordosis

Contouring for Kyphosis Play

Contouring for Kyphosis

How to use the Contouring Chart Play

How to use the Contouring Chart

Clinical & Functional Benefits

Clinical
  • Clinical
  • Functional

Designed for the individual who:

  • Has complex postural needs such as kyphosis, scoliosis, hyperlordosis, etc
  • Has significant spinal or trunk asymmetries
  • Has protruding skeletal prominences
  • Risks skin breakdown and has pressure care requirements
  • Requires greater immersion into back support for stability and comfort
  • Requires torso pain reduction

The contouring of the cushioning is essential to apply intimate surface contact to areas of the body that are contoured. The padded moulding structure is comprised of a three-layered Spex cube contouring substrate. The best result is achieved by creating areas of greater or lesser support with the adjustment of the multiple-layered padded pocket cells. We have developed 2 different densities of Spex cube cells in order to provide stability and comfort where it is needed. The SuperShape can adapt to changing needs and provide enough stability for complex and asymmetric postures

Create shapes, contours and comfort.

  • SuperShape back support can be fitted to virtually any wheelchair chassis
  • Expansion fabric cover that allows all kinds of contouring without compromising skin protection
  • Comfortable pressure-reducing foam surface layer to absorb bony prominences
  • The contouring system comprises a triple-layer cell system of cubes whereby padding can be increased or decreased to provide different shapes and configurations to suit any individual for a perfect fit and shape
  • Deep contour solution which offers exceptional contact to contoured areas of the body
  • Customisation to contouring is performed on the spot, as many times as you want
  • Created as the solution for asymmetrical back postures
  • Modular componentry means you can “mix and match” with different lateral pad options and positioning supports
  • Wide range of adjustment in angle, depth, and height for growth and changing needs
  • Breathable, washable cover
  • Sizes available from 10” to 20” and in different heights for each width
  • Choose from a large range of lateral supports and head supports
  • Robust and durable
Spex-SuperShape-Render-Moderate

Moderate Needs

Contouring of the cushioning is achieved by adjusting the multiple layered padded pocket cells to create areas of greater or lesser support.

Spex-SuperShape-Render-Kyphosis-1

Complex Needs

On-the-spot contouring allows the patient to adopt their preferred posture for maximum function and comfort.

Spex-SuperShape-Render-Lordosis-1

Custom Needs

SuperShape’s simple method accomplishes superior seating results by accurately contouring to the complex shapes seen in highly involved clients.

Measurements and Specifications

Sizing
  • Sizing
  • Weight Capacity
  • Product Codes

The thickness of the back support is 10 cm. The Spex SuperShape Back Support is designed to be contoured and this measurement only reflects the thickness without any of this contouring. Therefore the back support thickness will likely be less than 10cm in some sections and more in others.

Spex-SuperShape-Back-Support-Sizing-Chart-768x713

Weight Capacity

Back Support Size 10″-15″ (25.4-38 cm) 16″-20″ (41-51 cm) 21″+ (53 cm+)
Maximum Occupant Weight 200 lb (90 kg) 300 lb (136 kg) Must use Heavy-Duty brackets
400 lb (180 kg)
Maximum Occupant Weight with Heavy-Duty brackets 300 lb (136 kg) 400 lb (180 kg)
W/C Width Height Back Support Code Spare Cover Incontinence Cover
10″ 12″ 1256-1012-0SS 1256-1012-0SS-C 1256-1012-0SS-I
14″ 1256-1014-0SS 1256-1014-0SS-C 1256-1014-0SS-I
16″ 1256-1016-0SS 1256-1016-0SS-C 1256-1016-0SS-I
11″ 12″ 1256-1112-0SS 1256-1112-0SS-C 1256-1112-0SS-I
14″ 1256-1114-0SS 1256-1114-0SS-C 1256-1114-0SS-I
16″ 1256-1116-0SS 1256-1116-0SS-C 1256-1116-0SS-I
12″ 12″ 1256-1212-0SS 1256-1212-0SS-C 1256-1212-0SS-I
14″ 1256-1214-0SS 1256-1214-0SS-C 1256-1214-0SS-I
16″ 1256-1216-0SS 1256-1216-0SS-C 1256-1216-0SS-I
13″ 12″ 1256-1312-0SS 1256-1312-0SS-C 1256-1312-0SS-I
14″ 1256-1314-0SS 1256-1314-0SS-C 1256-1314-0SS-I
16″ 1256-1316-0SS 1256-1316-0SS-C 1256-1316-0SS-I
18″ 1256-1318-0SS 1256-1318-0SS-C 1256-1318-0SS-I
14″ 14″ 1256-1414-0SS 1256-1414-0SS-C 1256-1414-0SS-I
16″ 1256-1416-0SS 1256-1416-0SS-C 1256-1416-0SS-I
18″ 1256-1418-0SS 1256-1418-0SS-C 1256-1418-0SS-I
20″ 1256-1420-0SS 1256-1420-00S-C 1256-1420-0SS-I
15″ 14″ 1256-1514-0SS 1256-1514-0SS-C 1256-1514-0SS-I
16″ 1256-1516-0SS 1256-1516-0SS-C 1256-1516-0SS-I
18″ 1256-1518-0SS 1256-1518-0SS-C 1256-1518-0SS-I
20″ 1256-1520-0SS 1256-1520-0SS-C 1256-1520-0SS-I
16″ 16″ 1256-1616-0SS 1256-1616-0SS-C 1256-1616-0SS-I
18″ 1256-1618-0SS 1256-1618-0SS-C 1256-1618-0SS-I
20″ 1256-1620-0SS 1256-1620-0SS-C 1256-1620-0SS-I
23″ 1256-1623-0SS 1256-1623-0SS-C 1256-1623-0SS-I
17″ 16″ 1256-1716-0SS 1256-1716-0SS-C 1256-1716-0SS-I
18″ 1256-1718-0SS 1256-1718-0SS-C 1256-1718-0SS-I
20″ 1256-1720-0SS 1256-1720-0SS-C 1256-1720-0SS-I
23″ 1256-1723-0SS 1256-1723-0SS-C 1256-1723-0SS-I
18″ 16″ 1256-1816-0SS 1256-1816-0SS-C 1256-1816-0SS-I
18″ 1256-1818-0SS 1256-1818-0SS-C 1256-1818-0SS-I
20″ 1256-1820-0SS 1256-1820-0SS-C 1256-1820-0SS-I
23″ 1256-1823-0SS 1256-1823-0SS-C 1256-1823-0SS-I
19″ 16″ 1256-1916-0SS 1256-1916-0SS-C 1256-1916-0SS-I
18″ 1256-1918-0SS 1256-1918-0SS-C 1256-1918-0SS-I
20″ 1256-1920-0SS 1256-1920-0SS-C 1256-1920-0SS-I
23″ 1256-1923-0SS 1256-1923-0SS-C 1256-1923-0SS-I
20″ 16″ 1256-2016-0SS 1256-2016-0SS-C 1256-2016-0SS-I
18″ 1256-2018-0SS 1256-2018-0SS-C 1256-2018-0SS-I
20″ 1256-2020-0SS 1256-2020-0SS-C 1256-2020-0SS-I
23″ 1208-2023-000 1218-2023-0SS-C 1256-2023-0SS-I
Ella

Ella's Story

Celebrating six years of the SuperShape Back Support

Watch Ella's Story
Read the full story

Quick answers

What colours are available to select from for my back support cover?

You can choose from Granite Grey, Ocean Blue, Royal Purple, Calypso Pink, Chilli Red, Mango Orange, Bumblebee Yellow, Leaf Green, or the standard Black, to brighten up your Spex cushion, back support, and head support!

Learn More!

Resources

SuperShape Back Support Flyer

0.52 MB

Spex SuperShape Back Support Contouring Positioning Chart

0.57 MB

Spex Back Support User Manual

2.08 MB

Spex SuperShape Back Support Splash Flyer

6.33 MB

Spex Comparison Chart Back Supports

0.77 MB

Accessories

Spex Lateral Trunk Supports

Spex Lateral Trunk Supports

Spex Shoulder Strap Guides

Spex Shoulder Strap Guides

Spex Stylo Head Supports

Spex Stylo Head Supports

Spex Medial Thigh Support

Spex Medial Thigh Support

Spex Hip Belts

Spex Hip Belts

Spex Lateral Trunk Supports

Spex Lateral Trunk Supports

Select Hardware

  • Fixed Bracket
  • Standard Swing-Away Bracket
  • Axial Swing-Away Bracket

Select Bracket Upgrade

  • Cane Mount
  • DeepContour backrest bracket
  • Extension for DeepContour (commonly used with SuperShape Backrest

Select Comfy-Cover

  • Extended padding over mechanism to protect arms from metal hardware
  • Clever release strap for operating the swing away movement
  • Easy release for users who have limited hand function and need independent use to open the laterals for transfers
Spex Shoulder Strap Guides

Spex Shoulder Strap Guides

Recommended for any harness choice to prevent shoulder straps from falling off shoulders.

The Spex Harness Guides are height adjustable and fit both 1″ and 1.5″ straps. Package includes

a pair of 5mm aluminium strap guides and attachment hardware.

Product Code:

1400-6692-000

Spex Stylo Head Supports

Circle Comfort Contour
Spex-Circle-150-Head-Support-Pad-Client-1-medium-300x300



 Spex-Comfort-250-Head-Support-Pad-Client-1-medium-1-300x300
Unique minimal head support providing direct posterior support for users with good head control.



Available in two sizes: Circle 150 and Circle 250.

 General use head support pad suited for transit and travel.



Available in two sizes: Comfort 250 and Comfort 350.

 Contoured shaped pad for superior occipital and suboccipital support.



Available in two sizes: Contour 250 and Contour 350.
Standard Lateral  Extended Lateral  Adjustable Lateral
One-piece lateral head support solution for moderate head positioning needs.



Available in two sizes: Paediatric and Adult.

 One-piece lateral head support solution for complex head positioning needs.



Available in two sizes: Paediatric and Adult.

 A superior adjustable lateral head control system with individualised ‘tuning’.



Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250.

Custom head supports are available – please contact us for more information.

Spex Medial Thigh Support

Spex Medial Thigh Support

Swing-Down, Standard Pad

Code Size A (mm) B (mm) C (mm) D (mm) E (mm) F(mm)
1162-1501-000 1 60 145 95 40 40 65
1162-1502-000 2 60 155 100 60 50 65
1162-1503-000 3 60 185 105 60 60 75

Swing-Down, Axial-Adjustable Pad

Code Size A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
1162-1601-000 1 70-140 145 95 50-120 40 65
1162-1602-000 2 70-140 155 100 60-140 50 65
1162-1603-000 3 70-160 185 105 60-140 60 75

For medial thigh support customisations please contact us.

Spex Hip Belts

Spex Hip Belts

2 Point

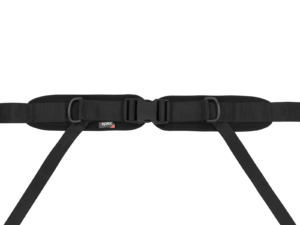

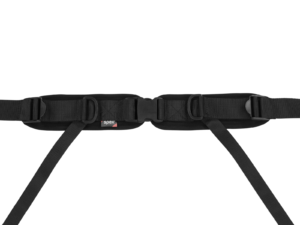

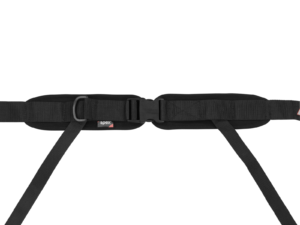

Centre Pull		 2 Point Dual-Centre Pull 4 Point Side Pull 4 Point Centre Pull 4 Point Dual-Centre Pull
User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. Carer operated. Tensions from the rear of the pad pulling towards the centre, for more severe needs. Suits clients with high muscle tone. User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes.

Harnesses

Hip Belt Style X-Small Small Medium Large
  Pad width 30cm Pad width 36cm Pad width 46cm Pad width 56cm
2 Point Padded Centre Pull 1405-6210-XXX 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX
2 Point Padded Dual Centre Pull 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX
4 Point Padded Centre Pull 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX
4 Point Padded Dual Centre Pull 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX
4 Point Padded Side Pull 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX 1405-6211-XXX

The last three digits of the code refer to the buckle type. See below table for buckle options.

Buckle Options

Side Release Centre Release Anti-Escape Pen Popper Easy Release Latch
-027 -028 -026 -025 -023
Simple and easy to click together and undo. Robust design to keep the user positioned and safe. Prevent users with challenging behaviour from releasing the buckle. Requires a pen to prod the buckle mechanism to release open. Simply lift the metal buckle flap and slide the buckle apart.

Note: These harnesses are a positioning device only. Do not use as a safety restraint in vehicles.
