Spex Hip Flexion Contour Universal Positioning Base

Enquire now
Spex-Universal-Positioning-Base-Hip-Flexion-Exploded-1-medium-1024x1024

Spex Hip Flexion Contour Universal Positioning Base

Spex Hip Flexion Contour Universal Positioning Base

Enhanced positioning outcomes underneath air and gel cushions

Traditionally, it has been difficult to meet clinical requirements for wheelchair users with pelvic and postural requirements when seated on pressure care cushions.

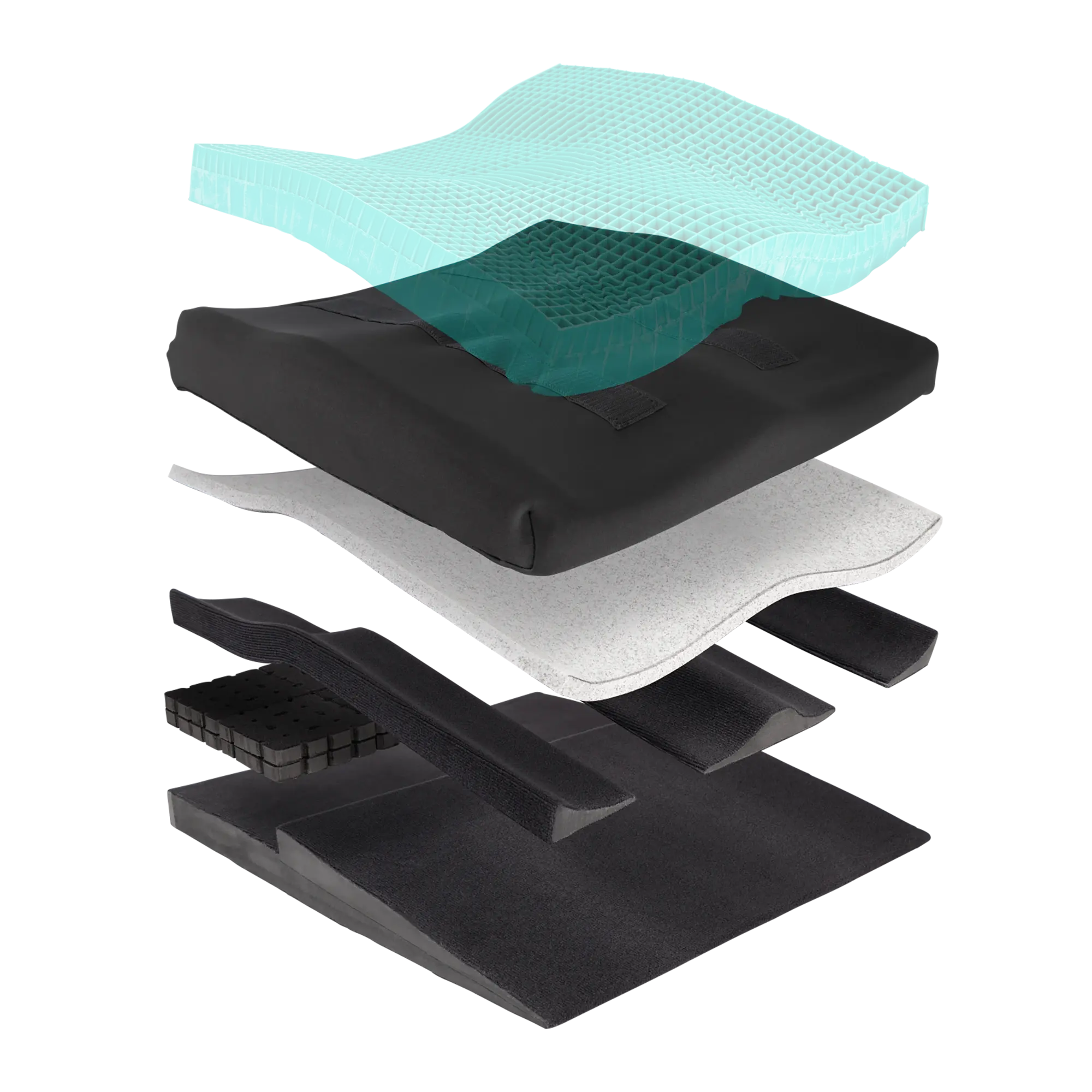

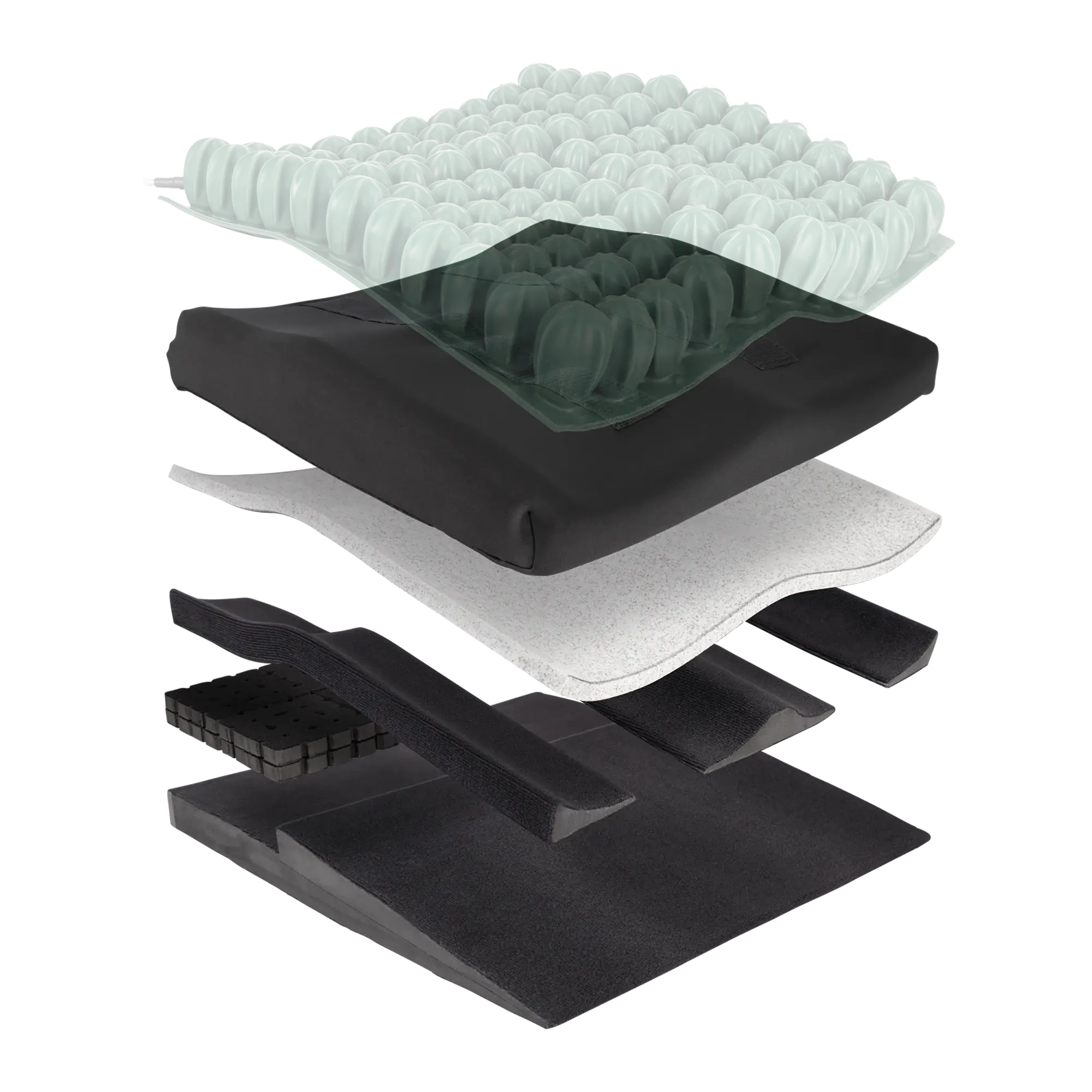

The Universal Positioning Base assists with these challenges by insertion under the air/gel cushion to configure the base system as per the user’s clinical assessment, to achieve a functional outcome for the user whilst not compromising with pressure care properties.

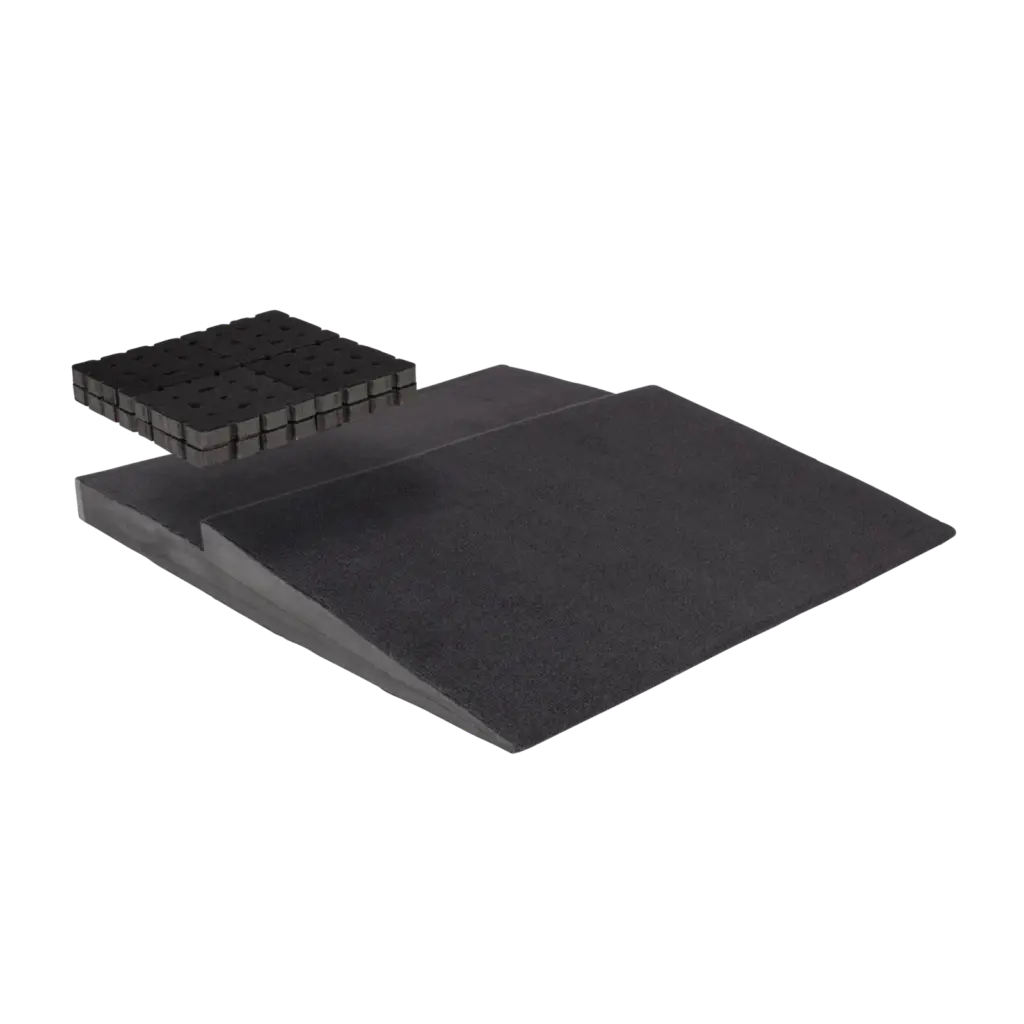

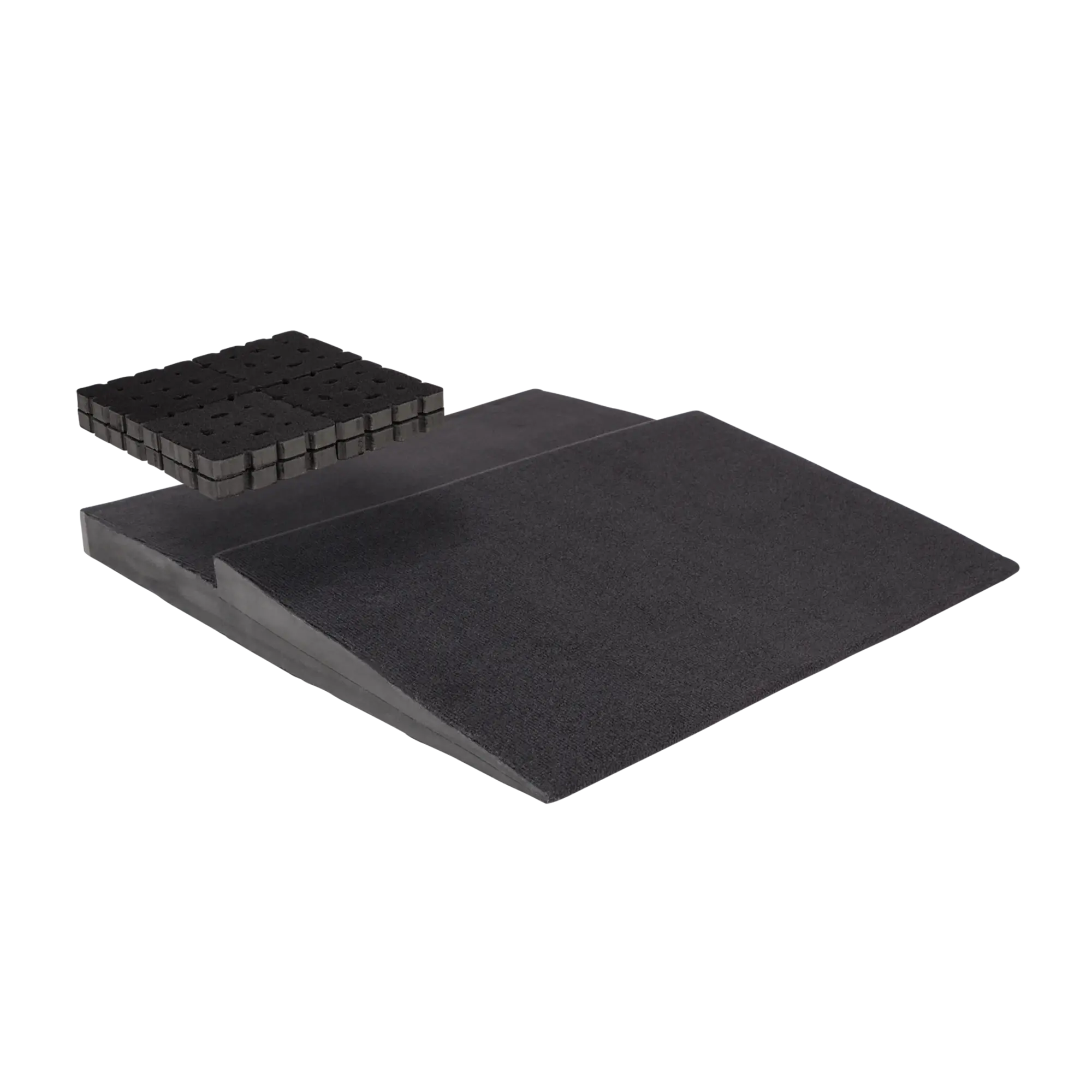

The Hip Flexion Contour Universal Positioning Base comes with 1x hip flexion contour base and a pack of 8 contouring obliquity pads.

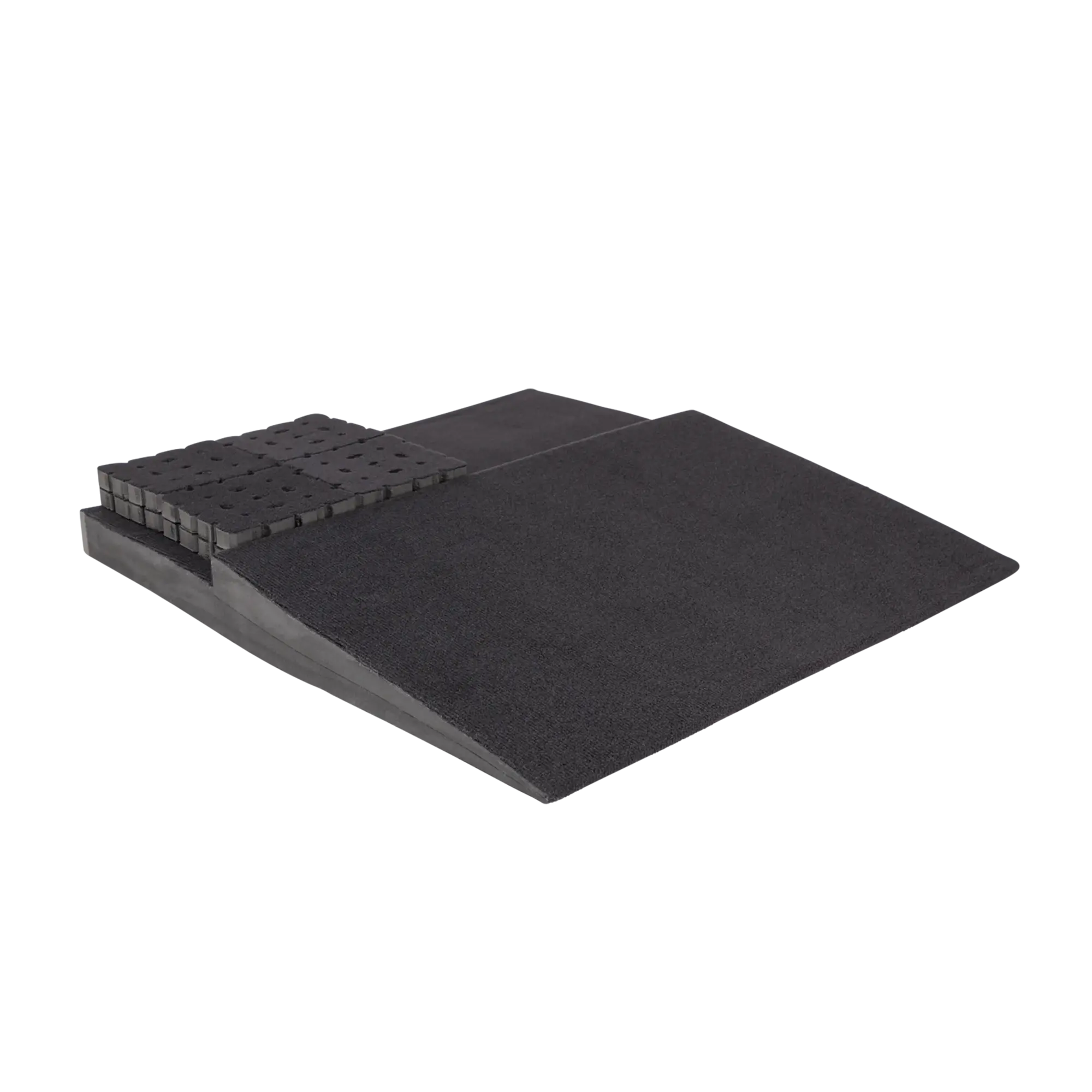

This is an ideal solution for users that have limited hip flexion and require the front of their cushion to be “ramped” downward slightly. The angle is fixed at 10°, however this can be slightly reduced or increased with the use of the Velcro contour pads and Tessellated Shape System pads. Moderate asymmetrical hip flexion limitations can also be accommodated by adding the Velcro contour pads under one of the user’s thighs to raise it up slightly in comparison to the other thigh. Similar to the Ischial Contour Universal Positioning Base, this also features a pre-ischial ledge to support the user’s pelvis and prevent them from sliding forward on the cushion.

Functional benefits

Spex-Universal-Positioning-Base-Velcro-Interface-medium

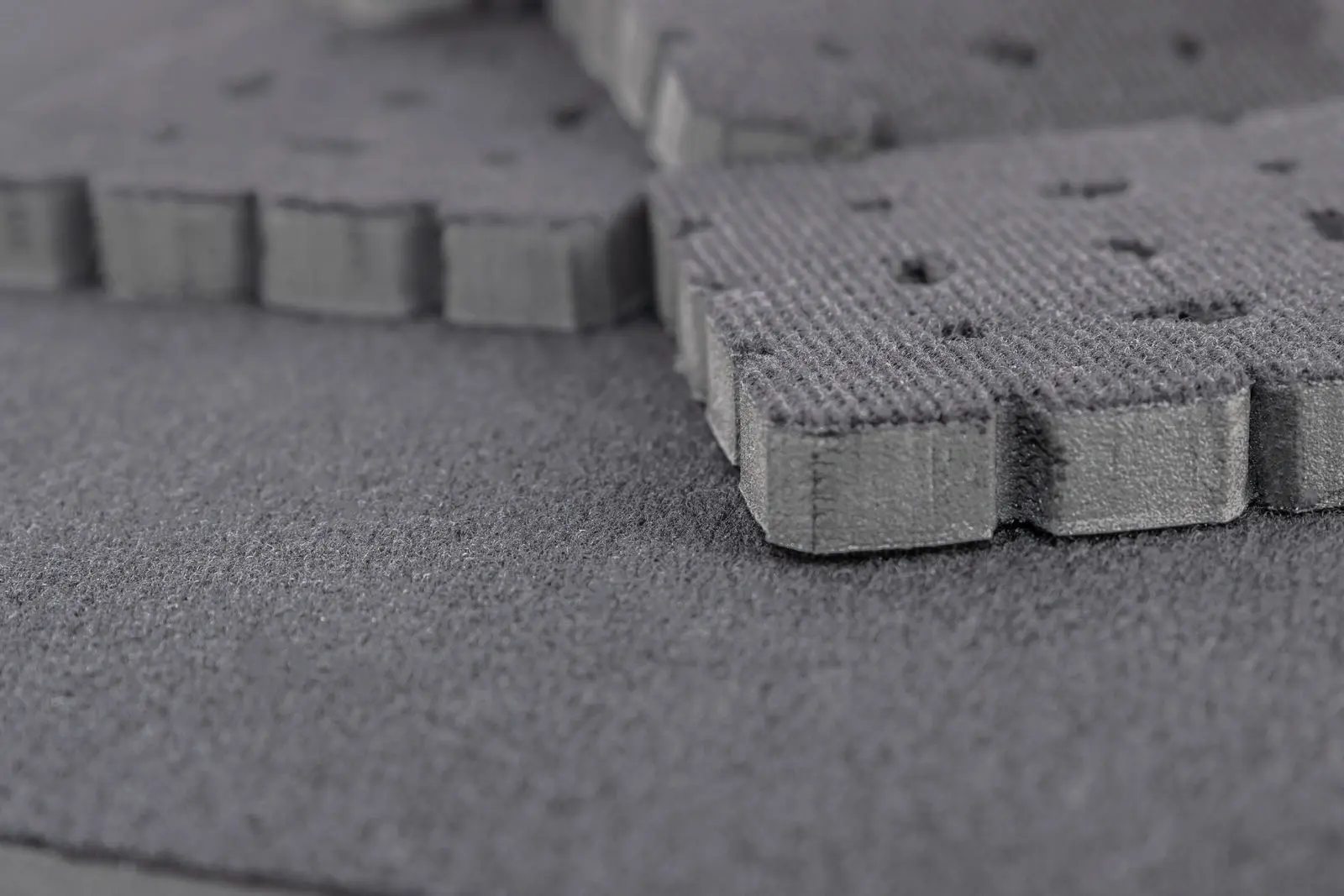

Velcro-sensitive Interface

The top and bottom surfaces of the Universal Positioning Base components are Velcro-sensitive, ensuring that they do not move over time, and a rigid positioning surface is established.

Spex-Universal-Positioning-Base-Trim-and-Cut-2-medium

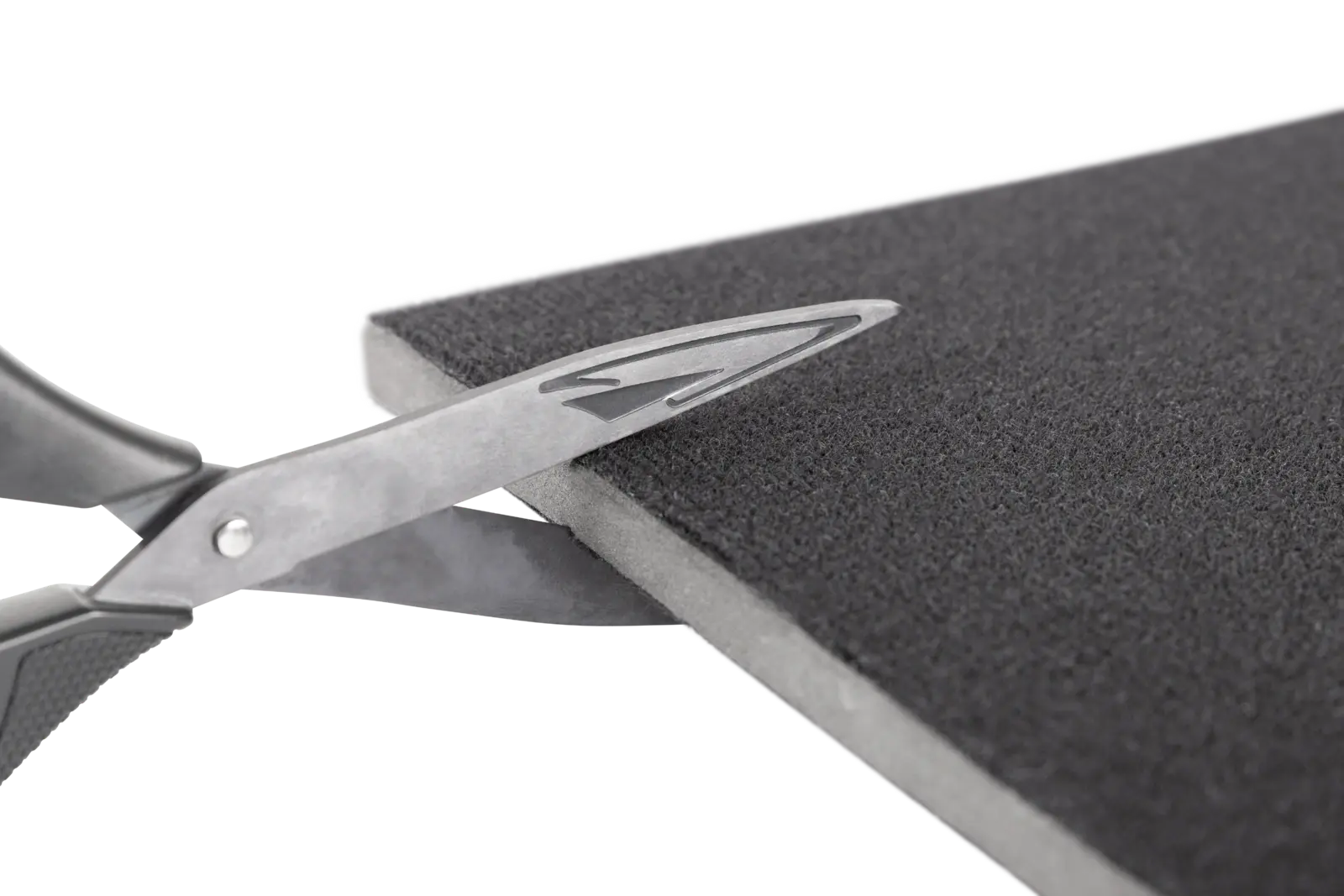

Trim and Cut!

The components are designed with a high density foam that maintains its rigidity, whilst also being easy to cut and trim if adjustments are needed.

Spex-Universal-Positioning-Base-Obliquity-Pads-medium

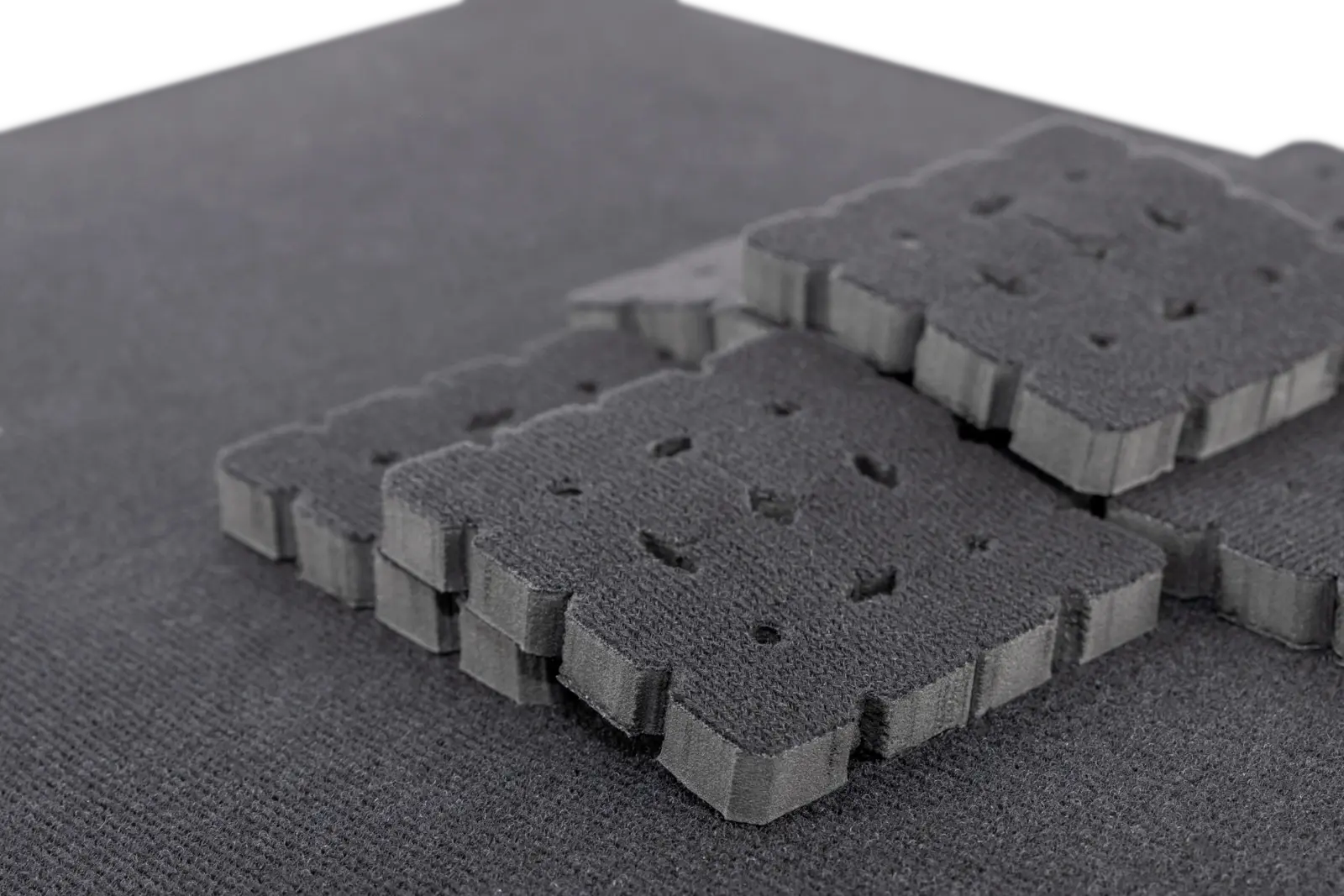

Modular System for Changing Needs

With it's Velcro-sensitive interface, modularity of the separate components, and availability of contour wedge accessories, the Universal Positioning Bases are the ideal solution to accommodate changing needs of the user over time.

Specifications

The Hip Flexion Contour Universal Positioning Base comes standard with…

  • 1x Hip Flexion Contour Base
  • 8x Contouring/Obliquity Pads
Hip Flexion UPB Cushion Width Hip Flexion UPB Cushion Length Hip Flexion UPB Cushion Item Code
14″ 14″ 1113-03-1414
14″ 16″ 1113-03-1416
14″ 18″ 1113-03-1418
16″ 16″ 1113-03-1616
16″ 18″ 1113-03-1618
16″ 20″ 1113-03-1620
18″ 18″ 1113-03-1818
18″ 20″ 1113-03-1820
20″ 18″ 1113-03-2018
20″ 20″ 1113-03-2020

FAQ

Can I sit directly on the Universal Positioning Base?

No, the Universal Positioning Bases must be used underneath a pressure care cushion, such as an air or gel cushion option. They are designed to be used in conjunction with pressure care cushions, to meet postural requirements.

The Universal Positioning Base should be prescribed by a qualified clinician and care needs to be taken that the configuration and position of the UPB components does not jeopardise the user’s pressure requirements.

Resources

Spex Universal Positioning Base Script Form

0.19 MB

Spex UPB Flyer

0.40 MB

Spex UPB Script Form

0.60 MB

Accessories

Spex-Universal-Positioning-Base-Contour-Kit-medium-1-300x300

Spex Universal Positioning Base Contour Kit

Spex-Universal-Positioning-Base-Cover-Exploded-medium-300x300

Spex Universal Positioning Base Pressure-Relieving Neoprene Cover

Wedge-asymmetric-5o-cushion-4.8Hx55Wx50Dcm

Cushion Wedge – 5 Degrees Asymmetric

Spex-Universal-Positioning-Base-Contour-Kit-medium-1-300x300

Spex Universal Positioning Base Contour Kit

The Contour Kit for Spex Universal Positioning Bases includes 2x lateral thigh contour wedges and 1x medial thigh contour wedge. It is compatible with all three UPB options. It is available in 4 standard length options, and there is a custom length option available as well.

Here are images of the Contour Kit in use with each of the UPB options:

Contour Kit shown with the
Spacer UPB

Spex-Universal-Positioning-Base-Spacer-10-medium-1-300x300

Contour Kit shown with the Ischial
Contour UPB

Spex-Universal-Positioning-Base-Ischial-7-medium-300x300

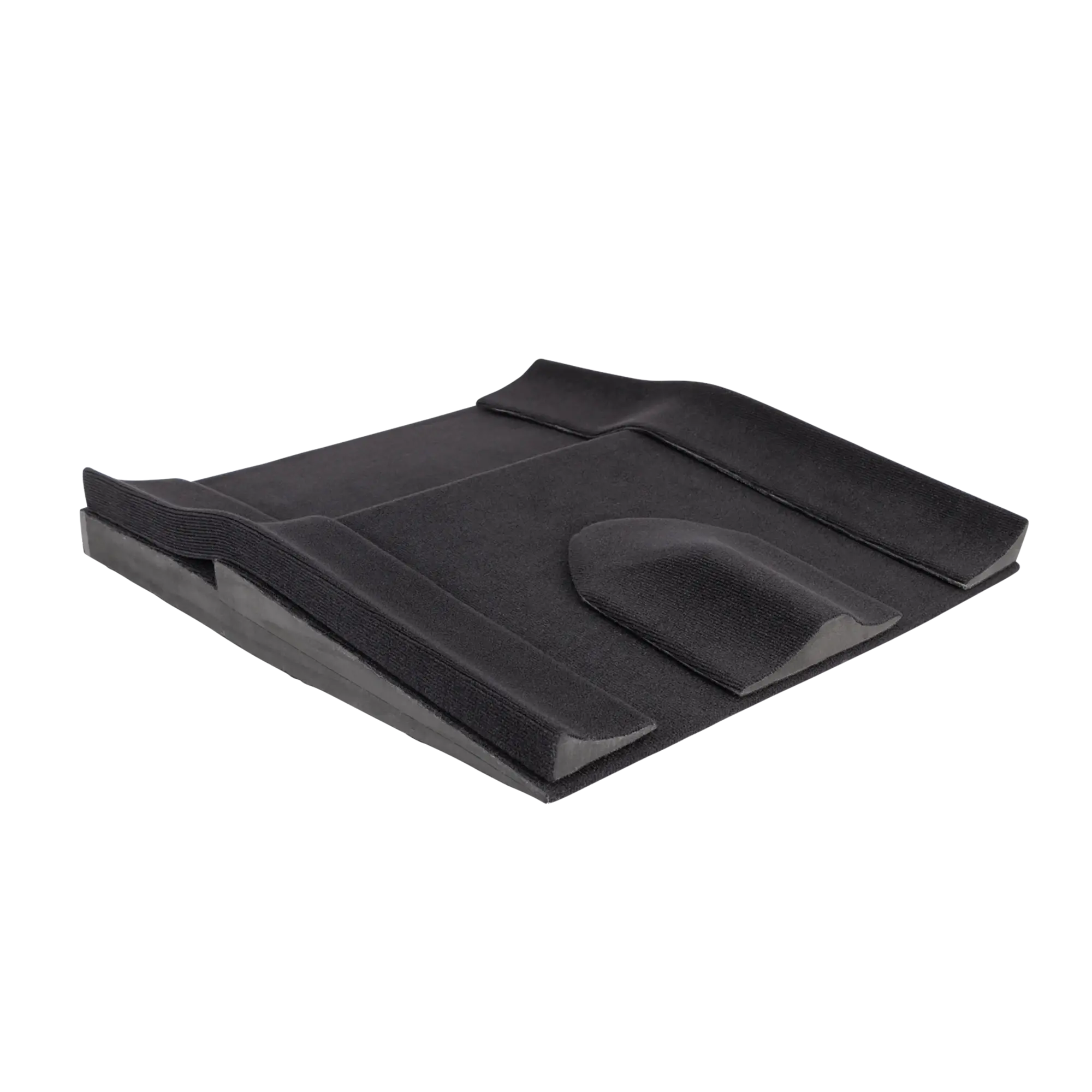

Contour Kit shown with the Hip
Flexion Contour UPB

Spex-Universal-Positioning-Base-Hip-Flexion-2-medium-300x300
Length Code
14″ long 1113-05-0014
16″ long 1113-05-0016
18″ long 1113-05-0018
20″ long 1113-05-0020
Custom length 1113-05-0029

Spex-Universal-Positioning-Base-Cover-Exploded-medium-300x300

Spex Universal Positioning Base Pressure-Relieving Neoprene Cover

The Pressure-Relieving Neoprene Cover for the Spex Universal Positioning Bases includes 1x neoprene outer cover and 1x pressure-relieving foam overlay. The foam overlay goes inside the neoprene outer cover and is placed on top of the UPB components. The cover fits all three UPB styles and is available in 9 standard sizes, as well as a custom size option:

Neoprene outer cover

Spex-Universal-Positioning-Base-Cover-1-medium-300x300

Pressure-relieving overlay

Spex-Universal-Positioning-Base-Cover-2-medium-300x300
UPB Length UPB Width Code
14″ 14″ 1113-07-1414
16″ 1113-07-1416
18″ 1113-07-1418
16″ 16″ 1113-07-1616
18″ 1113-07-1618
20″ 1113-07-1620
18″ 18″ 1113-07-1818
20″ 1113-07-1820
20″ 18″ 1113-07-2018
20″ 1113-07-2020
Custom Size 1113-07-2929
Wedge-asymmetric-5o-cushion-4.8Hx55Wx50Dcm

Cushion Wedge – 5 Degrees Asymmetric

Product Code: 1209-2724-300

Dimensions: 4.8H x 55W x 50D(cm)
