Spex Fixed-Angle Wheelchair Arm Supports

Enquire now

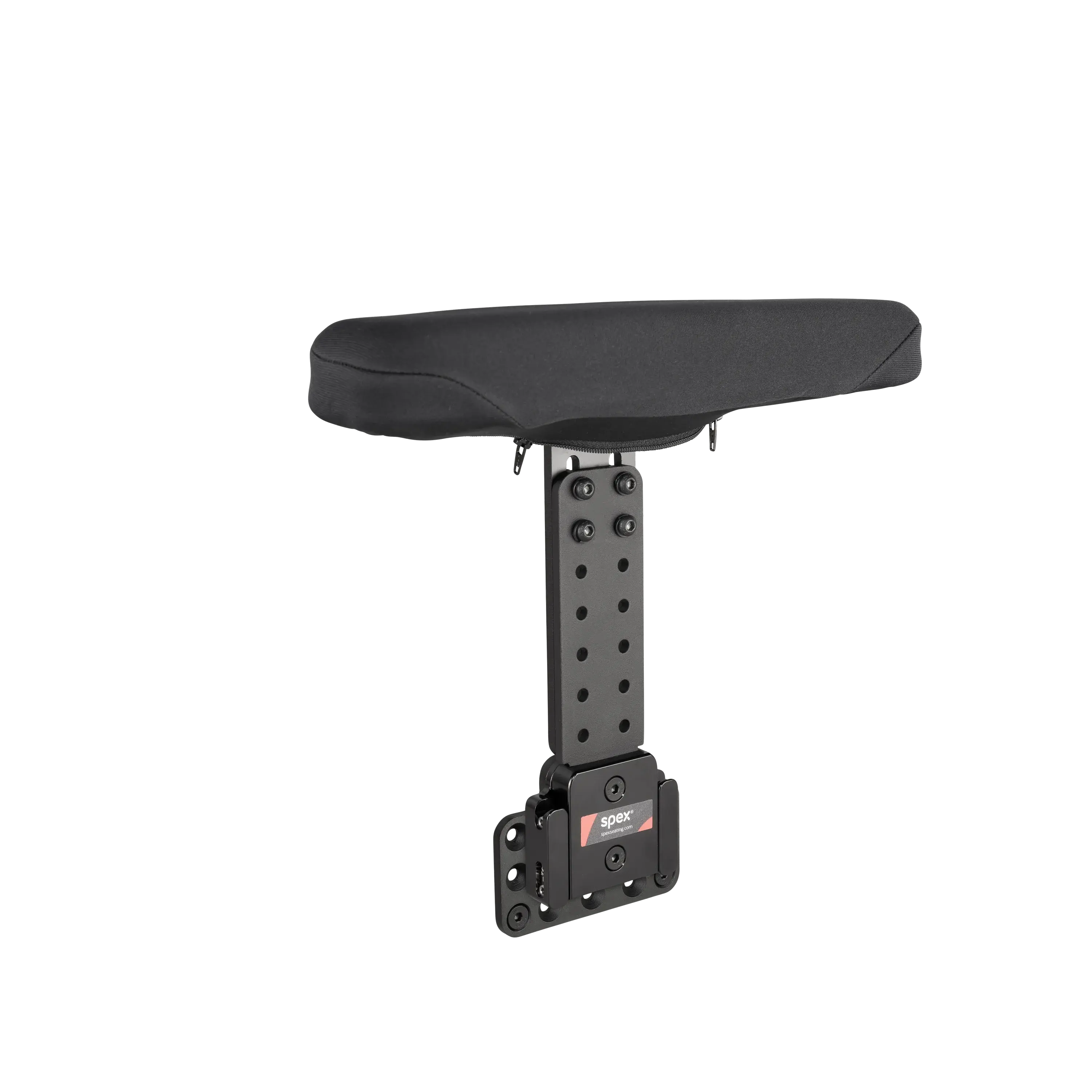

Spex-Fixed-Arm-Support-SD-Rail-Mount-1xx

Spex Fixed-Angle Wheelchair Arm Supports

Fixed-Angle
Arm Supports

Spex Fixed-Angle Arm Supports provide functional forearm and upper extremity support, and whilst the angle remains fixed, the height of the arm support can be adjusted to ensure the user has the precise support they require.

Like all Spex systems, the Fixed-Angle Arm Support has a modular approach, creating flexibility and takes into consideration the individual and unique needs of different clients. Available in either Quick-Release or Swing-Down, the Spex arm support system ensures that the user has easy access in and out of the chair for transfers.

Spex is designed to mount on almost any chair and seating system, and the arm support systems are no different! The Fixed-Angle Arm Supports are available with either a Seat Base Mount to mount directly to the seat base of the wheelchair, or with a Rail Mount to attach directly to the chair’s seat rail.

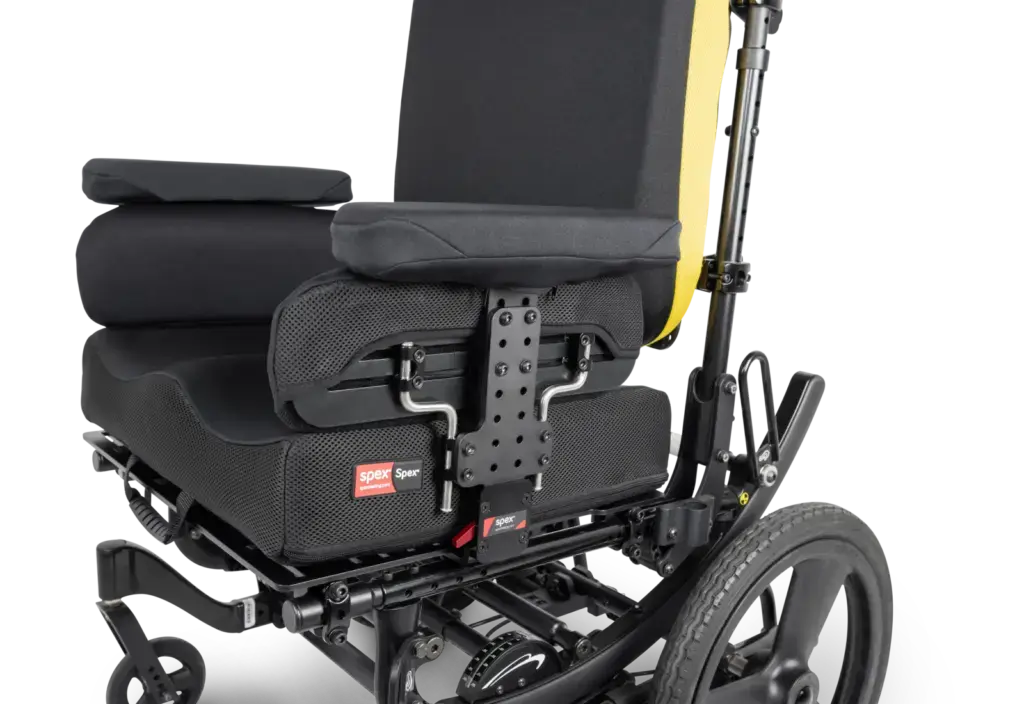

Spex-Fixed-Arm-Axial-Thigh-Support-Combo-QR-Pan-Mount-Wheelchair-1-medium-1024x704

Couple your arm support with a Spex Lateral Thigh Support! We offer Arm and Thigh Support Combos where the arm and thigh support share the same mounting mechanism for a sleek and tidy “all-in-one” solution. These are available in all the same mechanism options (Quick-Release or Swing-Down) and mounting hardware (Seat Base or Seat Rail mounts).

LEARN MORE

Medifab is pleased to provide the most comprehensive special purpose car seat we’ve every introduced for children and teenagers, providing various kinds of extension accessories and multi-adjustable features to allow longer use by the child and to suit the wide spectrum of children’s needs.

The Carrot 3000 Car Seat is one of the safest child seats in the world, catering for safety and the importance of keeping the child in a safe and supported posture for travel and was was designed, engineered and built to provide optimal positioning & safety for children with insufficient head, trunk, and pelvic stability.

Functional Benefits

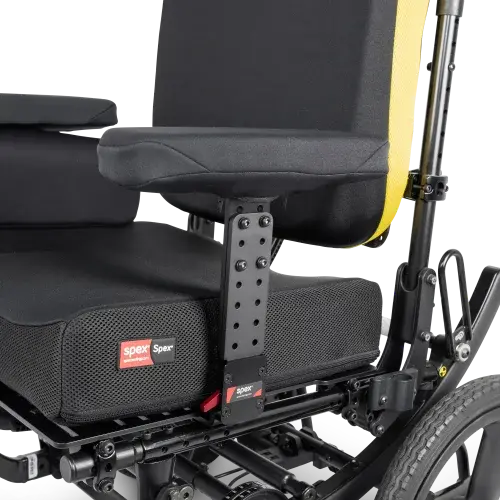

Spex-Fixed-Arm-Support-Strong-and-Rigid-Support-Squarexxxxx (1)

Rigid Support for Optimum Trunk Alignment

By having arm supports in the correct position and bearing normal weight on the arm pads, will provide better trunk alignment and support, stabilise the shoulder girdle, and improve overall posture. Arm supports also assist pelvic and trunk stability to reduce or redirect forces that can lead to pressure sores.

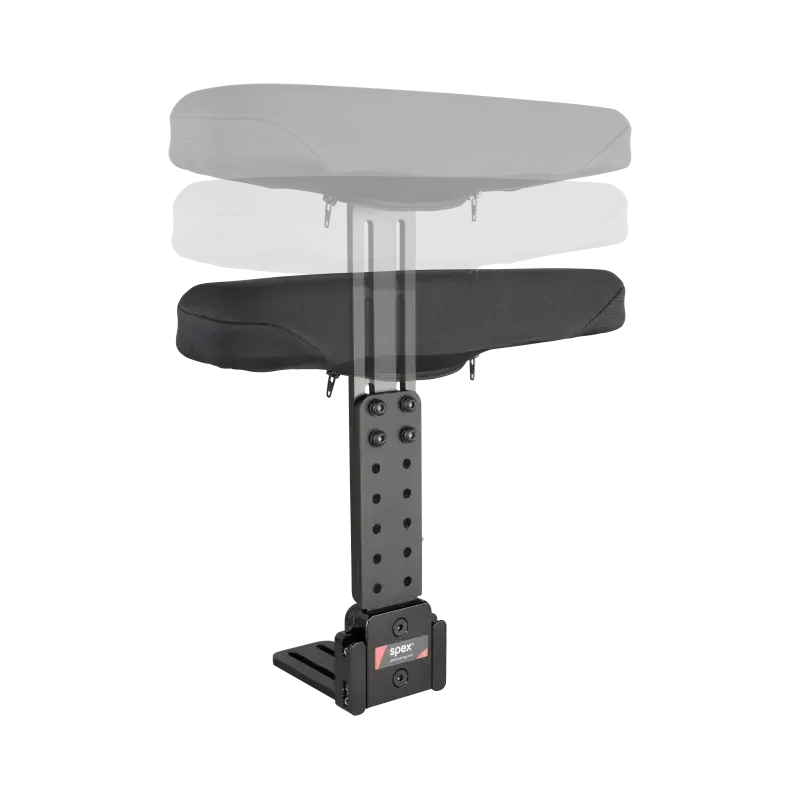

Spex-Fixed-Arm-Support-Height-Adjustmentxx

The Perfect Position!

Accurate arm placement of the user is made possible through the stepless height range.

Spex-Fixed-Arm-Axial-Thigh-Support-Combo-QR-Rail-Mount-1xx

Couple with a Spex Lateral Thigh Support!

We offer Arm and Thigh Support Combos where the arm and thigh support share the same mounting mechanism for a sleek and tidy "all-in-one" solution. These are available in all the same mechanism options (Quick-Release or Swing-Down) and mounting hardware (Seat Base or Seat Rail mounts).

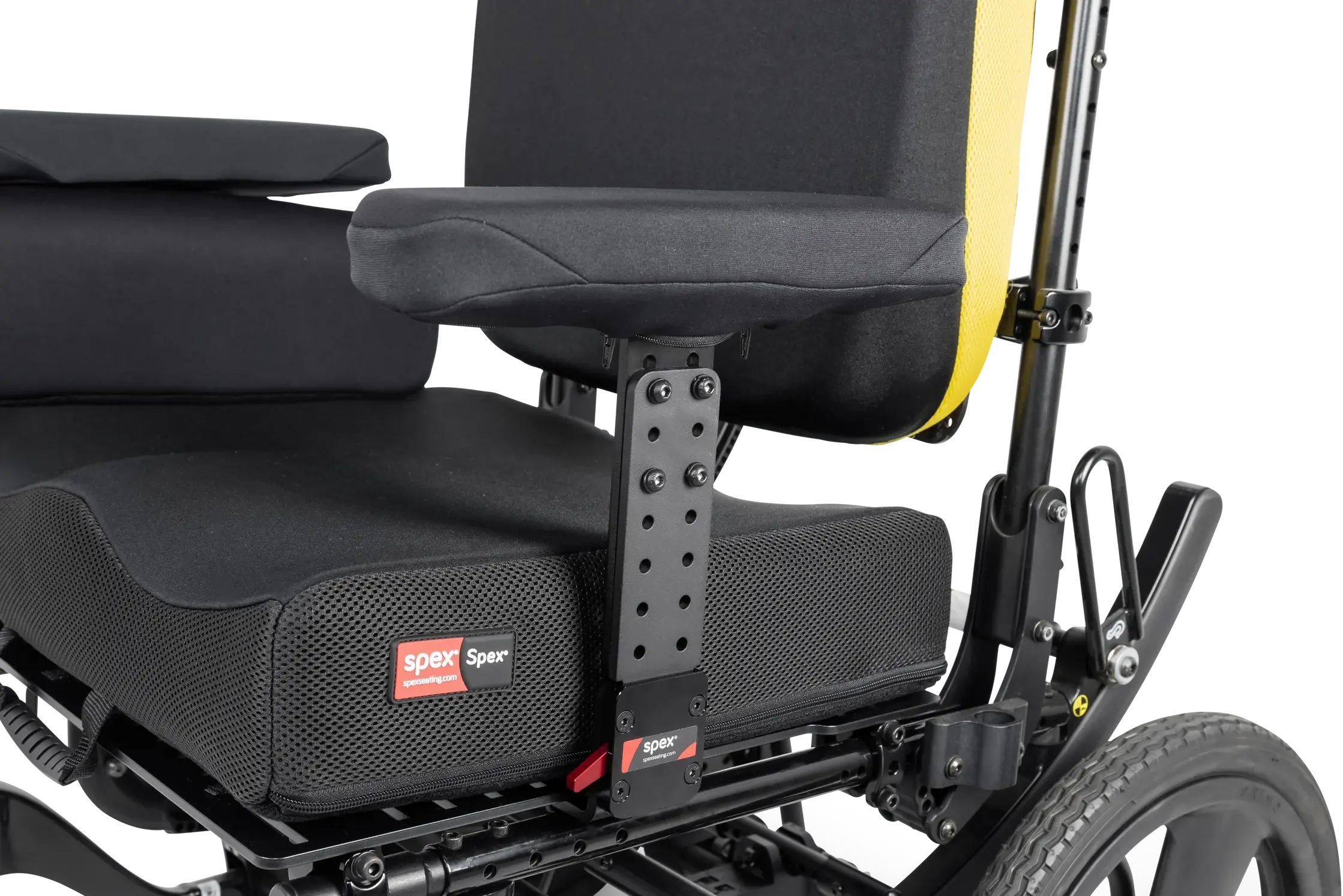

spex_fixed_arm_support_qr_pan_mount_wheelchair_1-medium_0

A Hardware Option for Every Situation

A variety of different hardware options allow specific functions tailored for the user. It enables precise positioning of the arm support pads to ensure the user gains the correct positioning for the most function.

Spex-Comfi-Arm-Support-Pad-Removable-Coverx

Pressure-Relieving Comfi Arm Support Pad

The Comfi Arm Support Pad provides superior comfort for the user through its combination of both its rigid wooden backing board and firmer foam layer, and a pressure-reducing foam overlay. Covered with a premium neoprene removable cover, ensures the user's arms are always comfortable!

Spex-Fixed-Arm-Support-Strong-and-Rigid-Supportxx

Easy Attachment of Accessories

With the arm support hardware, it is easy to attach accessories and add-ons such as powerchair drive controllers.

Spex-Arm-Support-With-Tray-Crop-small_0

Combine with a Tray Table for Increased Function

In combination with a tray table, arm supports assist and improve upper body stability that is essential in accomplishing day-to-day tasks.

Measurements and Specifications

Height Range
  • Height Range
  • Hardware Codes
  • Comfi Arm Support Pad Codes

These measurements are taken from the top of the seat base to the top of the support pad, including the 40mm thick support pad.

  Min Max
Adult 285mm 390mm
Paediatric 230mm 290mm

seat-pan-mount_0_1-1-300x259

Angle-Adjust Arm Support: Seat Pan Codes (Horizontal mounting to the wheelchair seat pan)

  Quick-Release Hardware Swing-Down Hardware
Fixed-Angle 1156-0100-110 1156-0100-120
Paediatric Fixed-Angle 1156-0200-110 1156-0200-120

Angle-Adjust Arm Support: Seat Rail Hardware Options (Vertical mounting to the wheelchair seat rail)

seat-rail-mount_0_1-300x259

  Quick-Release Hardware Swing-Down Hardware
Fixed-Angle 1156-0100-210 1156-0100-220
Paediatric Fixed-Angle 1156-0200-210 1156-0200-220

Arm Support Pads Only (please select Hardware also)

Code SIze Type Width Length Thickness
1156-5811-410 Small Slim 40mm 250mm 40mm
1156-5812-410 Medium Slim 50mm 300mm 40mm
1156-5813-410 Large Slim 60mm 350mm 40mm
1156-5821-410 Small Wide 70mm 250mm 40mm
1156-5822-410 Medium Wide 80mm 300mm 40mm
1156-5823-410 Large Wide 90mm 350mm 40mm

Description

Clinical

  • By having arm supports in the correct position, bearing normal weight on the arm pads will provide better trunk alignment and support which improves posture
  • Assist pelvic and trunk stability to reduce or redirect forces that lead to pressure sores
  • Correct shoulder gridle stabilising
  • In combination with tray table they assist to improve upper body stability essential to accomplishing tasks

Functional

  • Spex hardware enables precise positioning of the arm support pads to ensure the user gains the correct positioning for function
  • A variety of different hardware options allow specific functions tailored for the user
  • Powered chair drive controllers can be easily installed
  • Gain accurate width setting and infinite height setting for improved arm placement

Resources

Spex Arm Thigh Supports Flyer

0.33 MB

User Manuals

Spex Arm/Thigh Supports User Manual

0.77 MB
