Spex Angle-Adjust Wheelchair Arm Supports
Spex Angle-Adjust Wheelchair Arm Supports
Functional Benefits

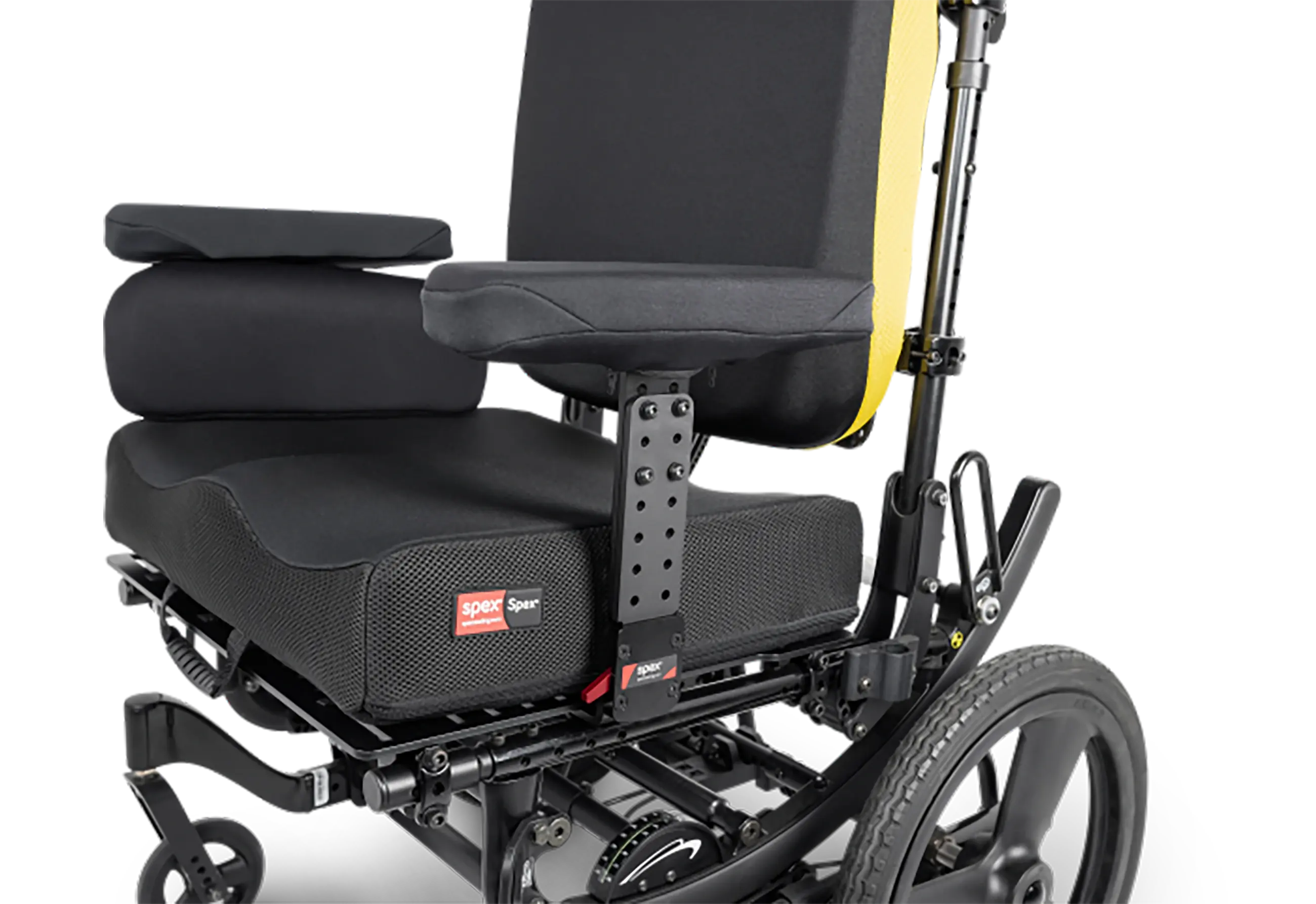

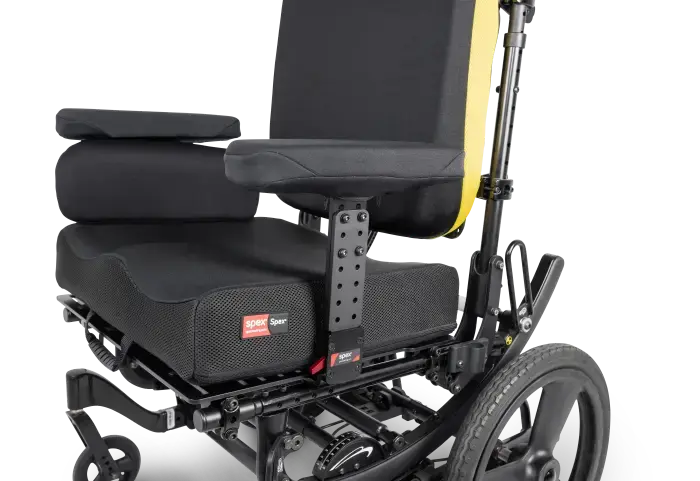

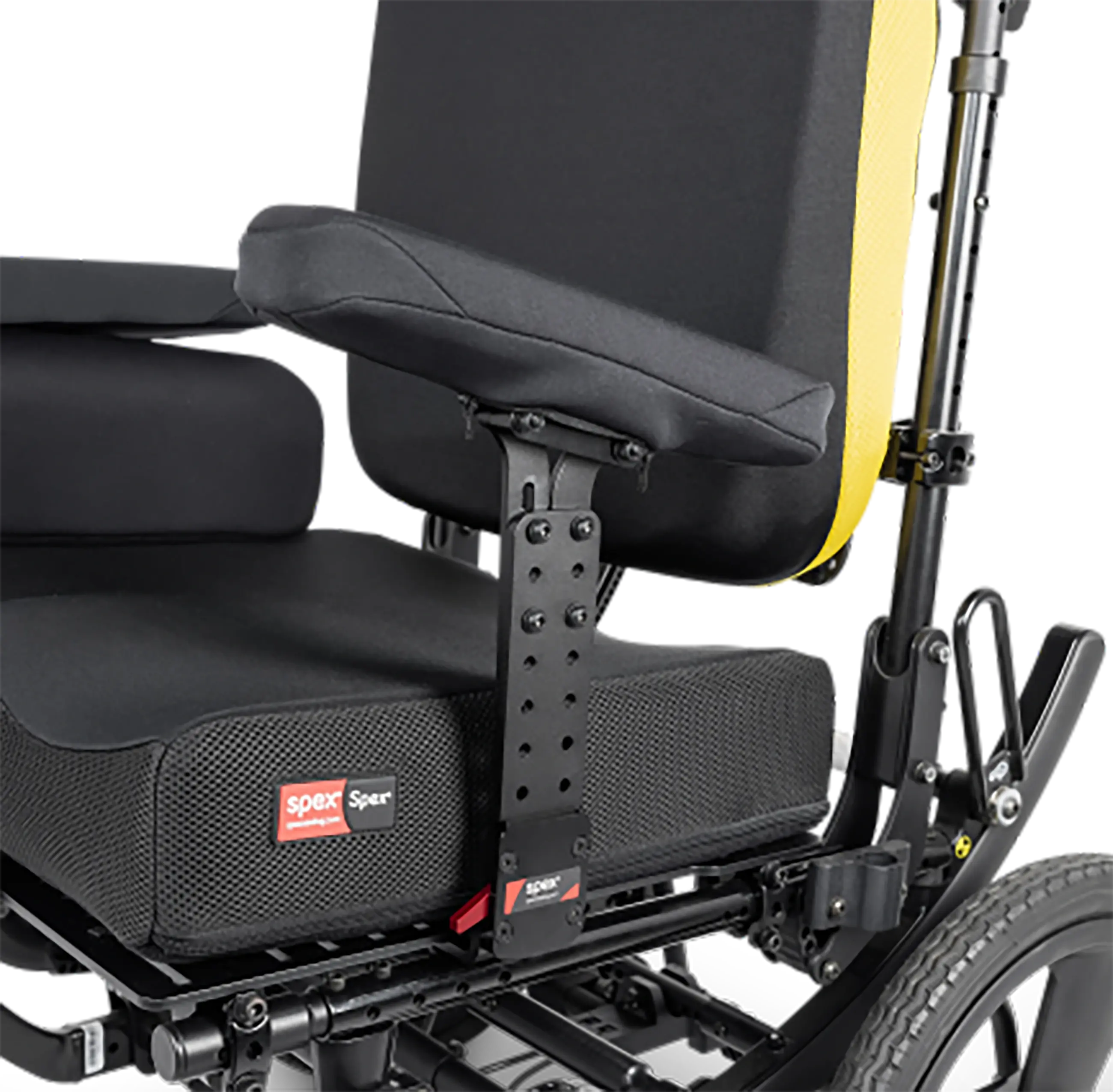

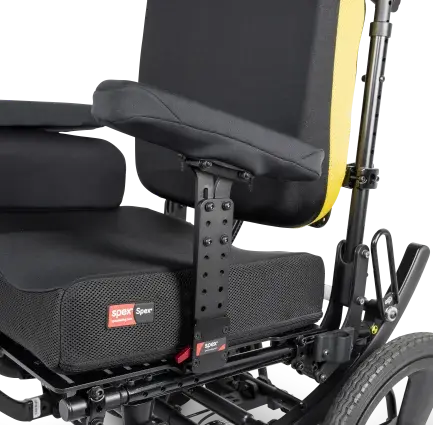

Rigid Support for Optimum Trunk Alignment
By having arm supports in the correct position and bearing normal weight on the arm pads, will provide better trunk alignment and support, stabilise the shoulder girdle, and improve overall posture. Arm supports also assist pelvic and trunk stability to reduce or redirect forces that can lead to pressure sores.
The Perfect Position!

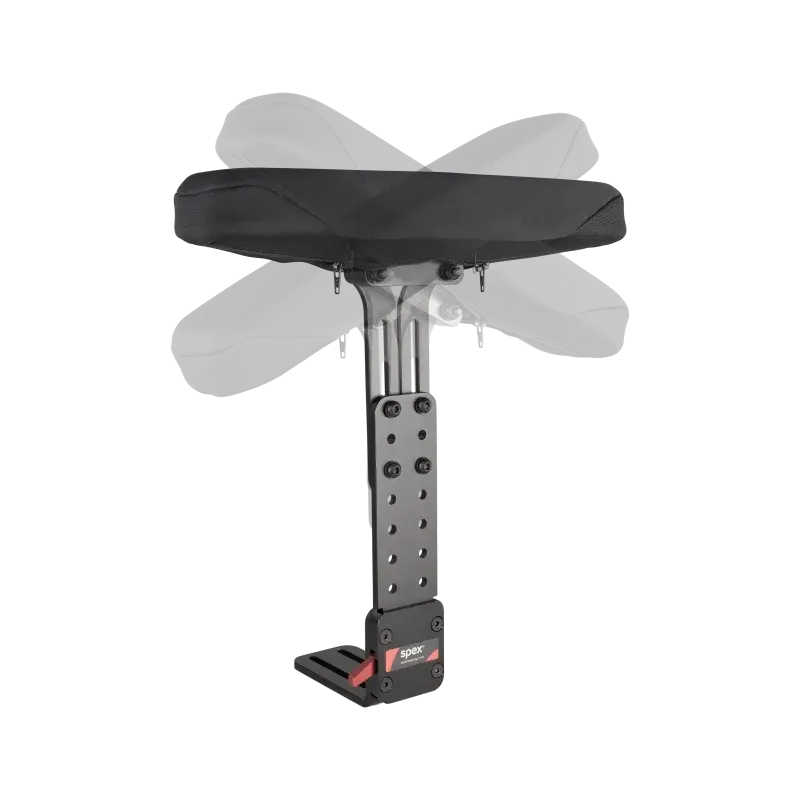

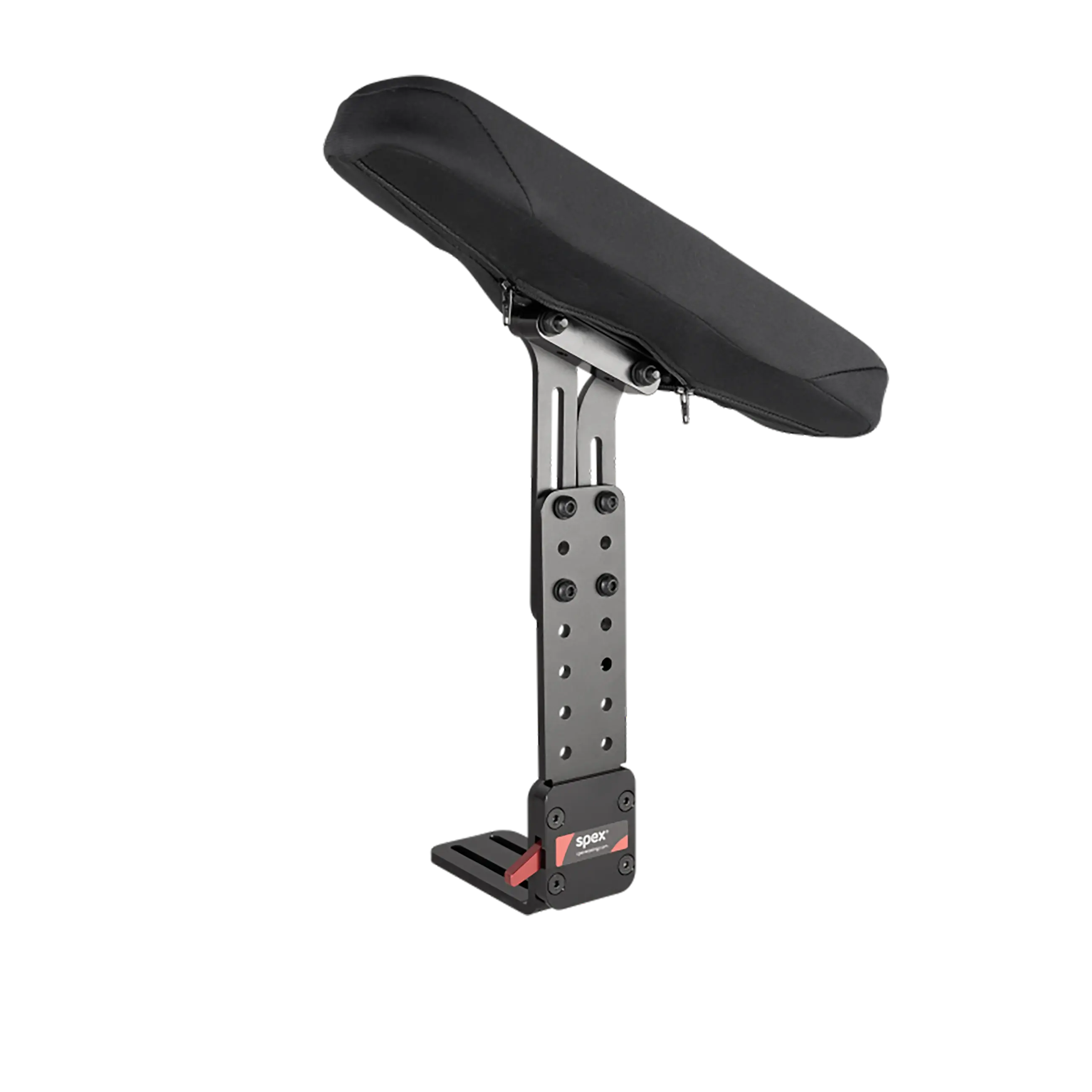

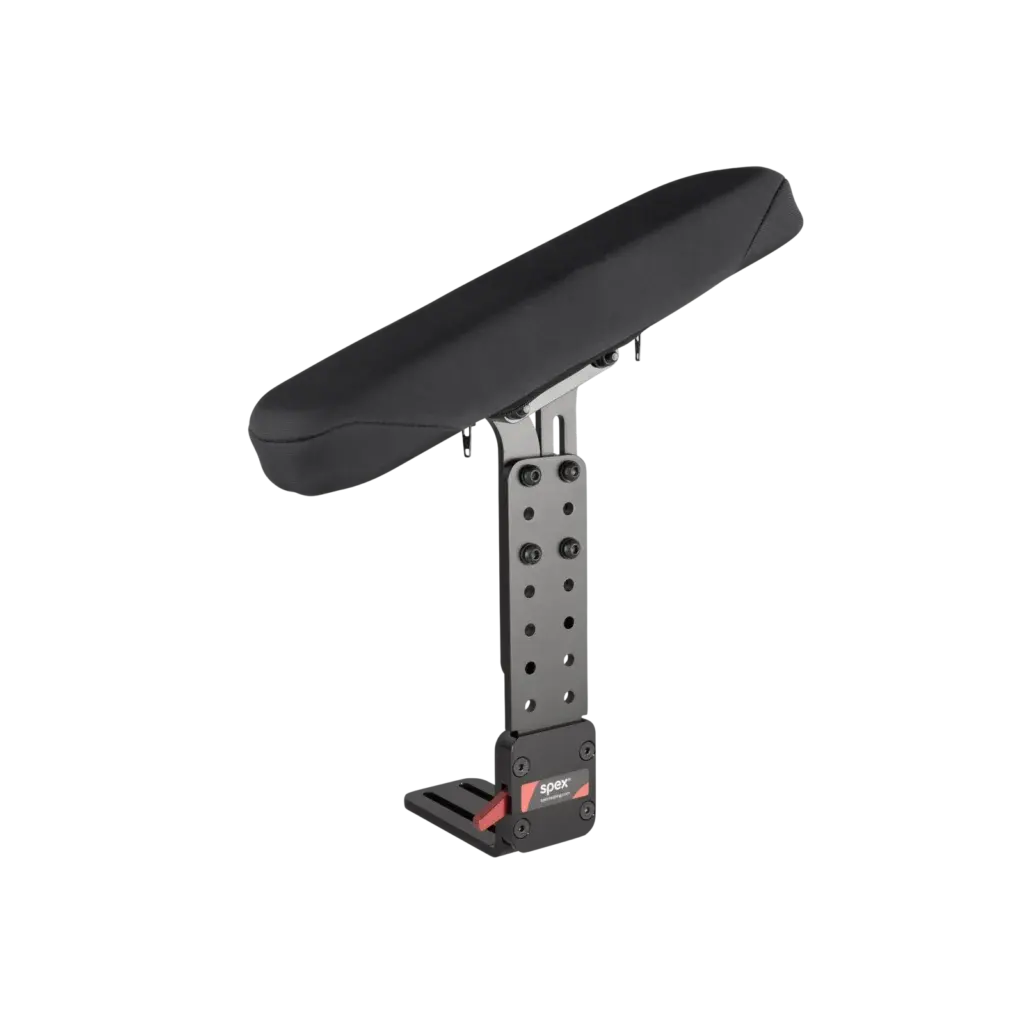

Accurate arm placement of the user is made possible through the stepless angle and height adjustment range. A maximum of 30° of angle can be achieved.

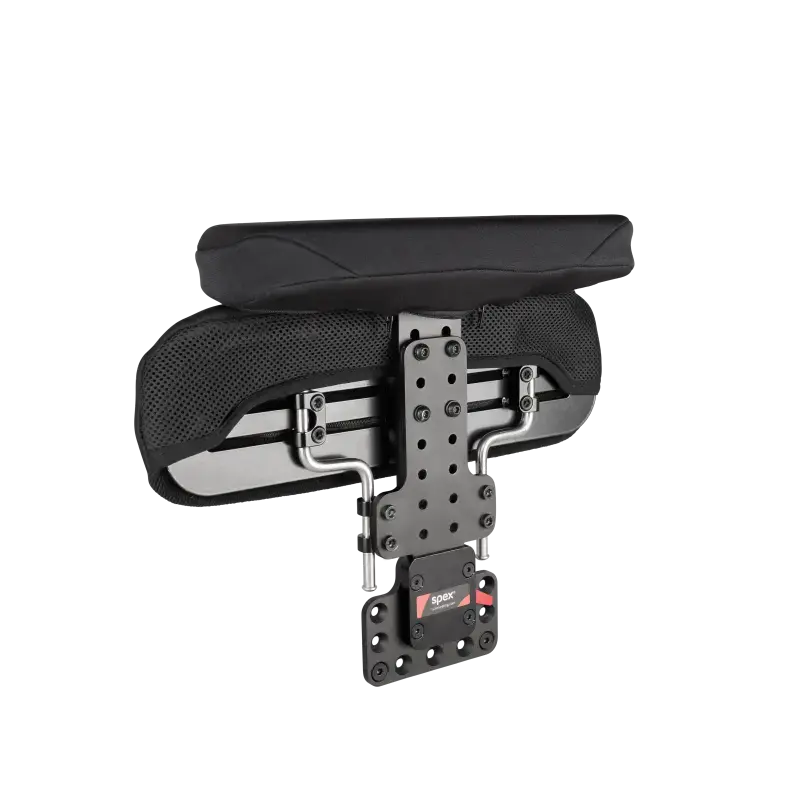

Couple with a Spex Lateral Thigh Support!
We offer Arm and Thigh Support Combos where the arm and thigh support share the same mounting mechanism for a sleek and tidy "all-in-one" solution. These are available in all the same mechanism options (Quick-Release or Swing-Down) and mounting hardware (Seat Base or Seat Rail mounts).

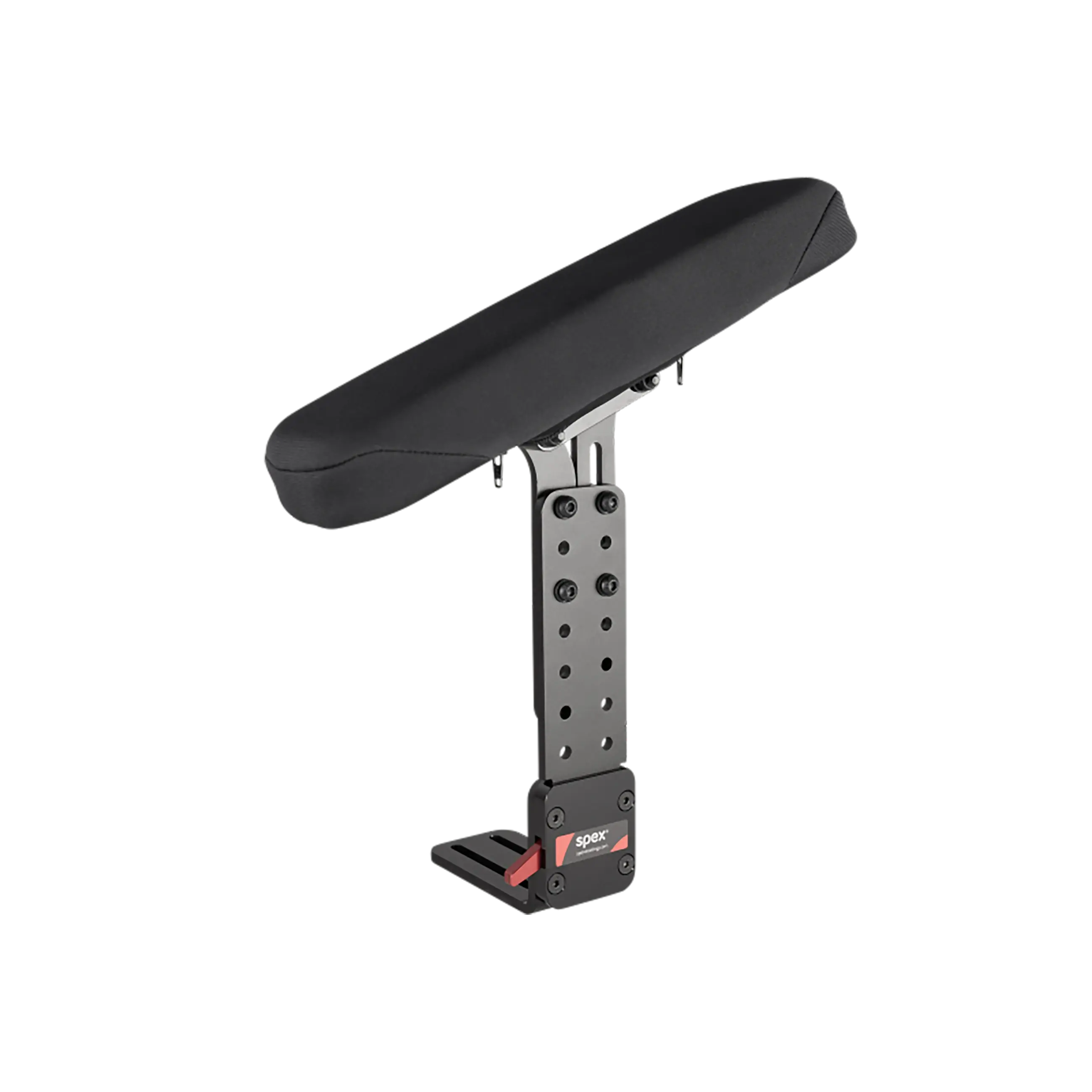

A Hardware Option for Every Situation
A variety of different hardware options allow specific functions tailored for the user. It enables precise positioning of the arm support pads to ensure the user gains the correct positioning for the most function.

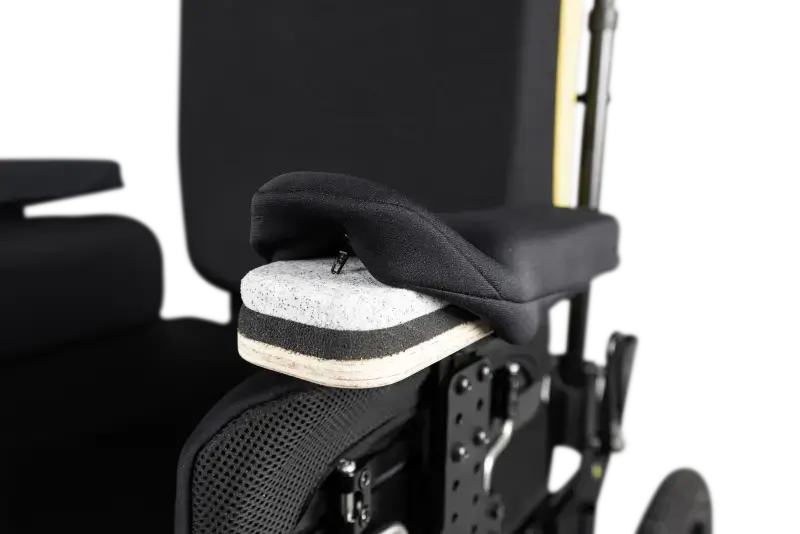

Pressure-Relieving Comfi Arm Support Pad
The Comfi Arm Support Pad provides superior comfort for the user through its combination of both its rigid wooden backing board and firmer foam layer, and a pressure-reducing foam overlay. Covered with a premium neoprene removable cover, ensures the user's arms are always comfortable!
Easy Attachment of Accessories
With the arm support hardware, it is easy to attach accessories and add-ons such as powerchair drive controllers.
Combine with a Tray Table for Increased Function
In combination with a tray table, arm supports assist and improve upper body stability that is essential in accomplishing day-to-day tasks.
Measurements and Specifications
- Height Range
- Hardware Codes
- Comfi Arm Support Pad Codes
These measurements are taken from the top of the seat base to the top of the support pad, including the 40mm thick support pad.
| Min | 290mm |
|---|---|
| Max | 365mm |

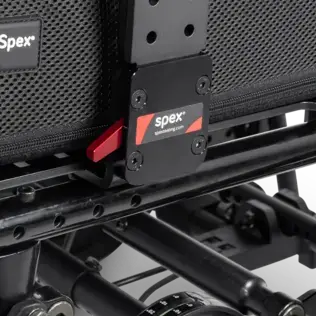

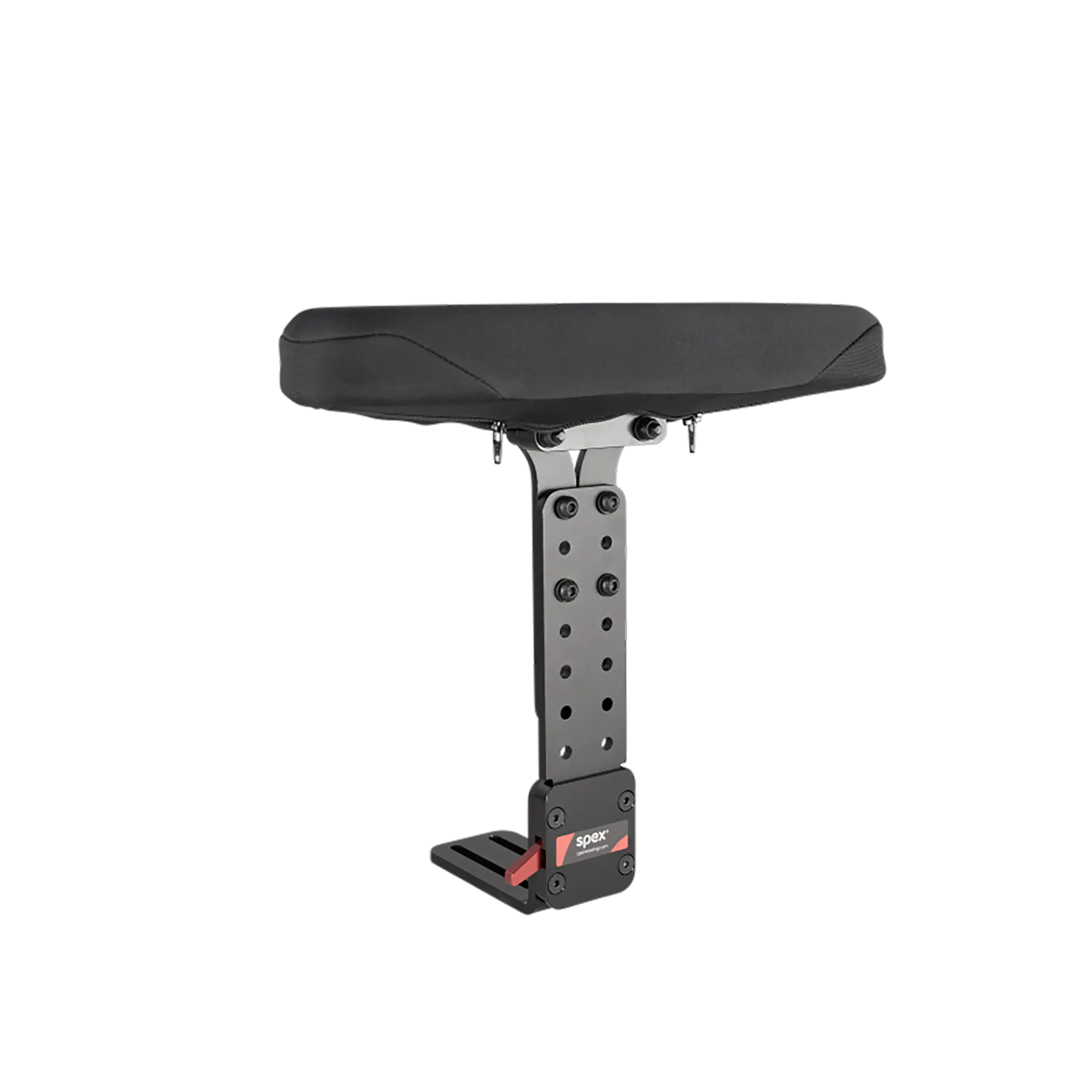

Seat Pan Codes (Horizontal mounting to the wheelchair seat pan)
| Quick-Release Hardware | Swing-Down Hardware |
|---|---|
| 1156-0300-110 | 1156-0300-120 |
Seat Rail Hardware Options (Vertical mounting to the wheelchair seat rail)
| Quick-Release Hardware | Swing-Down Hardware |
|---|---|
| 1156-0300-210 | 1156-0300-220 |
Arm Support Pads Only (please select Hardware also)
| Code | Size | Type | Width | Length | Thickness |
|---|---|---|---|---|---|
| 1156-5811-410 | Small | Slim | 40mm | 250mm | 40mm |
| 1156-5812-410 | Medium | Slim | 50mm | 300mm | 40mm |
| 1156-5813-410 | Large | Slim | 60mm | 350mm | 40mm |
| 1156-5821-410 | Small | Wide | 70mm | 250mm | 40mm |
| 1156-5822-410 | Medium | Wide | 80mm | 300mm | 40mm |
| 1156-5823-410 | Large | Wide | 90mm | 350mm | 40mm |
Specifications
Height Range
These measurements are taken from the top of the seat base to the top of the support pad, including the 40mm thick support pad.
