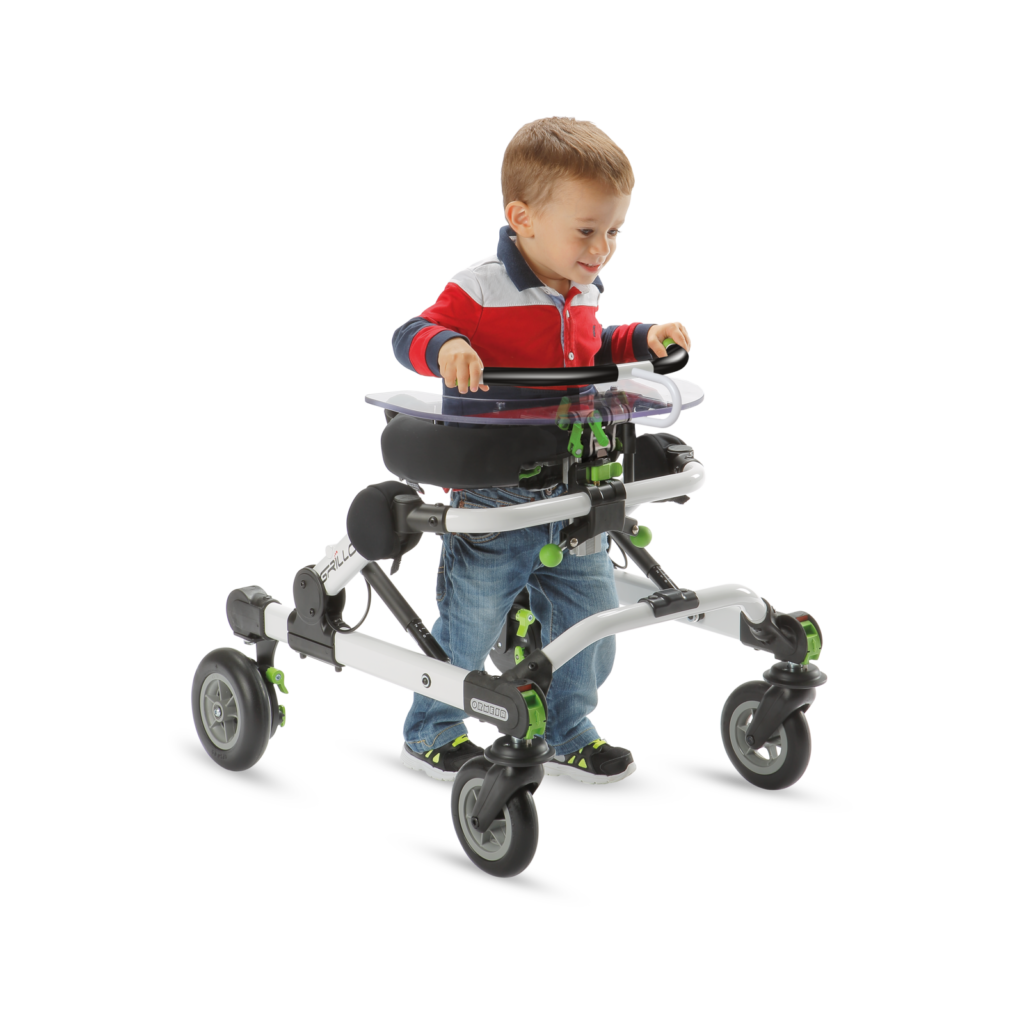

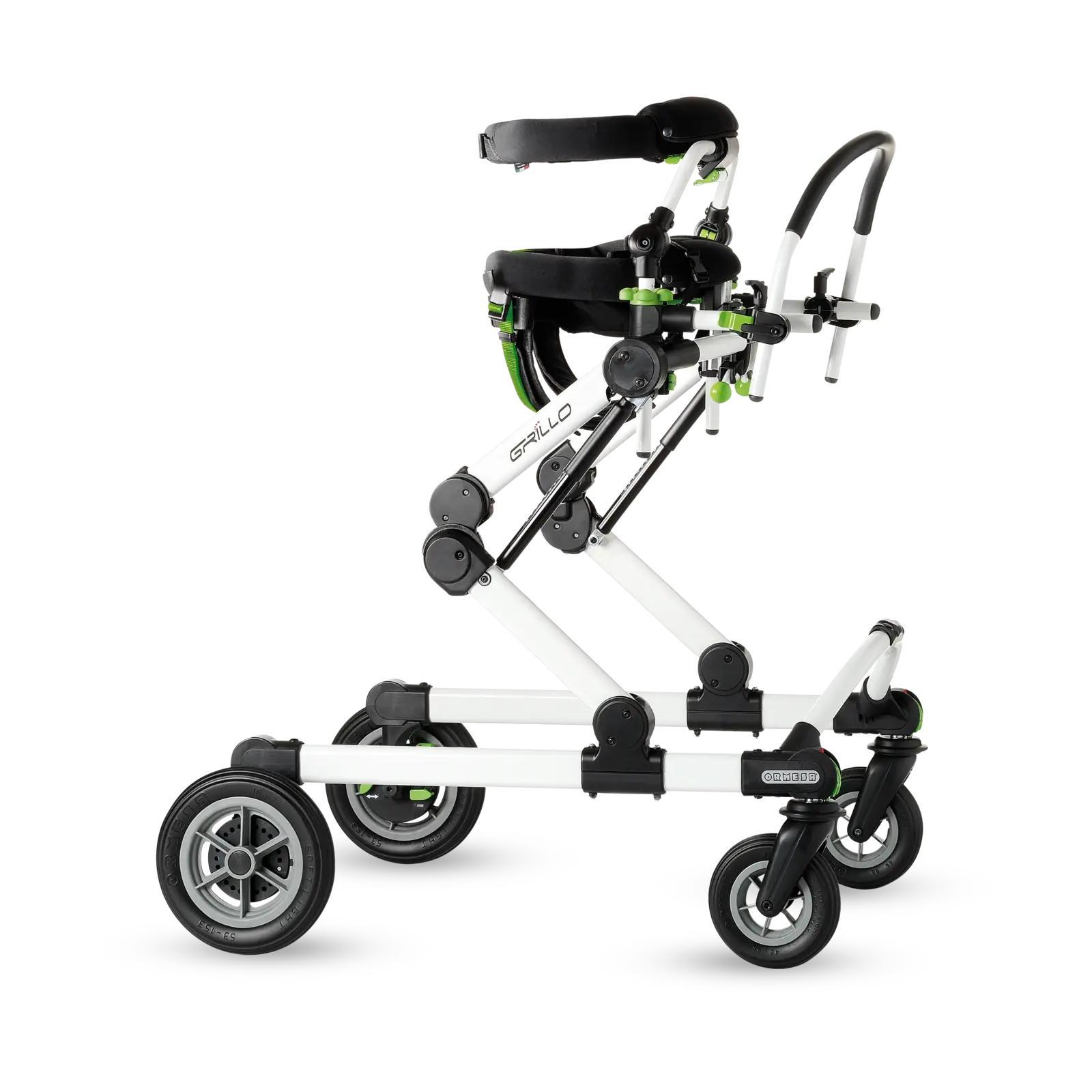

Designed for the independence of children and adults
Grillo by Ormesa is a support walker for adults and children designed to facilitate movement of those with reduced mobility and to promote as much independence as possible.

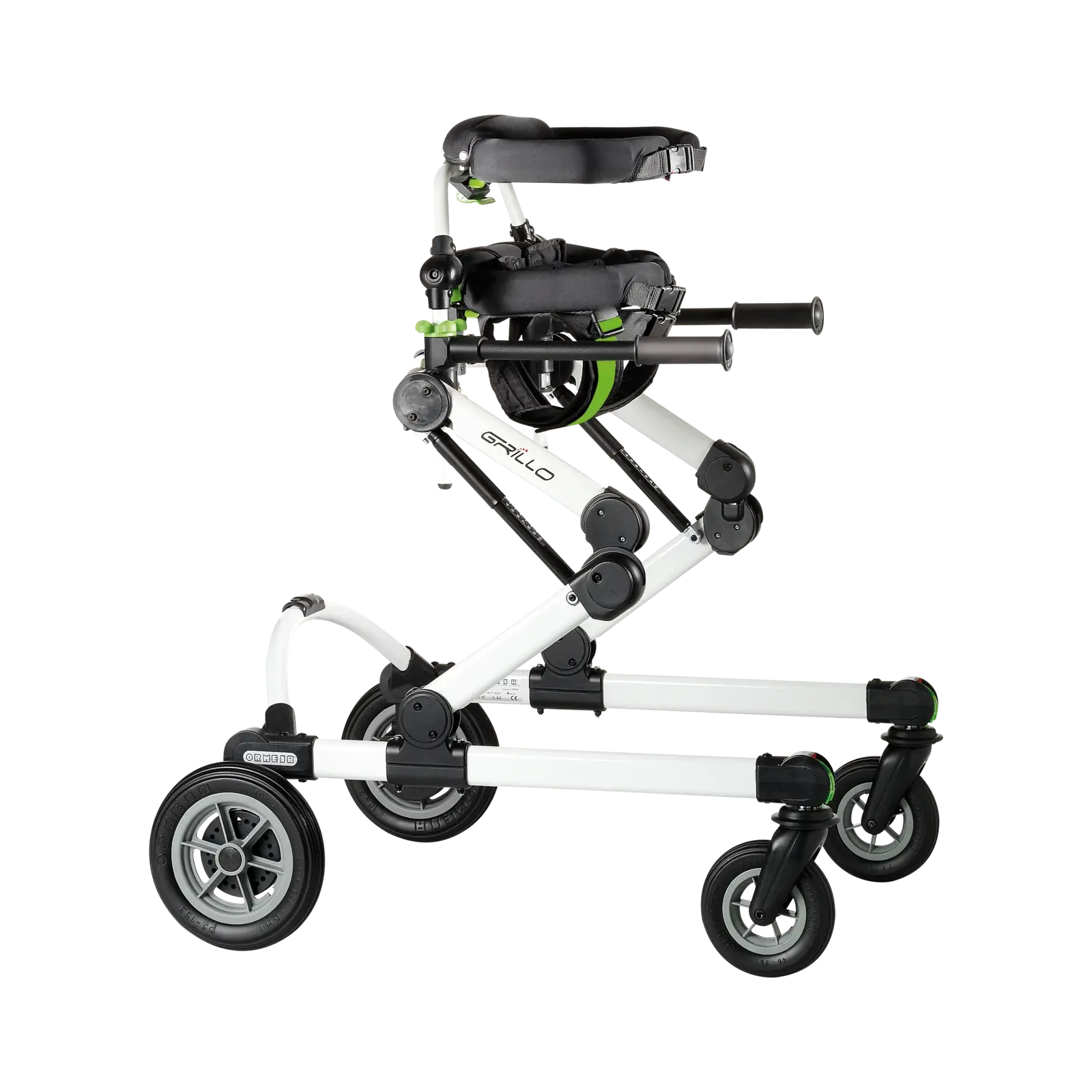

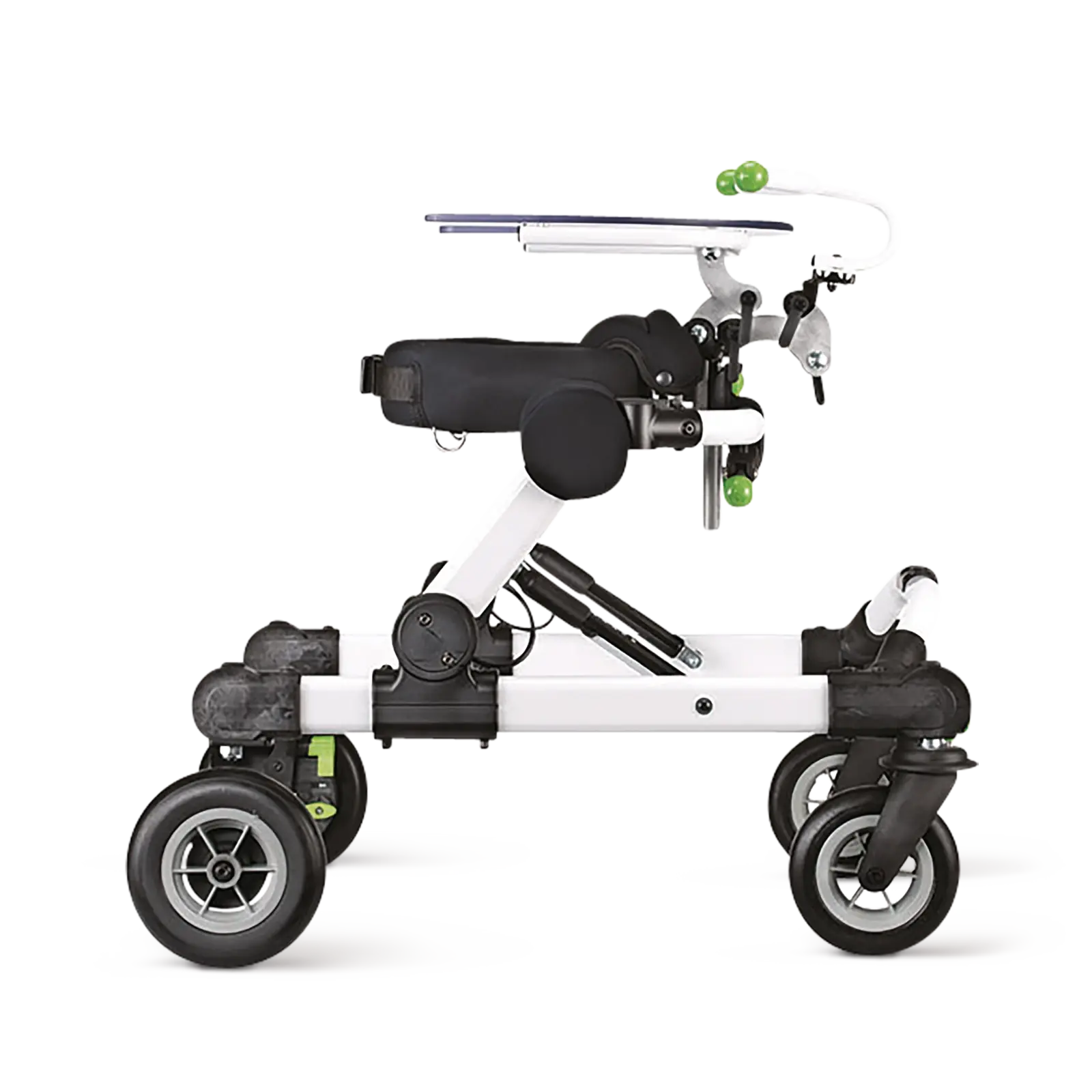

Available in both anterior and posterior versions, it sets extremely high standards with regards to customisation, ease of use and versatility, due to a wide range of adjustments and available supports.
Equipped with ergonomic and independent pelvic and thoracic support, during each and every step, Grillo guarantees:
- Safety
- Stability
- Restraint and support
One single Gait Trainer, endless opportunities!
Being able to move independently in your own environment is of fundamental importance for the development of social and interpersonal skills; in fact, active participation in the community represents a substantial incentive so as not to consider limitations as insurmountable obstacles.
Available in four sizes, Grillo allows adults and children to live independently, contributing to the development and strengthening of self and body consciousness.
Grillo Gait Trainer is designed to generate and help the step pattern, to train the pelvis and trunk to keep their balance, to organize a wider structured vision of space of distance and of the user’s surroundings in the upright position, to develop physical self-sufficiency and psychological independence by exercising the possibility of acting alone without the help of other people.
An open-back design accommodates easy ‘getting-in’ and ‘getting-out’ and can be a forward or rear facing gait trainer. Its wide range of adjustments and supports make it easy-fitting to the different needs and features of the User.
Stability and Comfort within everyone’s reach

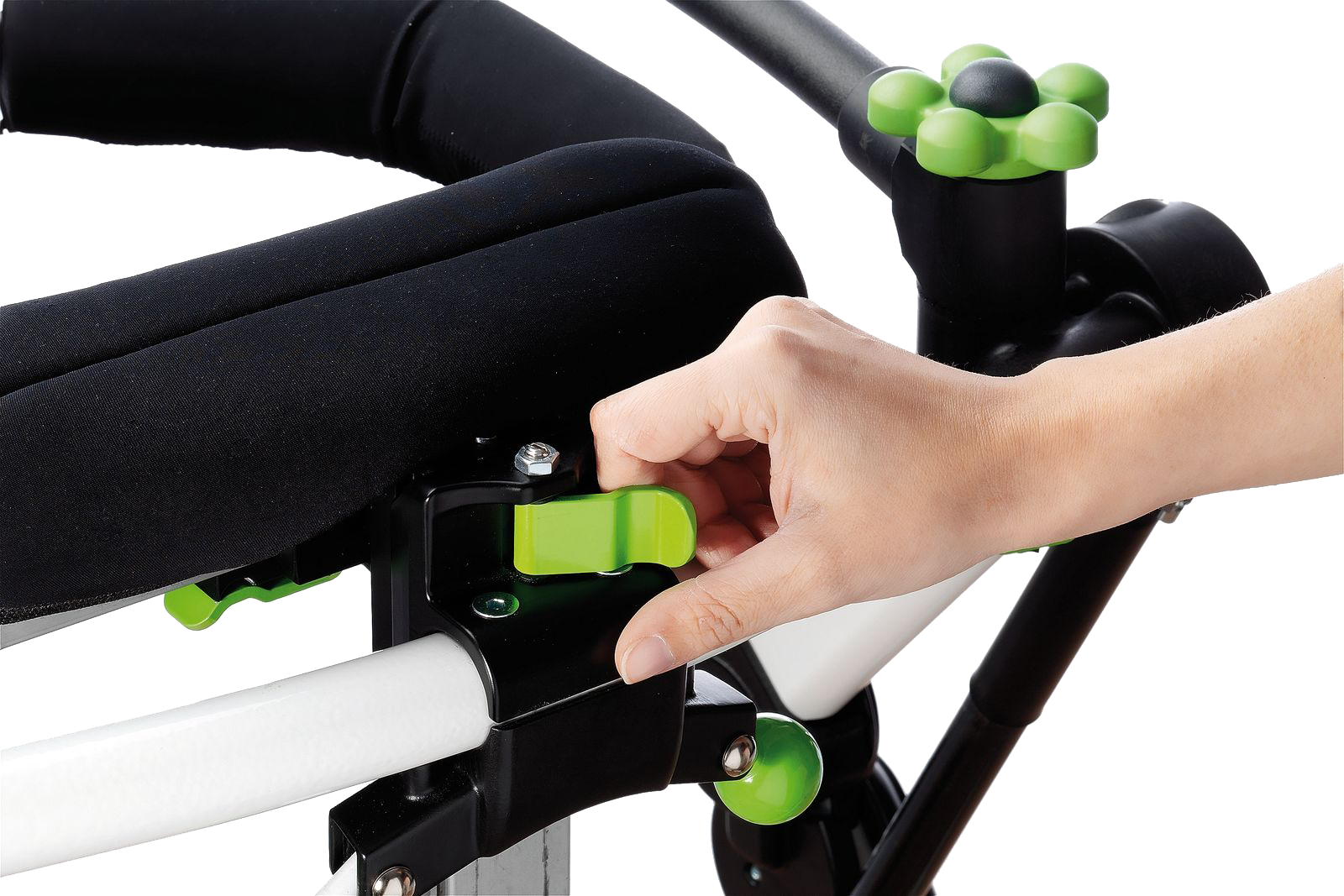

The Grillo gait trainer is easily adaptable to all sizes and levels of trunk control. Thanks to a practical system of handles and levers, basic and additional anatomical supports can be adjusted, installed and removed simply and quickly, without requiring tools.
Grillo is a patented product.
Grillo Grows With You
Thanks to a very light aluminium frame, Grillo by Ormesa is perfect to be pushed and manoeuvred, even for those who are significantly compromised in voluntary motor skills, as well as balance; furthermore, since it is foldable, it is the ideal solution for those who have little space at home or need to travel.

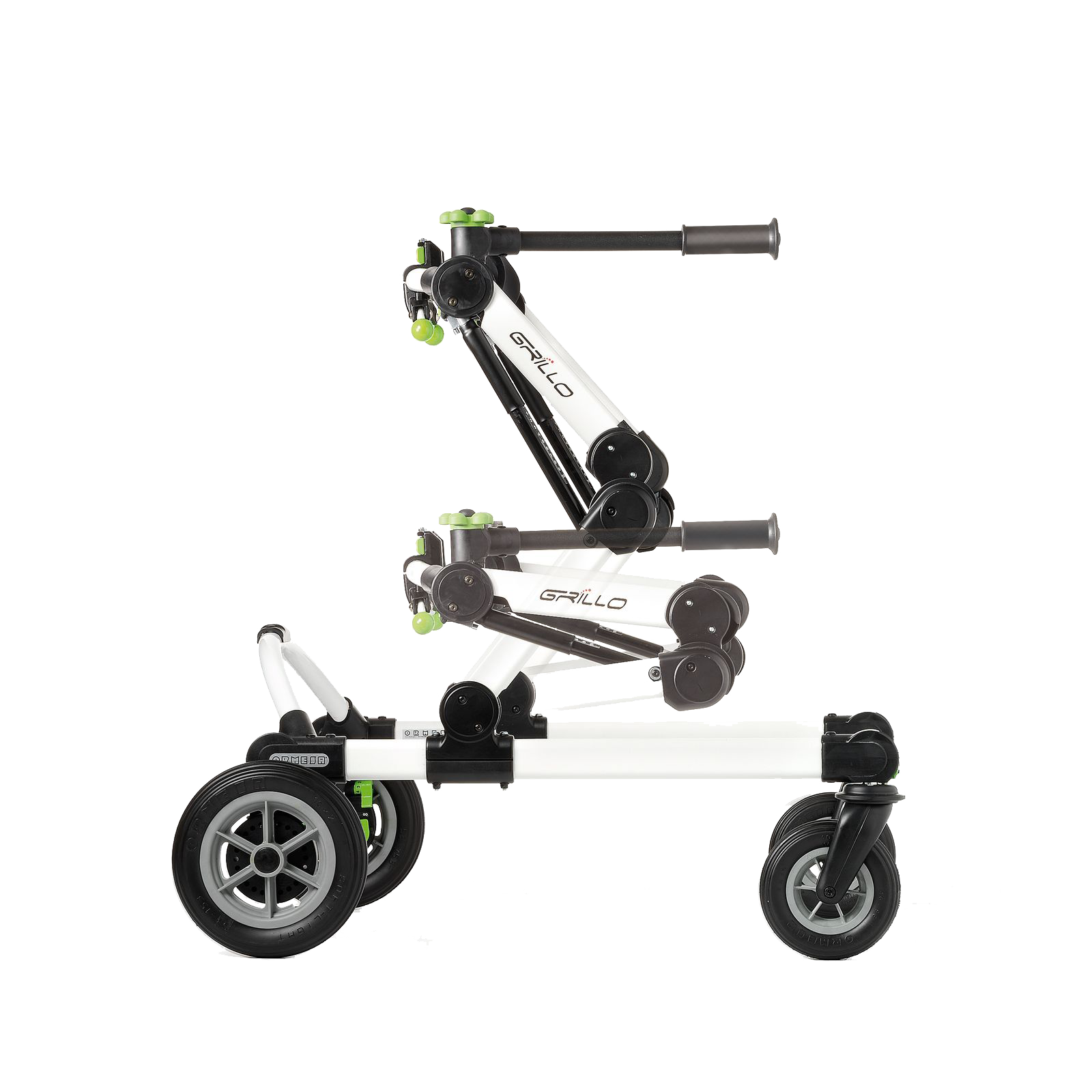

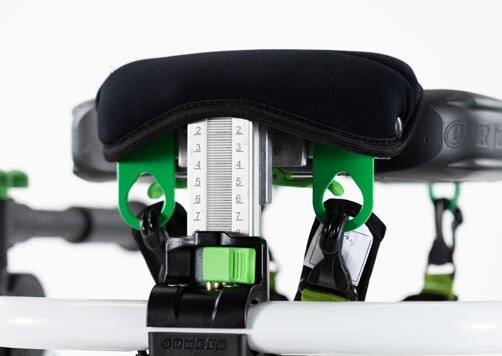

The frame can be adapted, both in static and dynamic phases, with the user in situ: the system of height adjustment with constant centre of gravity means that Grillo can accompany the growth of the child for a long time.

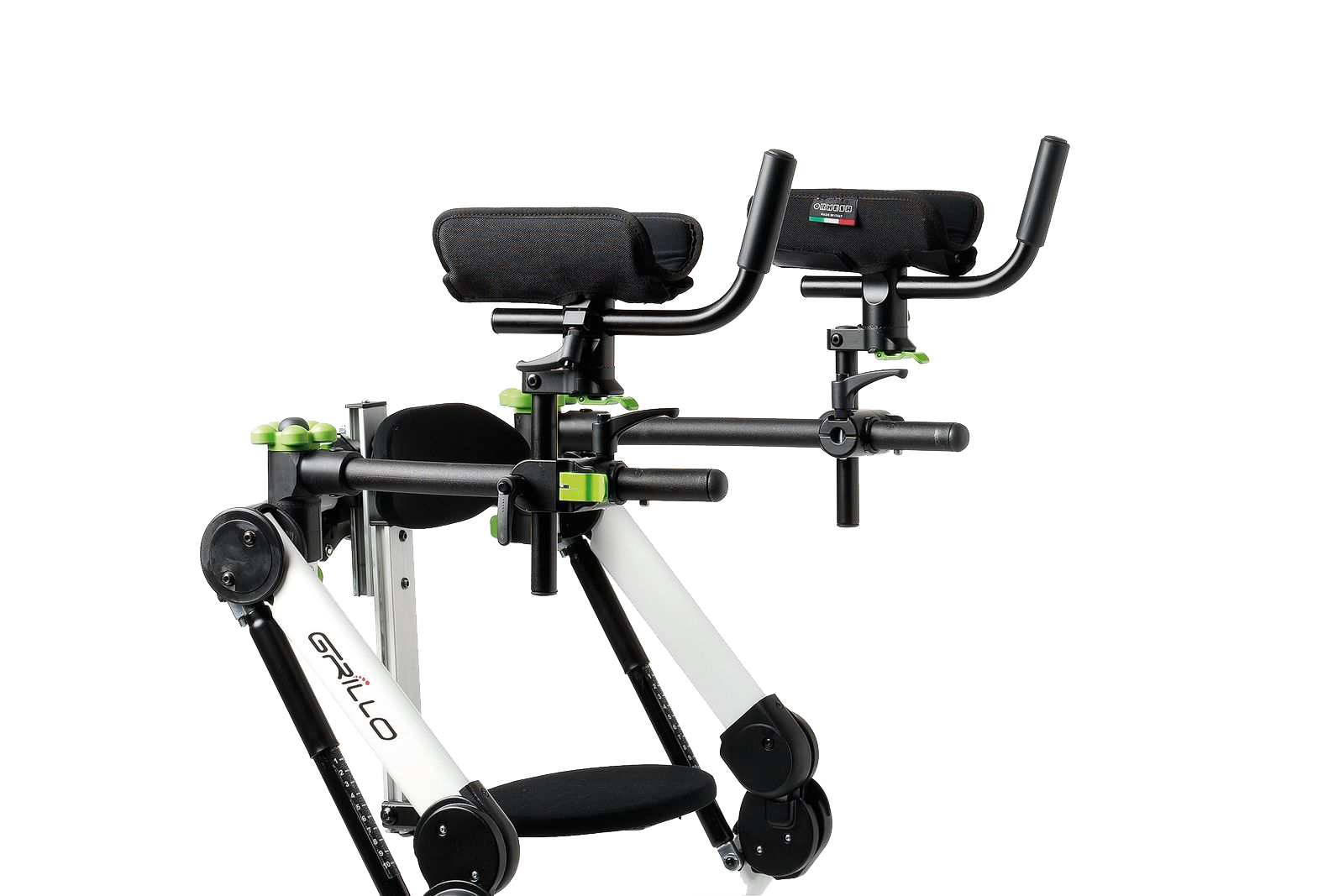

Grillo Arm Gutter Supports
Multi-adjustable in depth, tilt, turning direction, height, prone-supine direction. Promotes the discharge of body weight.
Can also be positioned on the external part of the handle.
Product Code:
Mini: 5750-5500-000
Size small: 5750-5501-1-2
Size medium / large: 5750-5503-3-4
Support clamps: 5750-5550-000
| Size | For Anterior Frame | For Posterior Frame |
|---|---|---|
| 0 | – | 5750-5500-000 |
| 1-2 | 5750-5501-1-2 | 5750-5501-1-2 + 5750-5550-000 |
| 3-4, 5 | 5750-5503-3-4 | 5750-5503-3-4 + 5750-5550-000 |
Grillo Arm Straps
Adjustable in circumference.
Product Code:
Mini: 5750-6860-000
Size small: 5750-6862-000
Size medium / large: 5750-6864-000

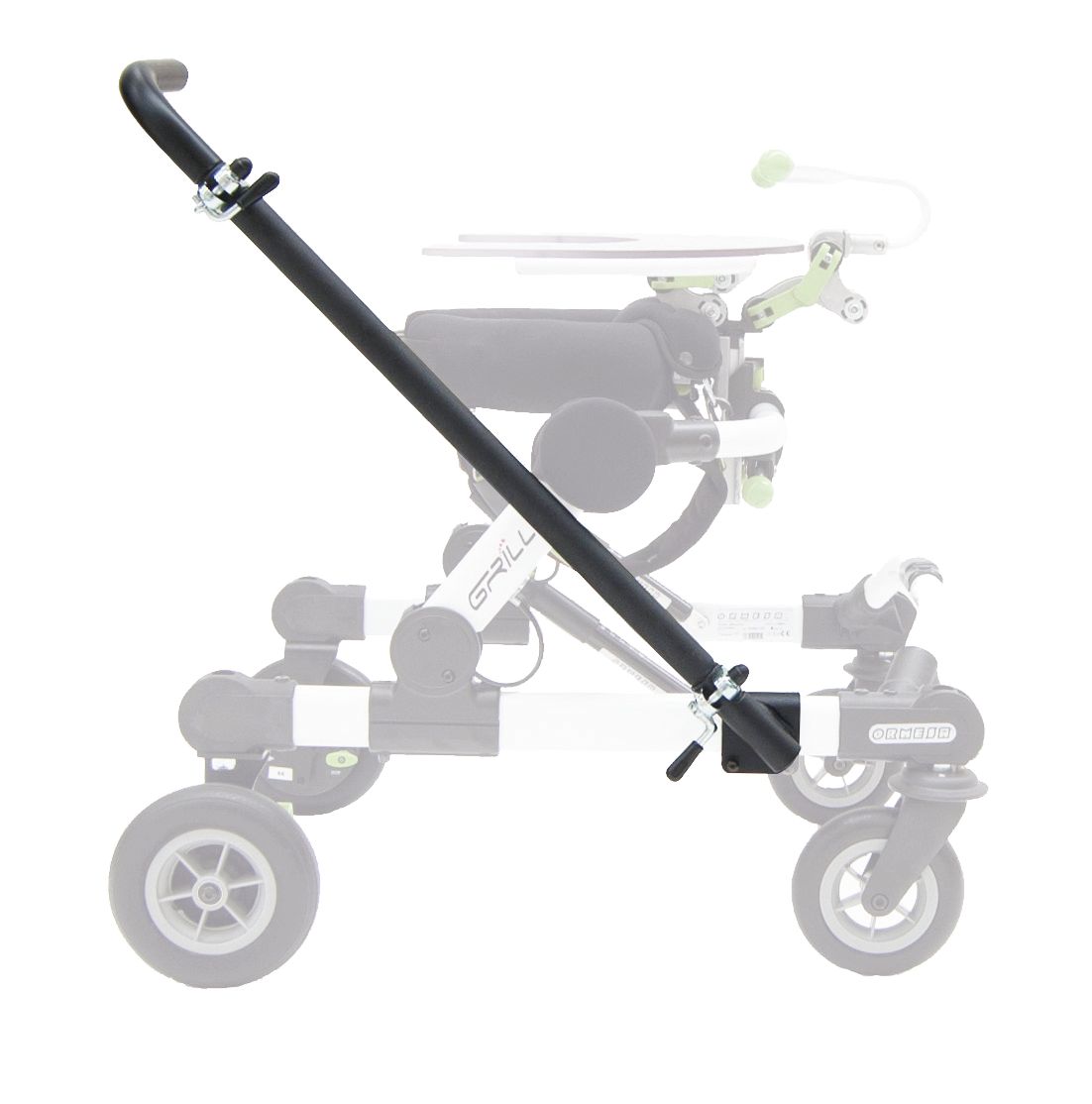

Grillo Assistant Push Handle
Provides additional control for caregivers.
Product Code:
5750-8600-000

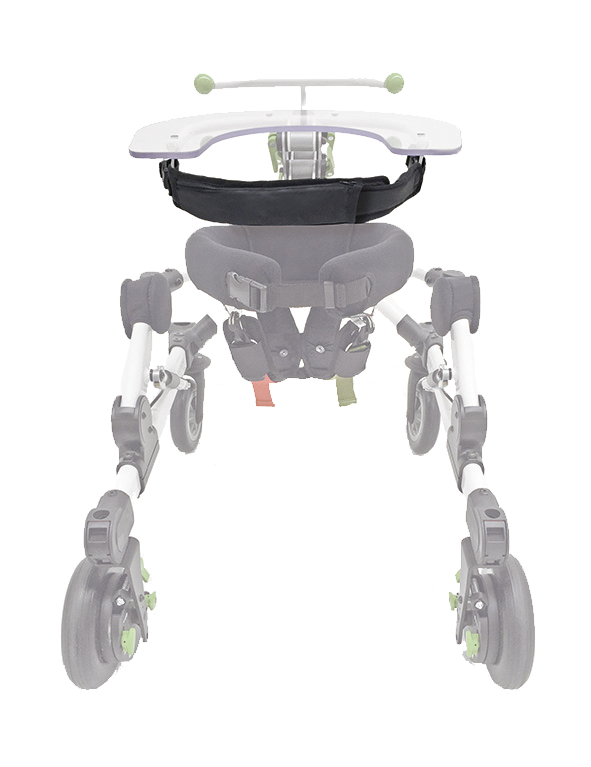

Grillo Back belt
Posterior belt, adjustable in circumference. Fits to the tray of Grillo Mini / 0 (only size available), and requires tray for usage.Suitable for Anterior use.
Product Code:
5750-6820-000

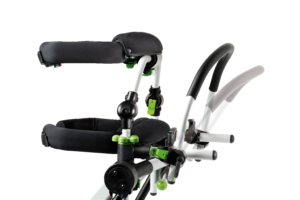

Grillo D Handle Bar
Easily adjustable in tilt and to suit user height. Suitable for Anterior Grillo (comes as part of standard package).
Product Code:
Size small: 5750-5701-1-2
Size medium: 5750-5703-3-4
Grillo Ergonomic Handles
Adjustable in height, inclination, forward-backward movement, rotation and width.
| With Joints for Posterior Model | 5750-5735-000 |
|---|---|
| Without Joints for Anterior Model | 5750-5730-000 |
Grillo Ergonomic Saddle Seat
Promotes partial loading of the lower limbs.
Product Code:
Size small: 5750-0211-1-2
Size medium: 5750-0213-3-4
Size large: 5750-0215-005

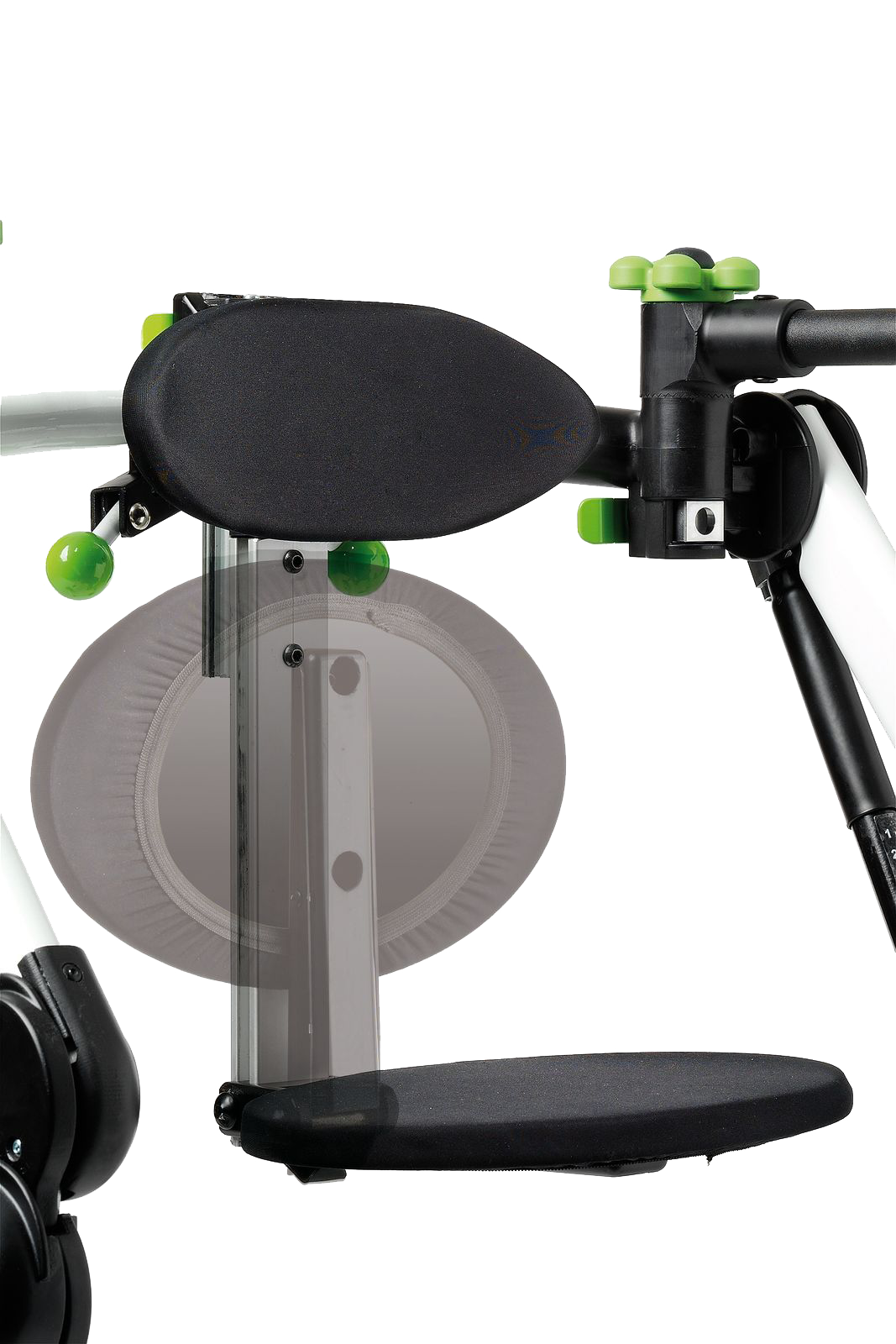

Grillo Folding Seat
Height adjustable. It can be used on Posterior Grillo only, both on pelvic support and lumbar support.
It offers a secure support in case of need, and can be folded while walking
Product Code:
Size small: 5750-0201-1-2
Size Medium: 5750-0203-3-4

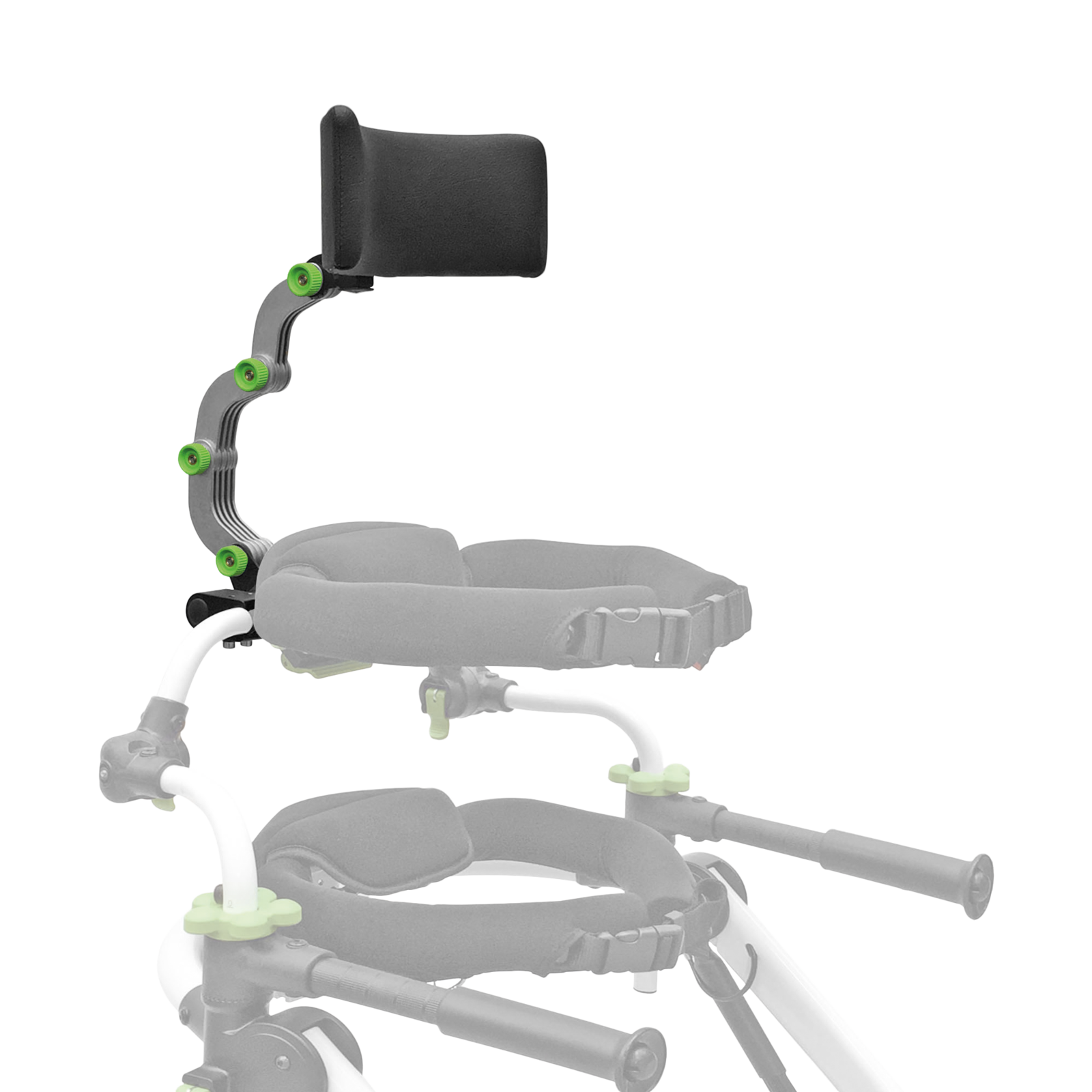

Grillo Head Support
Multi-adjustable head support in height, inclination and forward/backwards positions. Fits size Small, Medium and Large.For posterior Grillo.
Product Code:

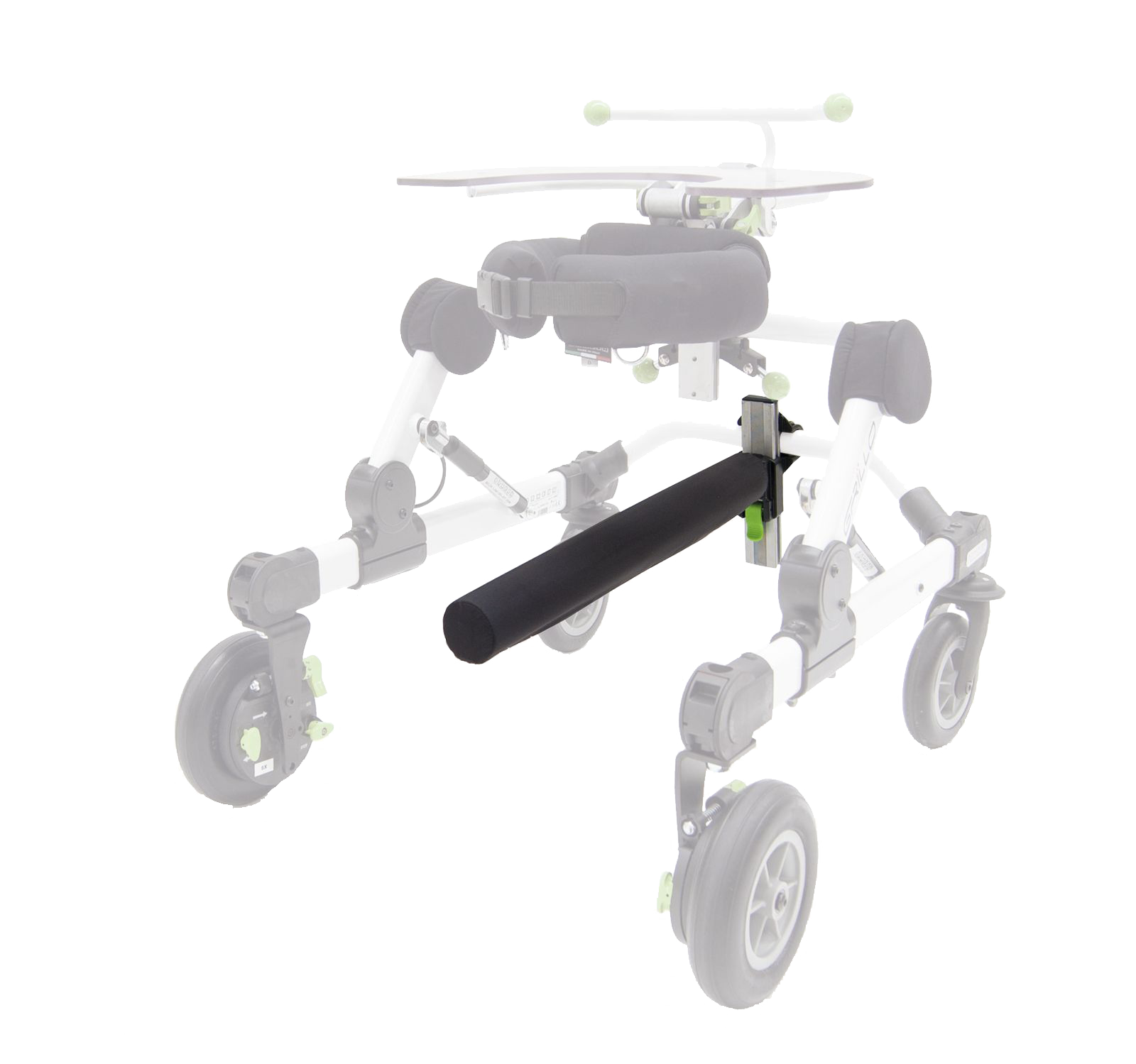

Grillo Leg Divider
Padded leg divider for Mini only. Adjustable in height.
Product Code:
5750-5400-000

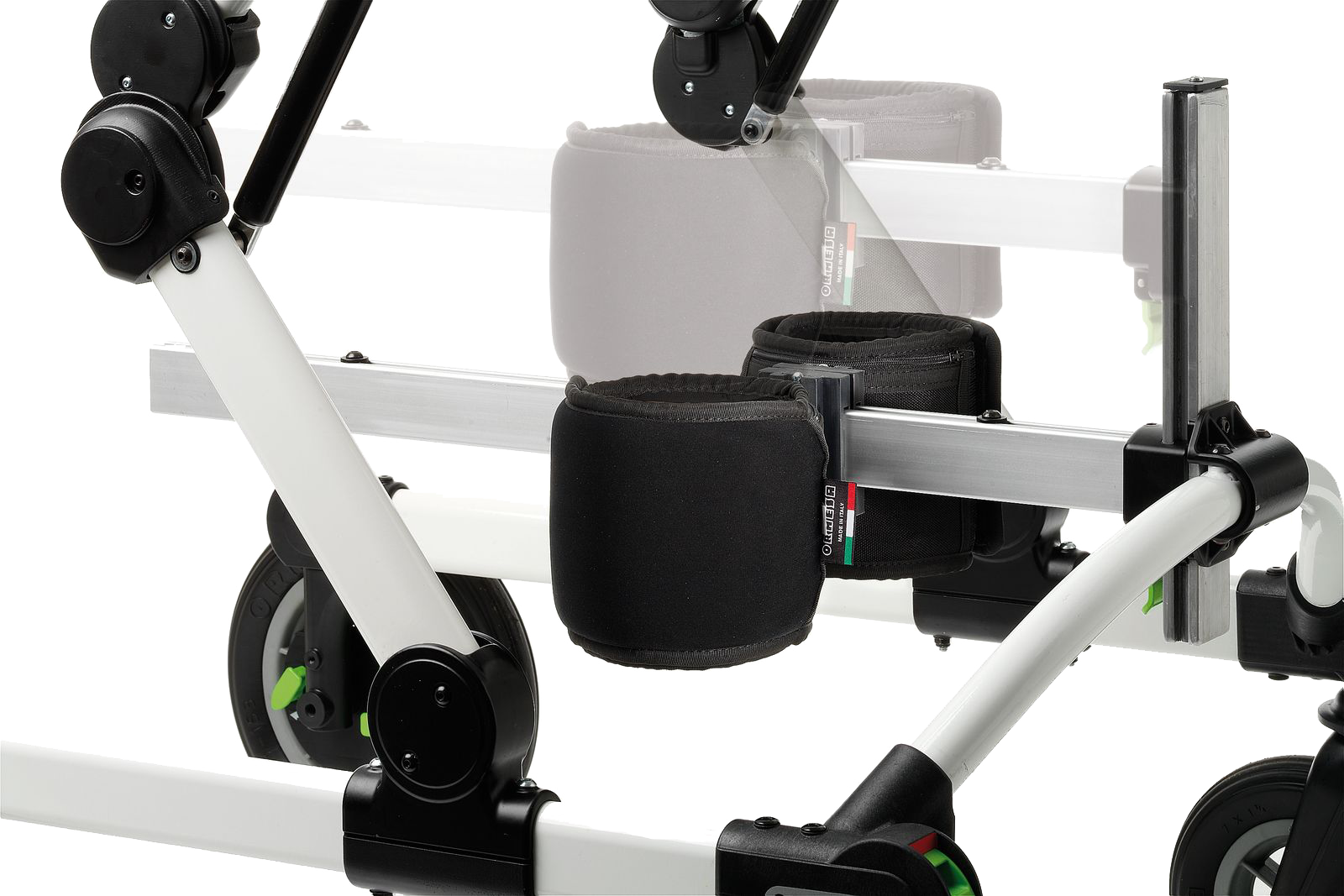

Grillo Leg Divider with Straps
With moving leg cuffs. It is positioned above the knees, and hinders the adduction of the lower limbs. It guides the step pattern making the right sequence of movements easier while walking.
It is adjustable in height and circumference to fit in the different body builds. Furthermore the extent of the stride can be adjusted. Thanks to its innovative design, the thigh straps offer three degrees of freedom: lengthwise, vertically and rotationally. They go along with the natural physiological movements of walking.
Product Code:
Size small: 5750-5401-1-2
Size medium: 5750-5403-3-4
Size large: 5750-5405-005
| Small | Medium | Large | |
|---|---|---|---|
| Length | 60 cm | 64 cm | 79 cm |
| Height adjustment | 20 cm | 28 cm | 28 cm |

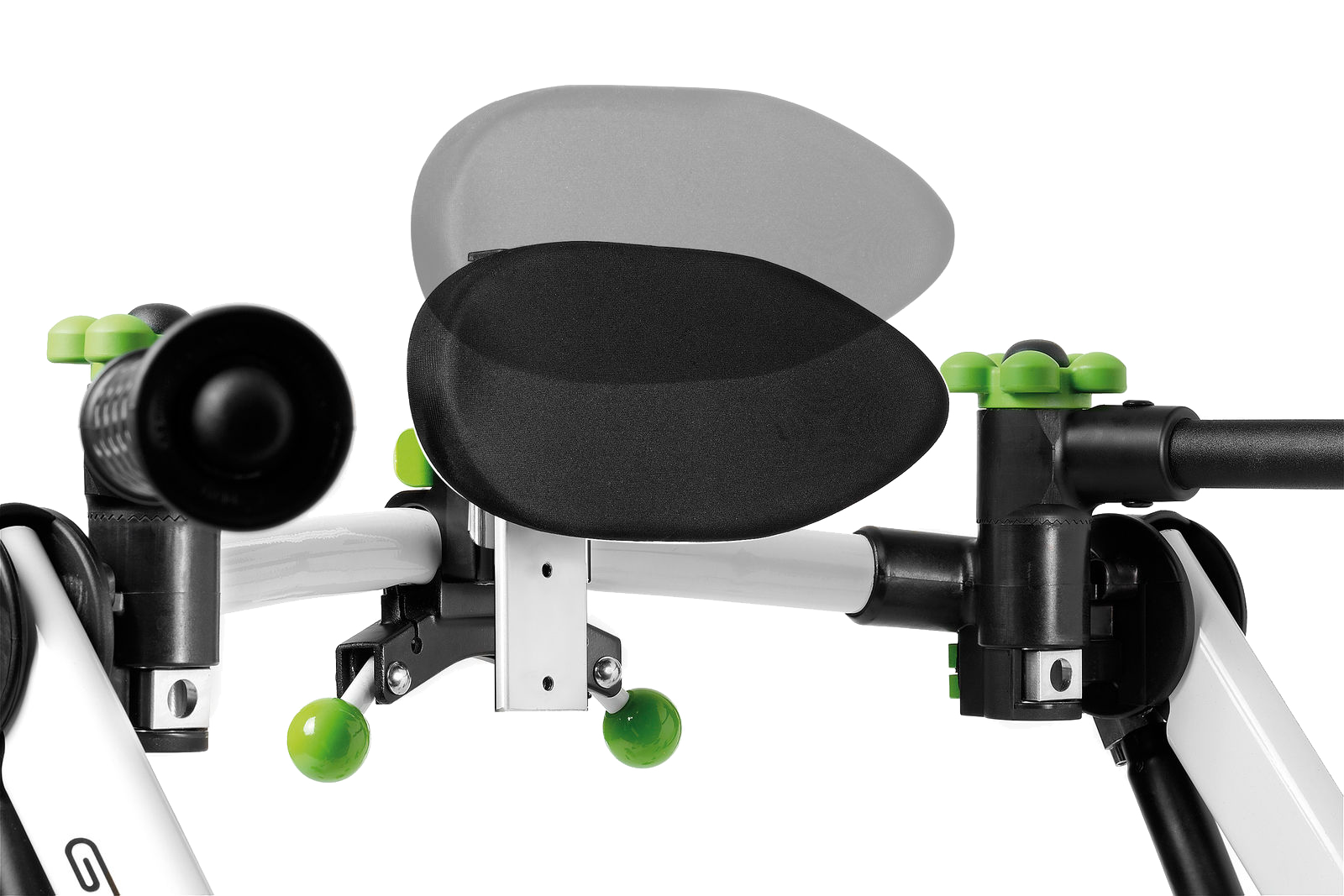

Grillo Lumbar Support
Height adjustable lower back support for an effective posterior perceptive stimulus.For Posterior frame only.
Product Code:
Size small: 5750-2501-1-2
Size medium: 5750-2503-3-4
Grillo Mini Grip Handles
Multi-Adjustable grip handles provide greater stability for walking children (for Mini only).
Product Code:
5750-5700-000
Grillo Padded Saddle Seat
- Provides extra support
- Fold down feature for transfers
- Two height settings
- For use in anterior or posterior
Product Code:
Mini: 5750-0211-1-2
Medium: 5750-0213-3-4
Large: 5750-0215-005

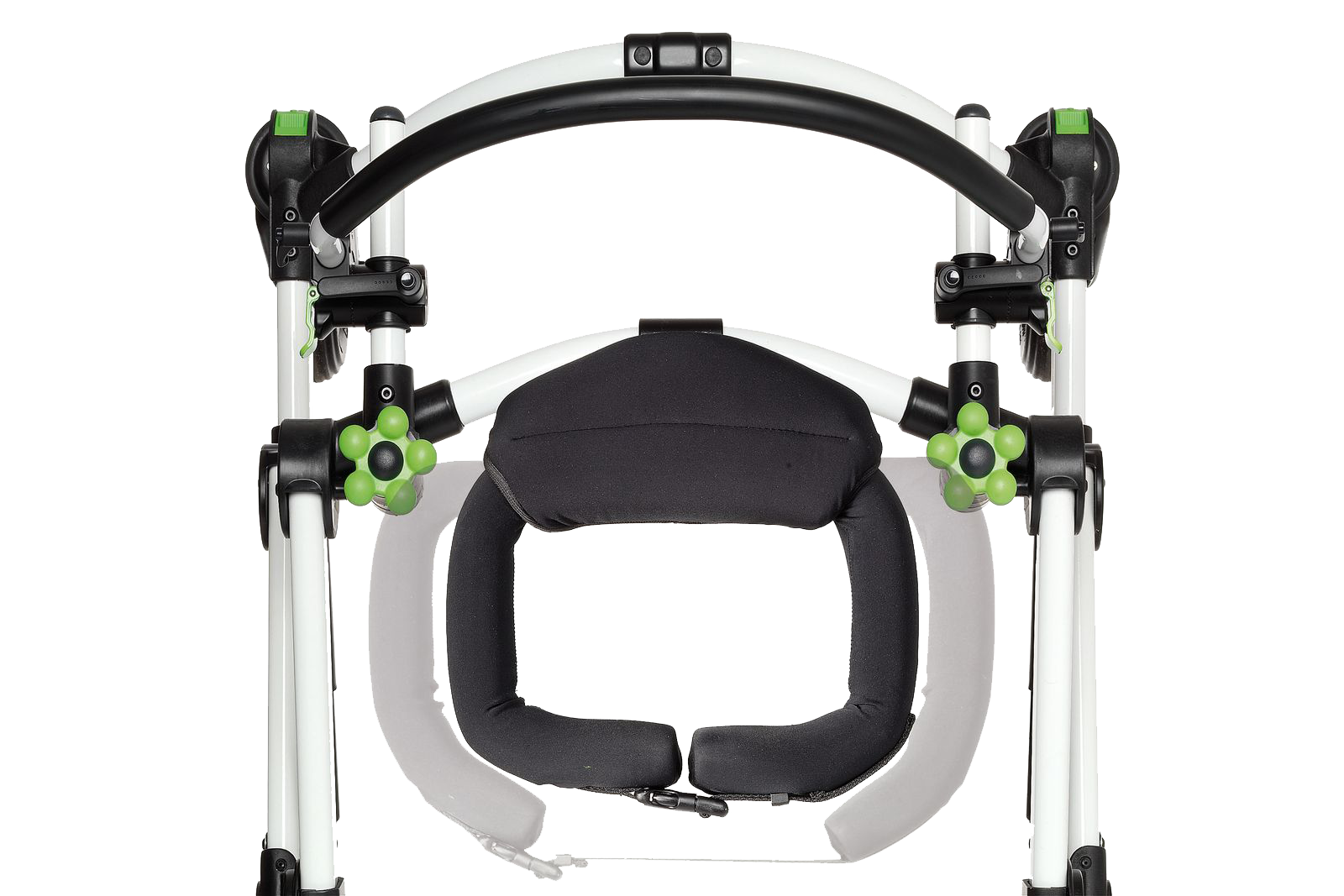

Grillo Pelvic Support
Restrains the pelvis providing safety and stability. Included in the standard Anterior and Posterior packages.
Product Code:
Mini: 5750-1900-000
Size small: 5750-1901-1-2
Size medium: 5750-1903-3-4
Size large: 5750-1905-005

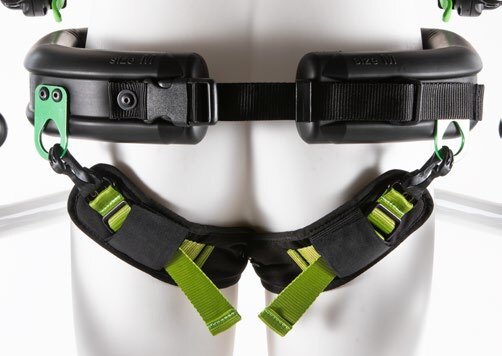

Grillo Pelvis Harness
Use in conjuction with Pelvic Support only. Ergonomic harness is adjustable in height, inclination and forward-backward positions. Comes standard with Anterior and Posterior Grillo packages.
Product Code:
Size small: 5750-1921-1-2
Size medium: 5750-1923-3-4
Grillo Removable Handles
Handles are independently width adjustable.For Posterior frame only.
Product Code:
5750-5721-1-2
5750-5723-3-4
Grillo Trunk Support
Adapts to different postural needs.
Included in the standard Anterior and Posterior packages.
Product Code:
Mini: 5750-2850-000
Size small: 5750-2851-1-2
Size medium: 5750-2853-3-4
Size large: 5750-2855-005

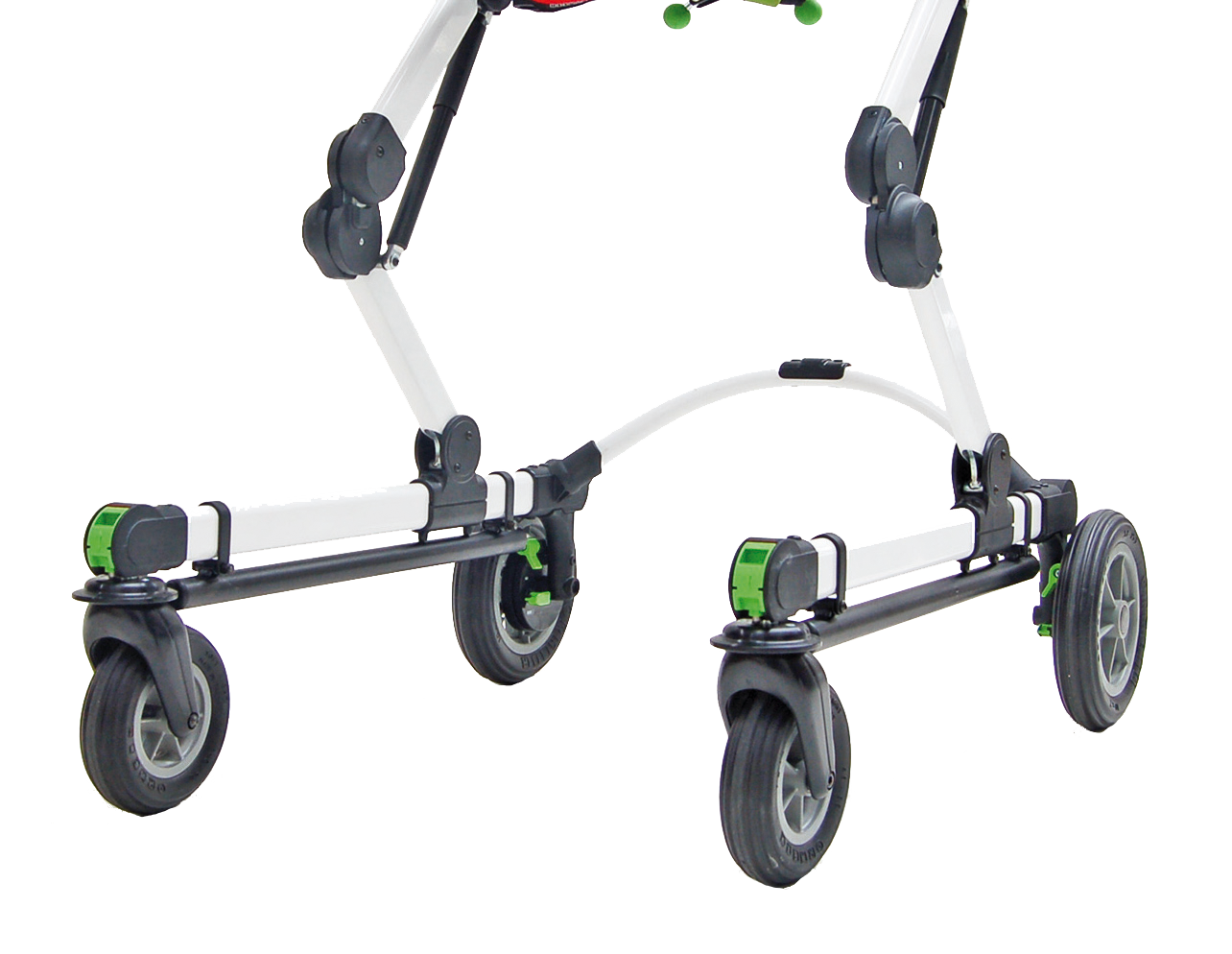

Grillo Weighted Bars
Adds stability to the frame in cases of taller users or serious uncontrolled movements.
Grillo 1-2 + 2,6 kg. (Lbs. 5,7) x 2
Grillo 3-4 + 3,4 kg. (Lbs. 7,5) x 2
Product Code:
5750-8431-1-2
5750-8433-3-4

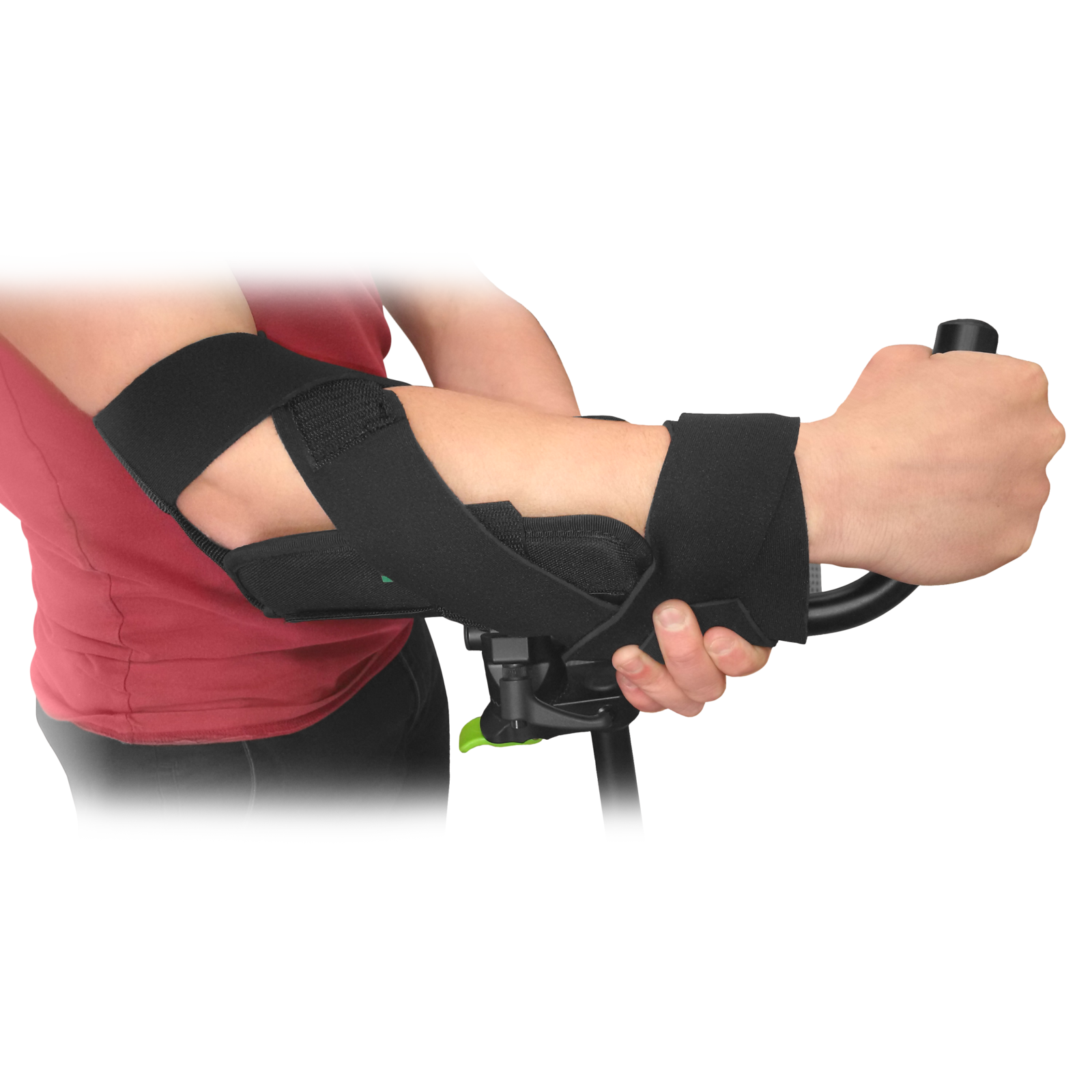

Arm Retainer Strapping
Arm gutter strapping for Flux Walker and Grillo Gait Trainer.
Product Code:
5640-6865-000
| Size Mini (0) | Size Small (1-2) | Size Medium (3-4) | Size Large (5) | |
|---|---|---|---|---|
| Pelvic support height | 42 – 61 cm | 49 – 84 cm | 54 – 100 cm | 63 – 117 cm |
| Trunk support height | 51 – 75 cm | 69 – 100 cm | 76 – 125 cm | 81 – 143 cm |
| Support circumference | 53 – 79 cm | 60 – 86 cm | 74 – 120 cm | 84 – 140 cm |
| Frame width | 57 cm | 65 cm | 76 cm | 80 cm |
| Frame length | 73 cm | 75 cm | 91 cm | 111 cm |
| User height range | 75 – 100 cm | 90 – 135 cm | 110 – 165 cm | 150 – 190 cm |
| Max Load | 35 kg | 45 kg | 90 kg | 110 kg |
| Total weight of Anterior configuration | 13.5 kg | 16.2 kg | 19.5 kg | 23 kg |
| Total weight of Posterior configuration | 13.5 kg | 15.7 kg | 17.7 kg | 22 kg |

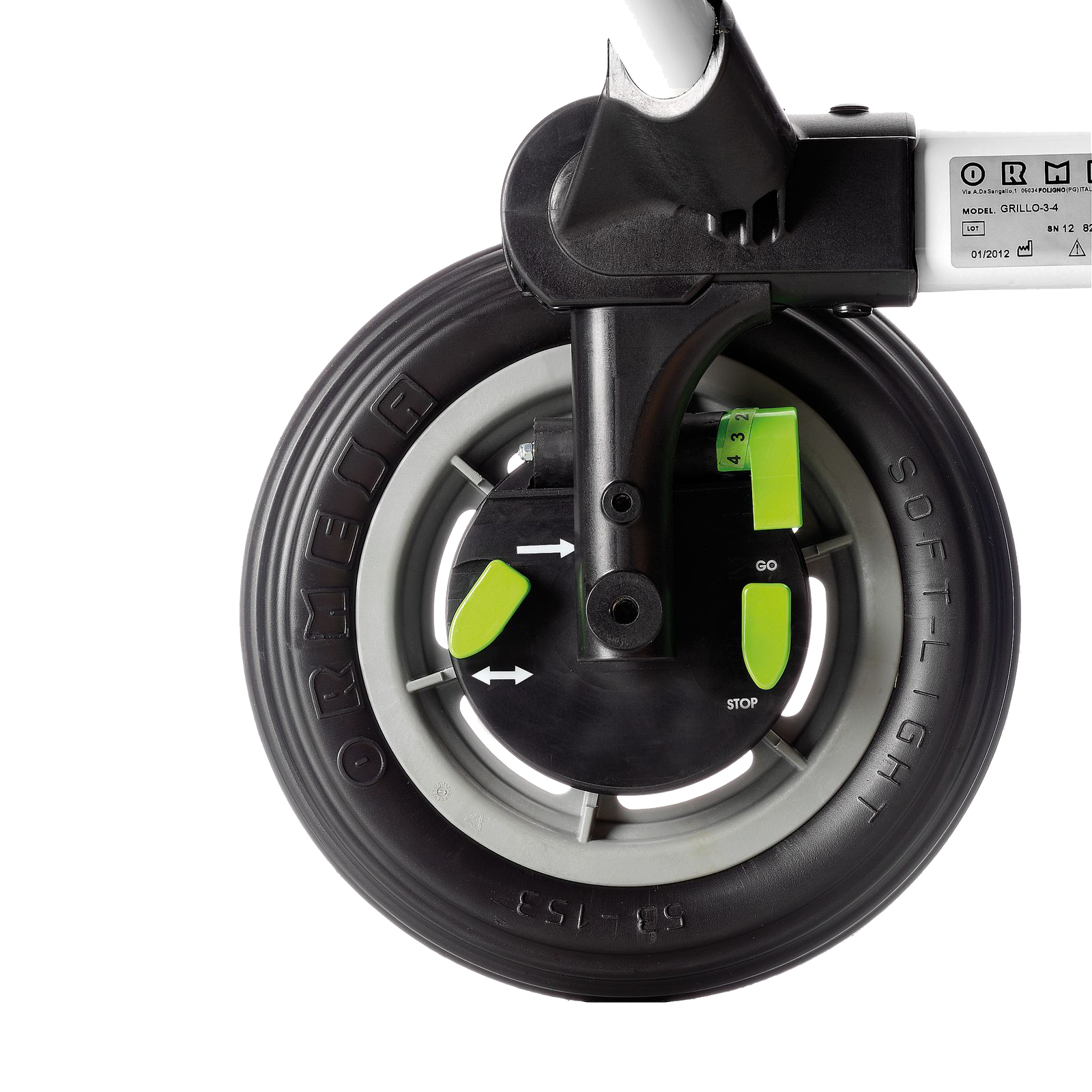

| Wheel Dimensions | 15 cm front 20 cm rear |
15 cm front 20 cm rear |
17.5 cm front 25 cm rear |
17.5 cm front 25 cm rear |
| Code for Anterior Walker | 5750-0011-000 | 5750-0051-12B | 5750-0053-34B | 5750-0055-05B |
| Code for Posterior Walker | 5750-0140-000 | 5750-0051-12B + 5750-1000-000 |
5750-0053-34B + 5750-1000-000 |
5750-0055-05B + 5750-1000-000 |
The freedom of being limitless: the Story of Raoul
Raoul’s parents live in Rheinfelden, Switzerland. They shared this contribution:
Our son Raoul is a 9 years old happy and curious boy; he was born with diplegic cerebral palsy, a GMFCS level III handicap. After having hip surgery in 2018, he can walk only with a reduction of his weight. Thanks to the Grillo, he has been able to get back up and start practicing walking in a very short time. We love the Grillo because it is easy and fast to handle; in addition, it does not slam your fingers when you lift it from the trunk and it’s lightweight, with easy opening and closing.
Thanks to its rounded design, it is very ergonomic, it does not cause bruises when you bang against it, it doesn’t get trapped in the trunk or got stuck to furniture and clothes. Until now, we have never had such a multi-functional aid for either outdoor and indoor use. Raoul gets up and run with the Grillo for about 6 hours a day so we can integrate the daily therapy and minimize therapy sessions.
Raoul says:
I love my Grillo because it makes me feel free and able to look at my friends and classmates in the eyes, because we are at the same height. They know that I can run and keep up with them, also in sports. When we play soccer I am the goalkeeper, because I am quite good at it. I can go everywhere with Grillo. I use it for all those routes less than 1 km; I run longer distances, like the road to school, with my electrical tricycle. I always have moments for leg training in my daily routine.
At school, I am always using the Grillo, so I can keep up with my mates. Sometimes, my assistant pulls me sideways in order to save energy. During gym class, I can do lots of ball games. Thanks to the gas spring, I can stand, sit or squat near the ground. That helps a lot. When I go shopping or on vacation, I can grab and see things at different heights, this couldn’t be possibile on a wheelchair. It fits perfectly in the large trunk of our car because it folds easily.

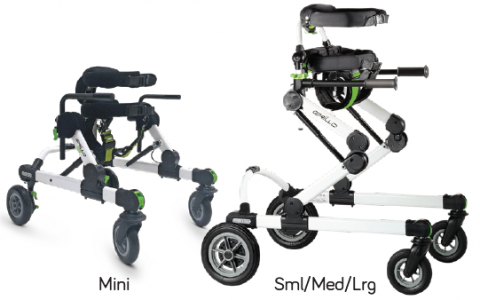

What is the difference between the Anterior and Posterior Grillo?
| Anterior Grillo | Posterior Grillo |
|---|---|
 |
 |
Package Contents:
|
Package Contents:
|
