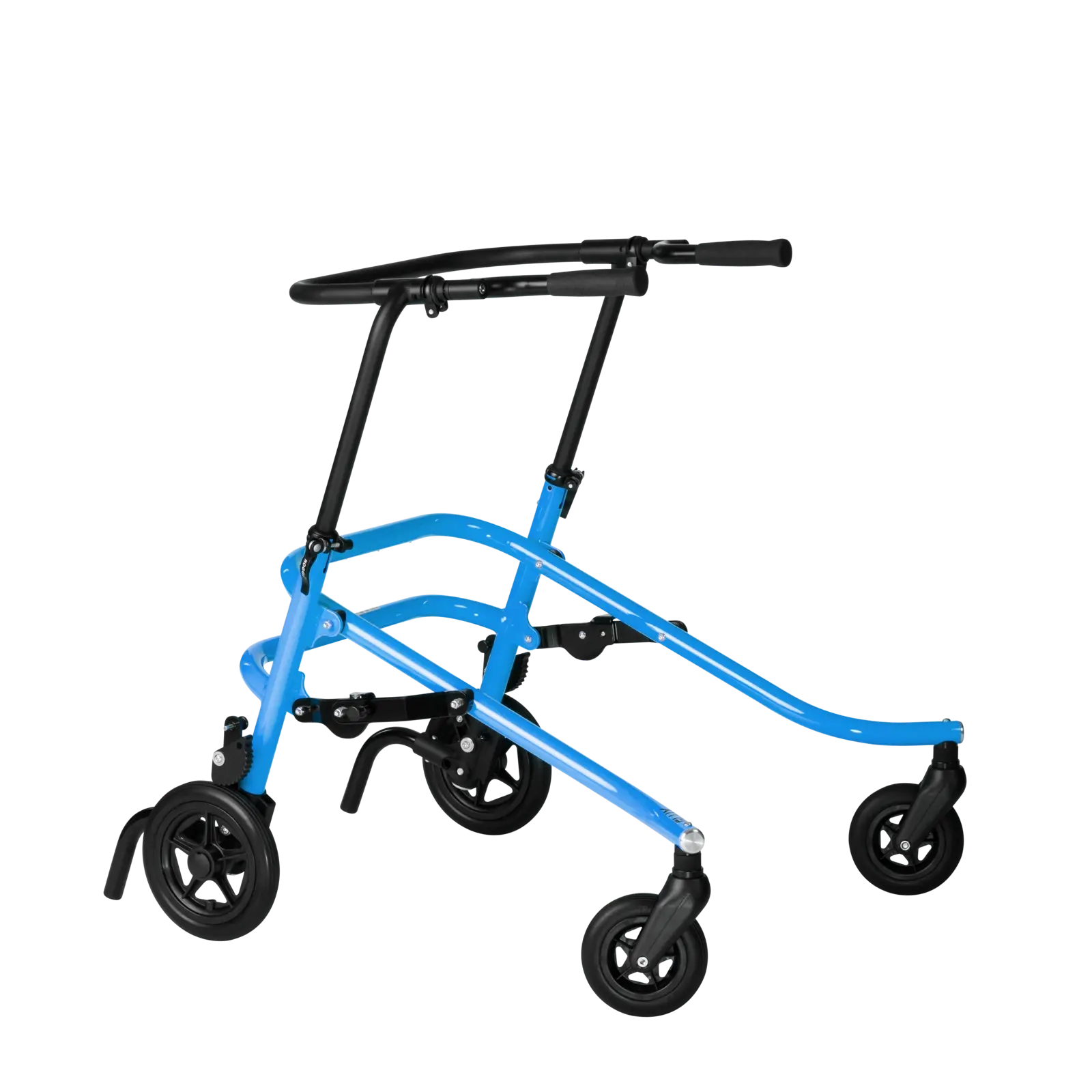

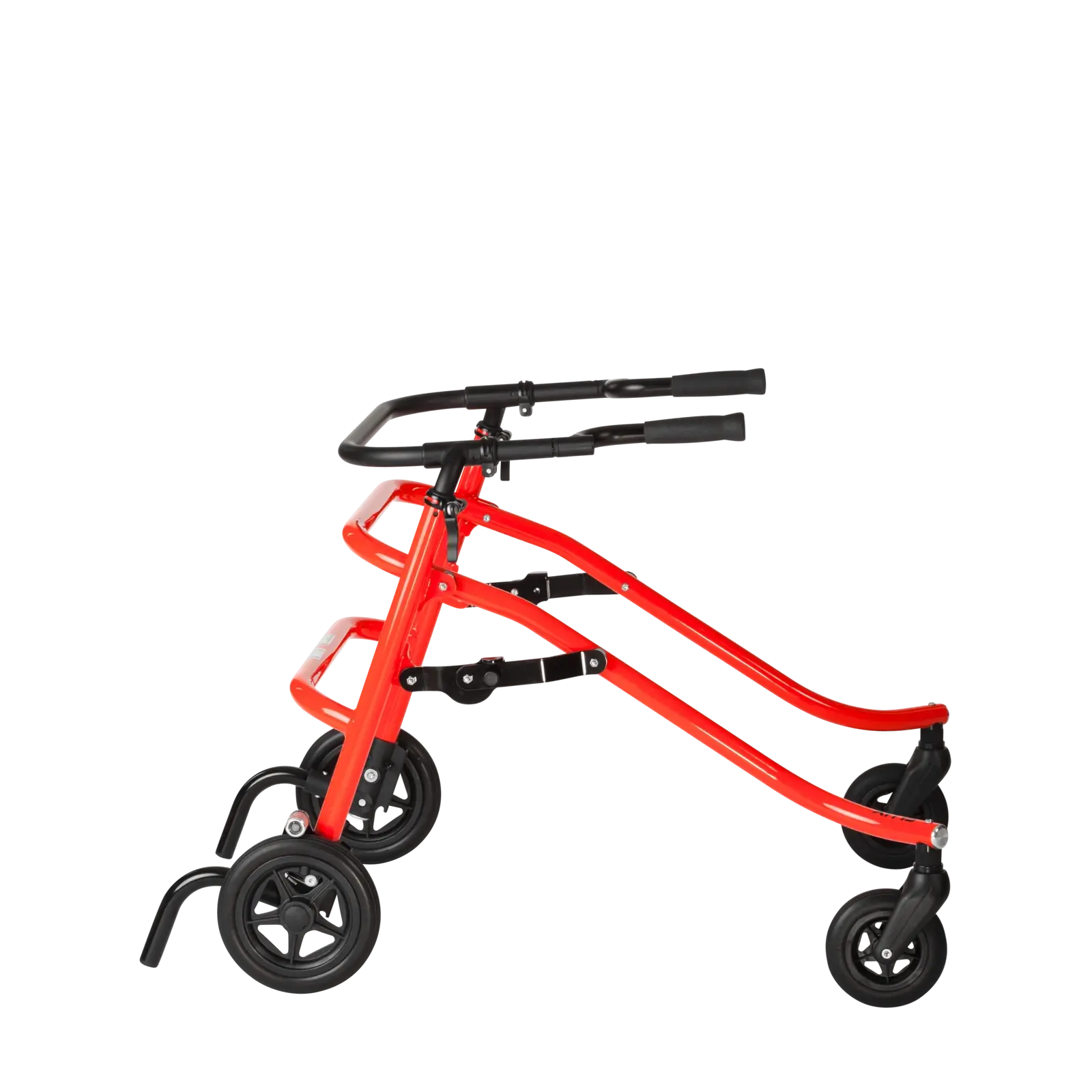

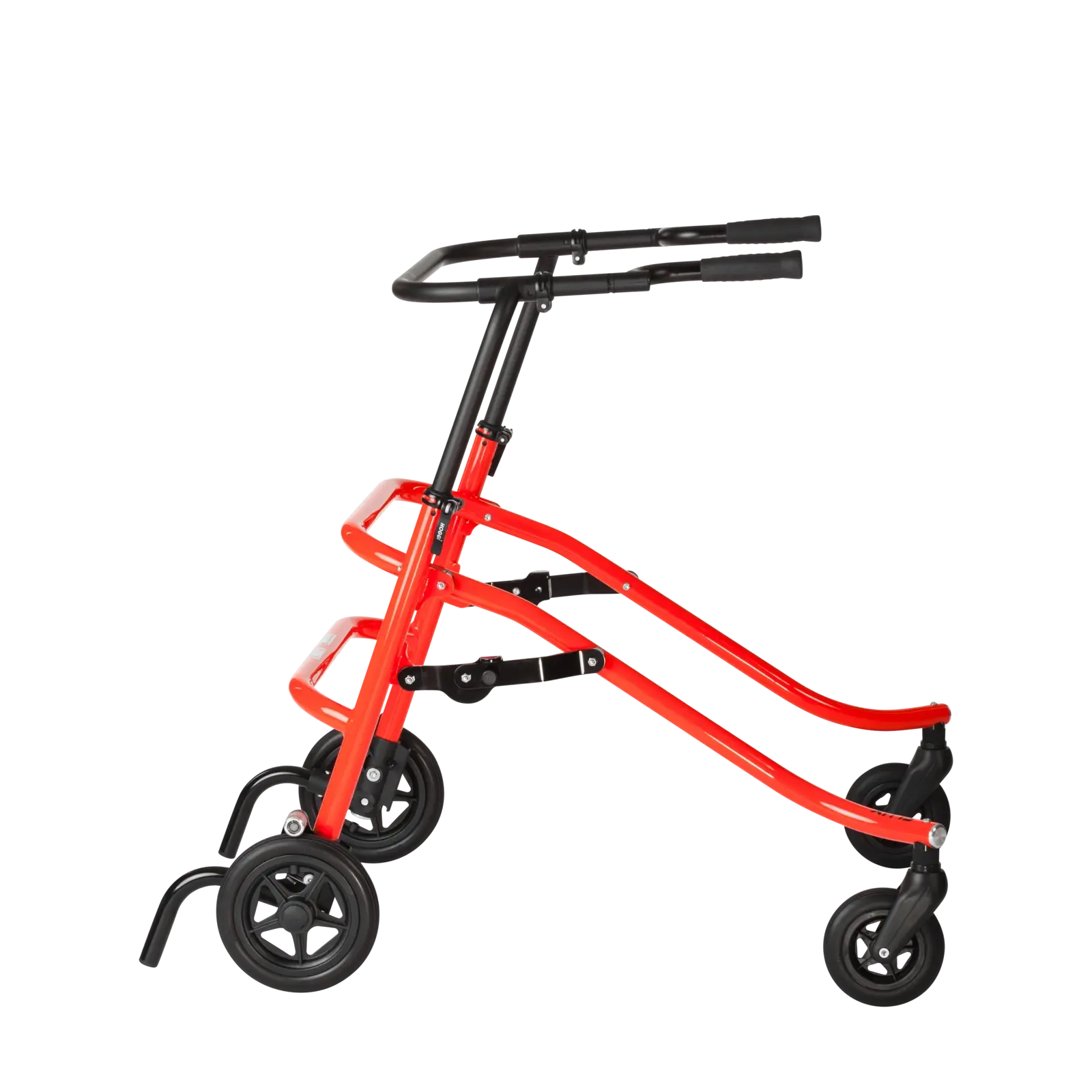

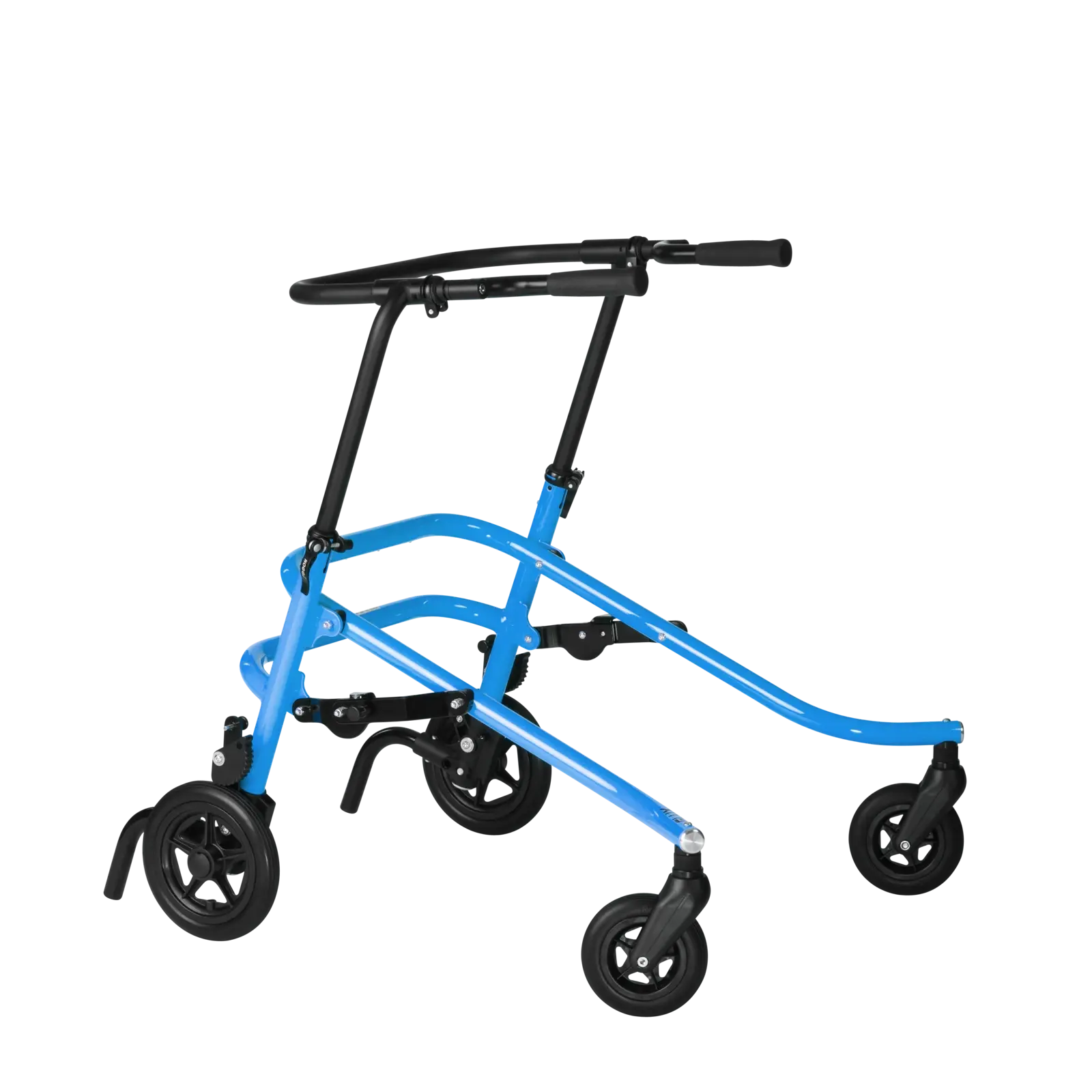

Flux Walker
Flux Walker
Functional benefits
Direction Wheel Locks
Lock immediately as soon as the rear wheels start rolling backwards (optional). The reverse-roll locks can be deactivated by a safety pin so that the Flux can roll forward and backward.
Spring Loaded Friction Brakes
Keep constant and reliable contact with the rear wheels.

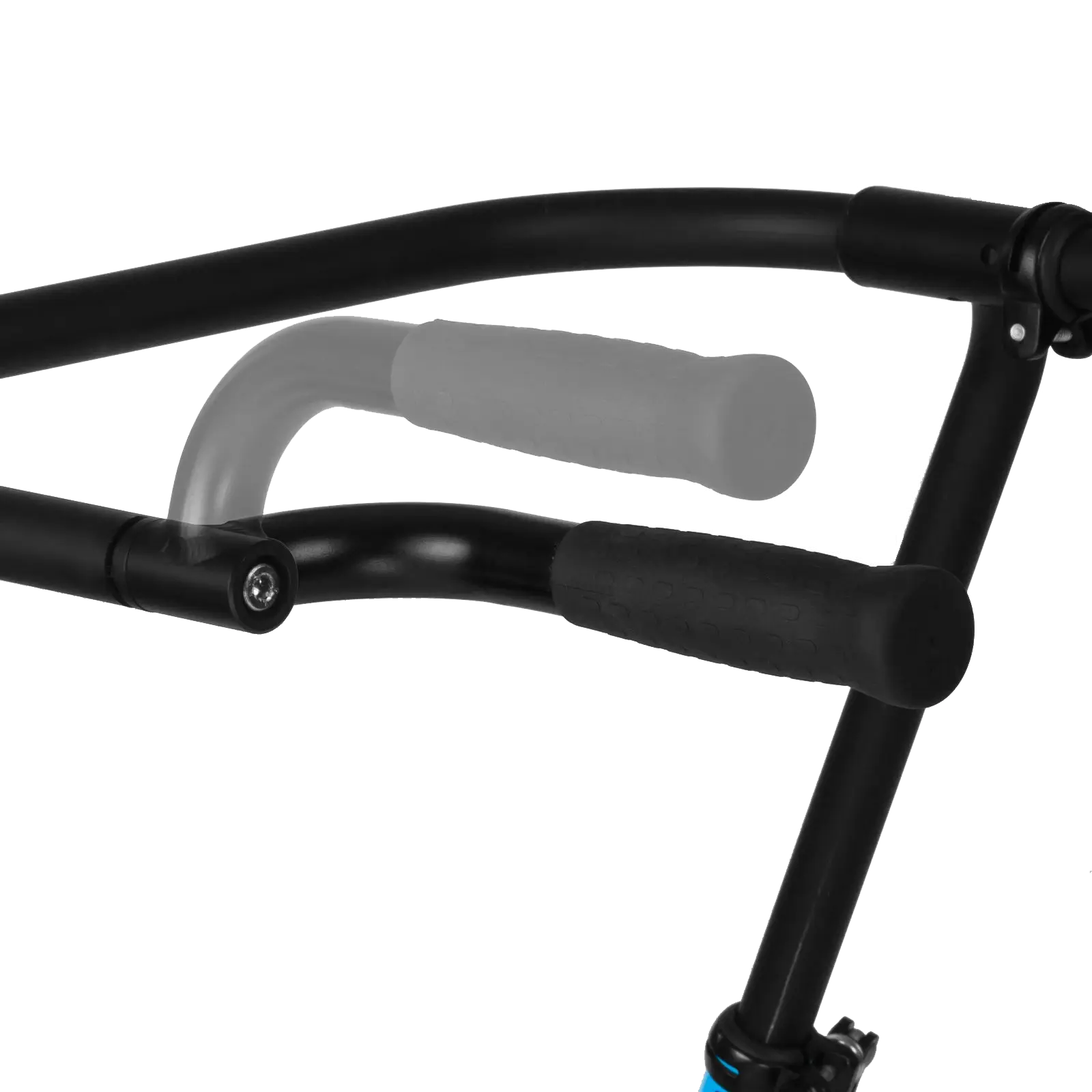

Grip Width Adjustment
The grip bar with universal grips (optional) allows an adjustment of the grip width.

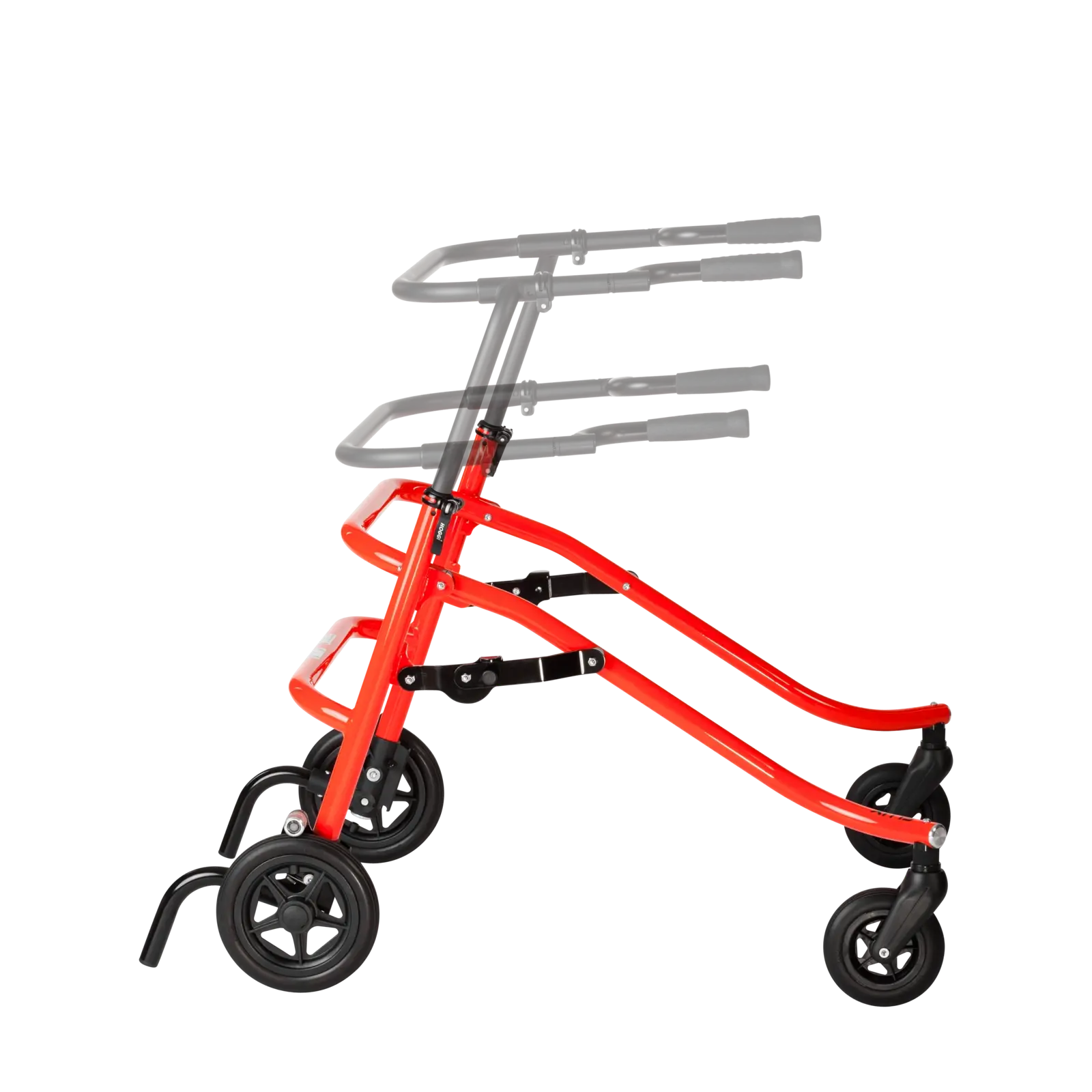

Grows with the child
Height adjustable grip bars make it easy to adjust to different body heights.

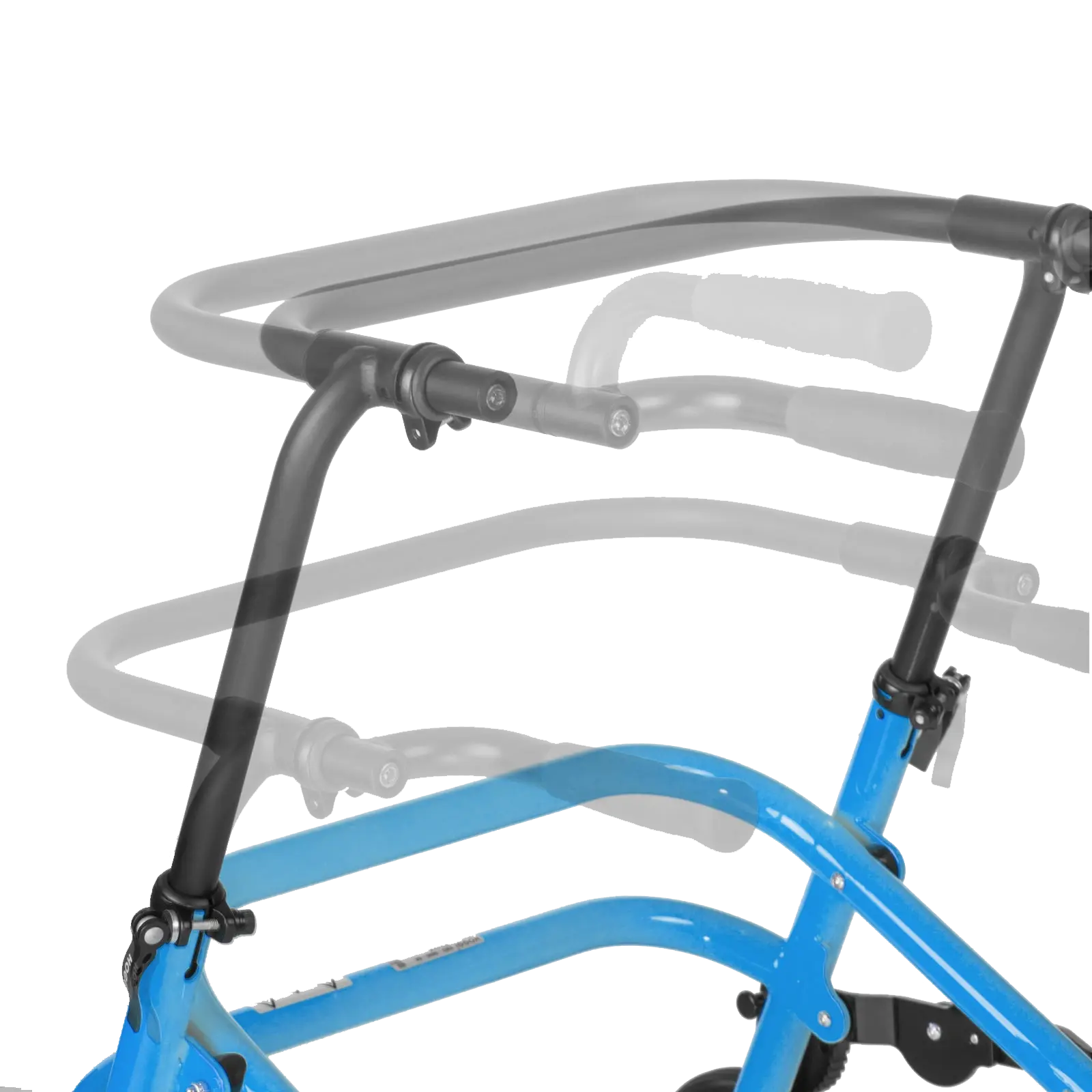

Ultimate Adjustability
Lock the grip bars in just the right position with easy adjustability!

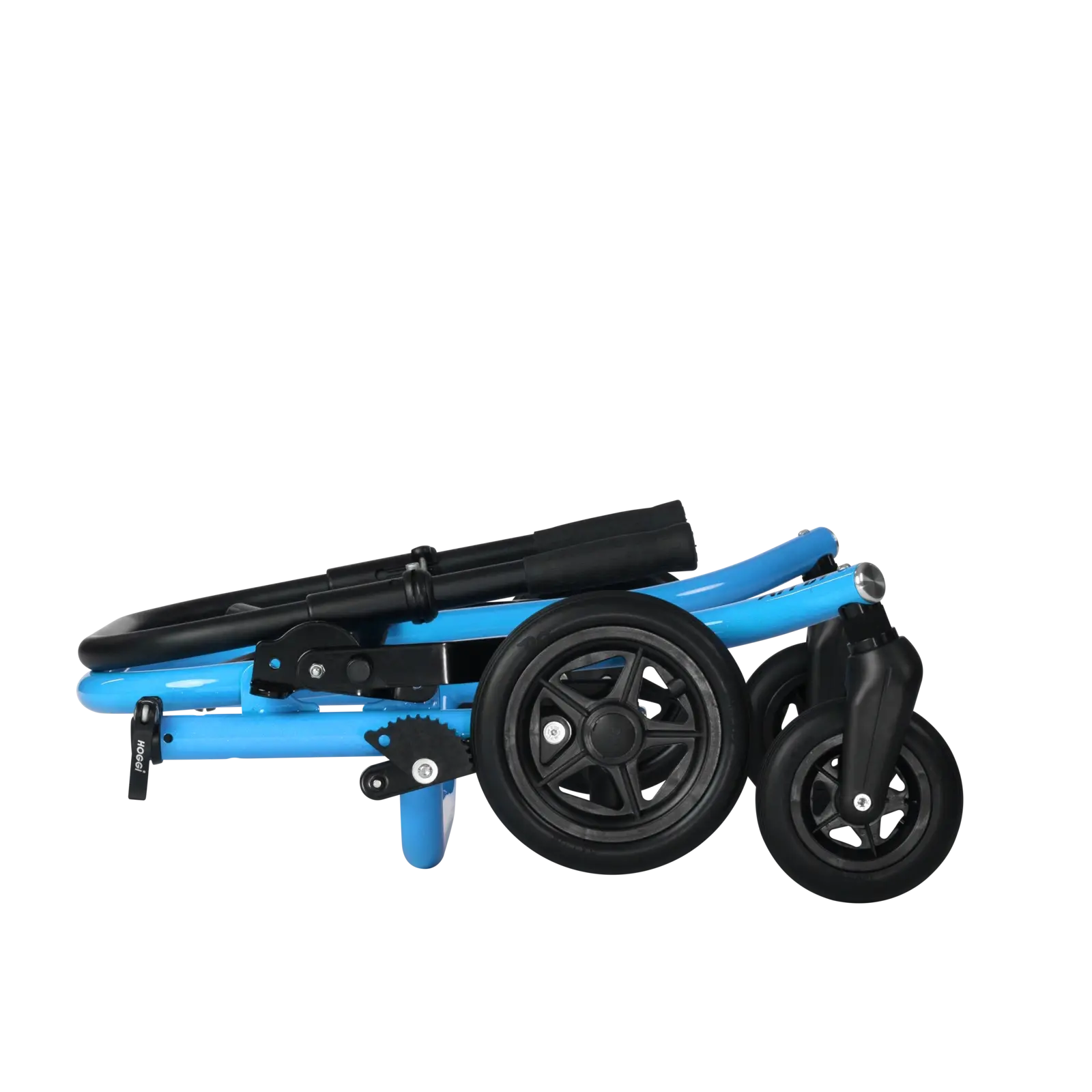

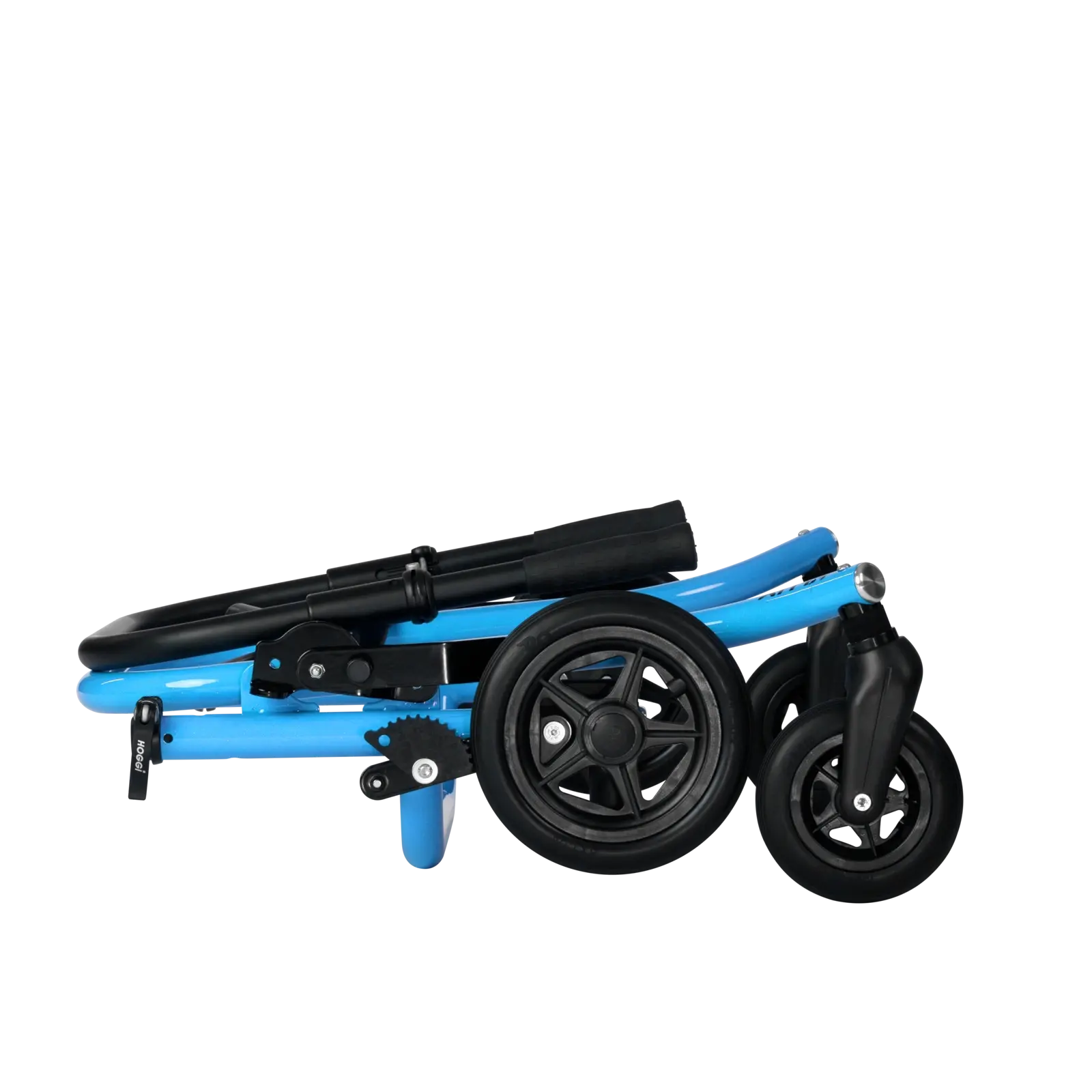

Compact Folded Size
The Flux can be folded down easy to store or transport.
Media
Flux by HOGGI
Measurements and Specifications
Standards Compliance
The Flux (Elite) Walker System complies with the relevant requirements of the ISO Standard 11199-2:2005, and has been evaluated as meeting the appropriate Australian Standards, by NovitaTech Regency Park in March 2012.

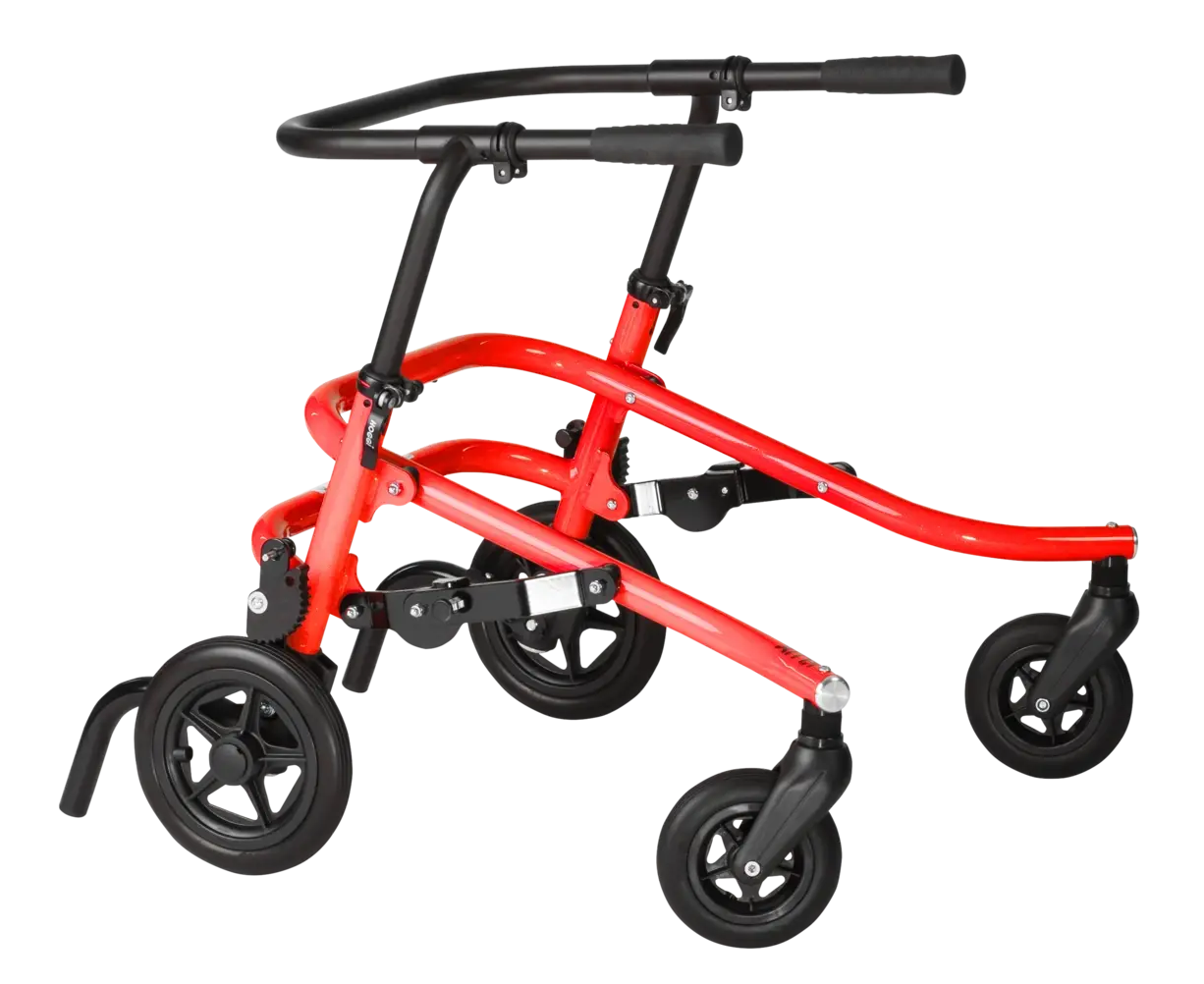

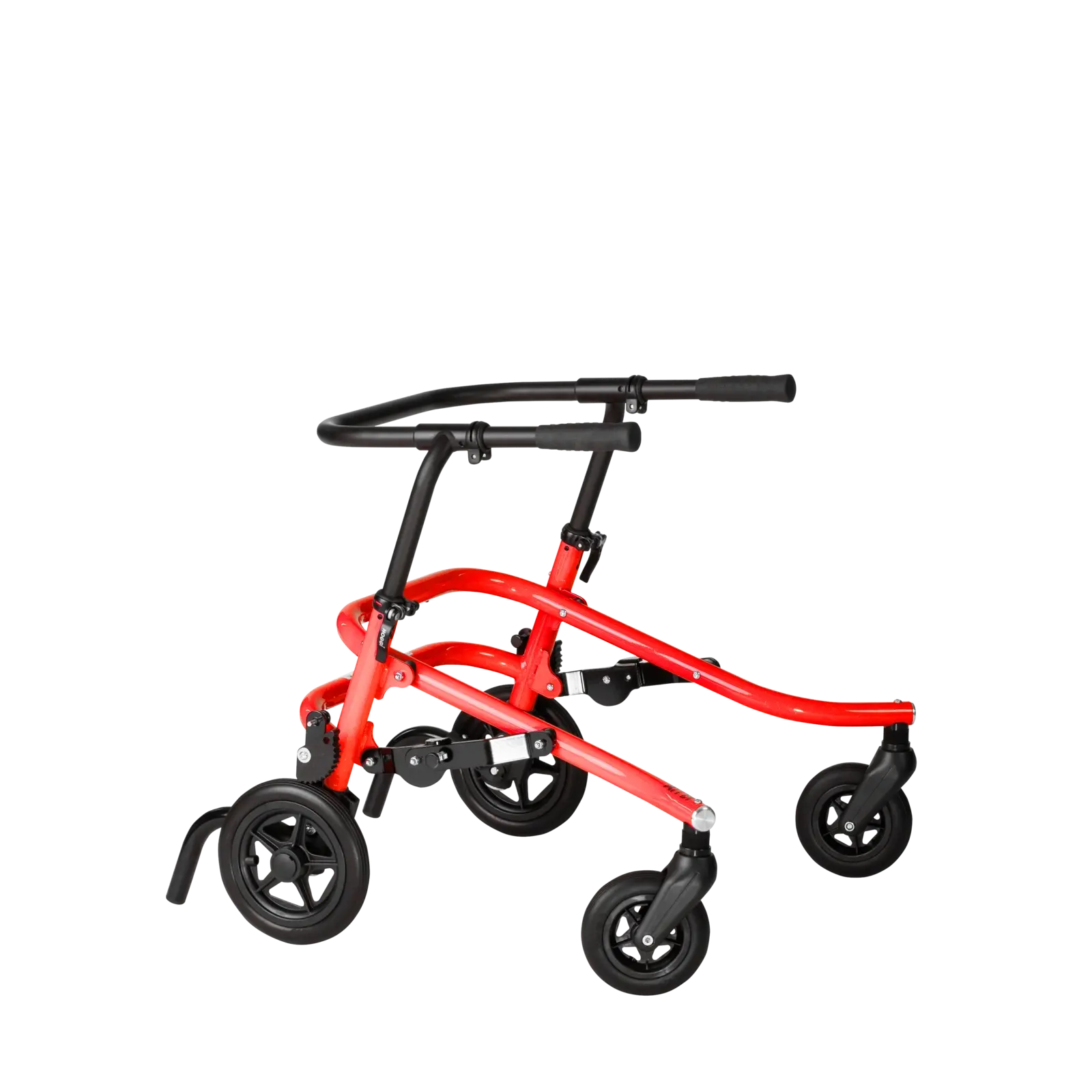

- Size 1
- Size 2
- Size 3
- Size 4

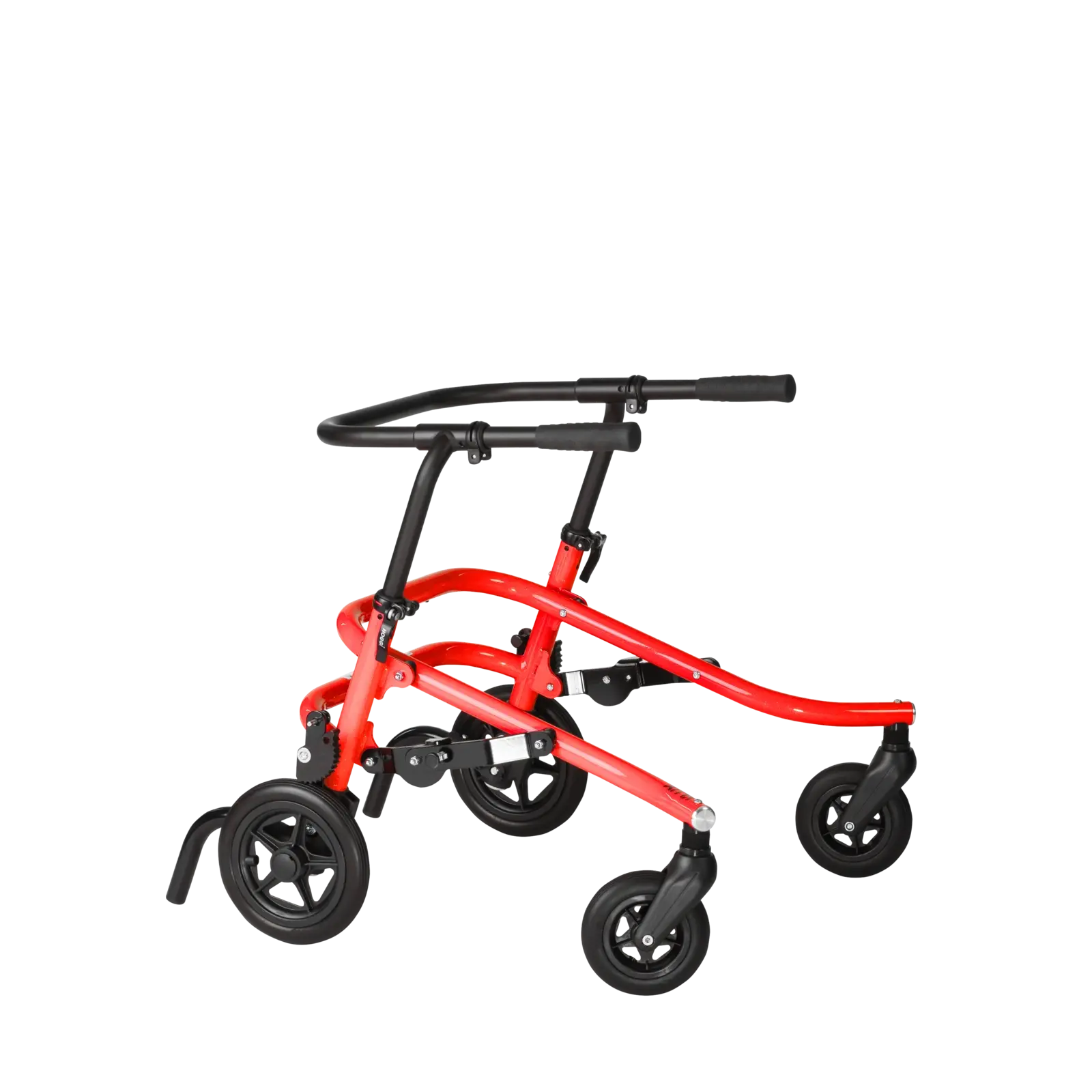

Code
#5641
Frame Colour
Luminous Red
Grip Height
43-68cm
Frame Width
64cm
Frame Length
65cm
Product Weight
6.5kg
Max Weight Capacity
60kg
Code
#5642
Frame Colour
Sky Blue
Grip Height
51-88cm
Frame Width
69cm
Frame Length
81cm
Product Weight
6.8kg
Max Weight Capacity
75kg

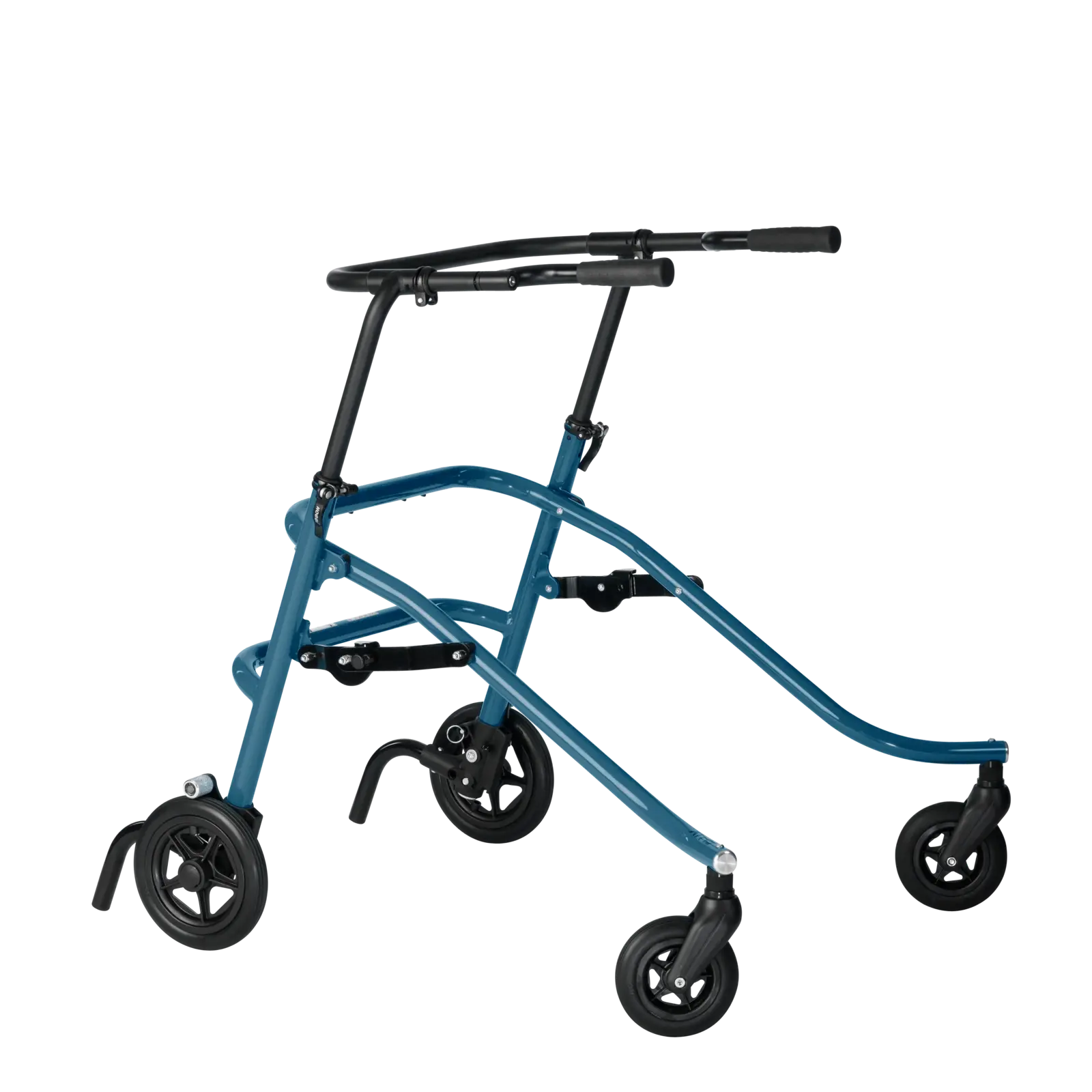

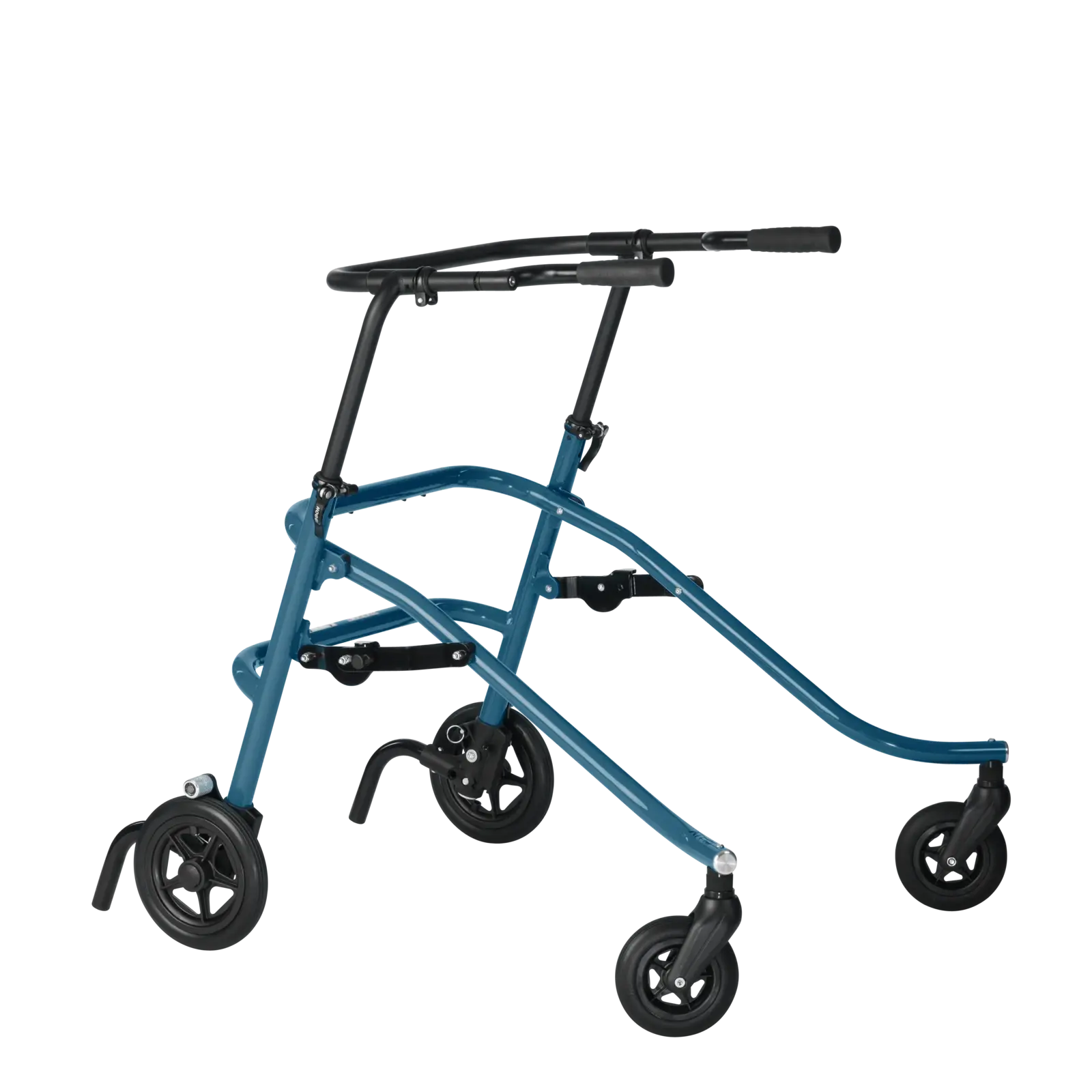

Code
#5643
Frame Colour
Gentian Blue
Grip Height
62-94cm
Frame Width
74cm
Frame Length
88cm
Product Weight
7.1kg
Max Weight Capacity
75kg

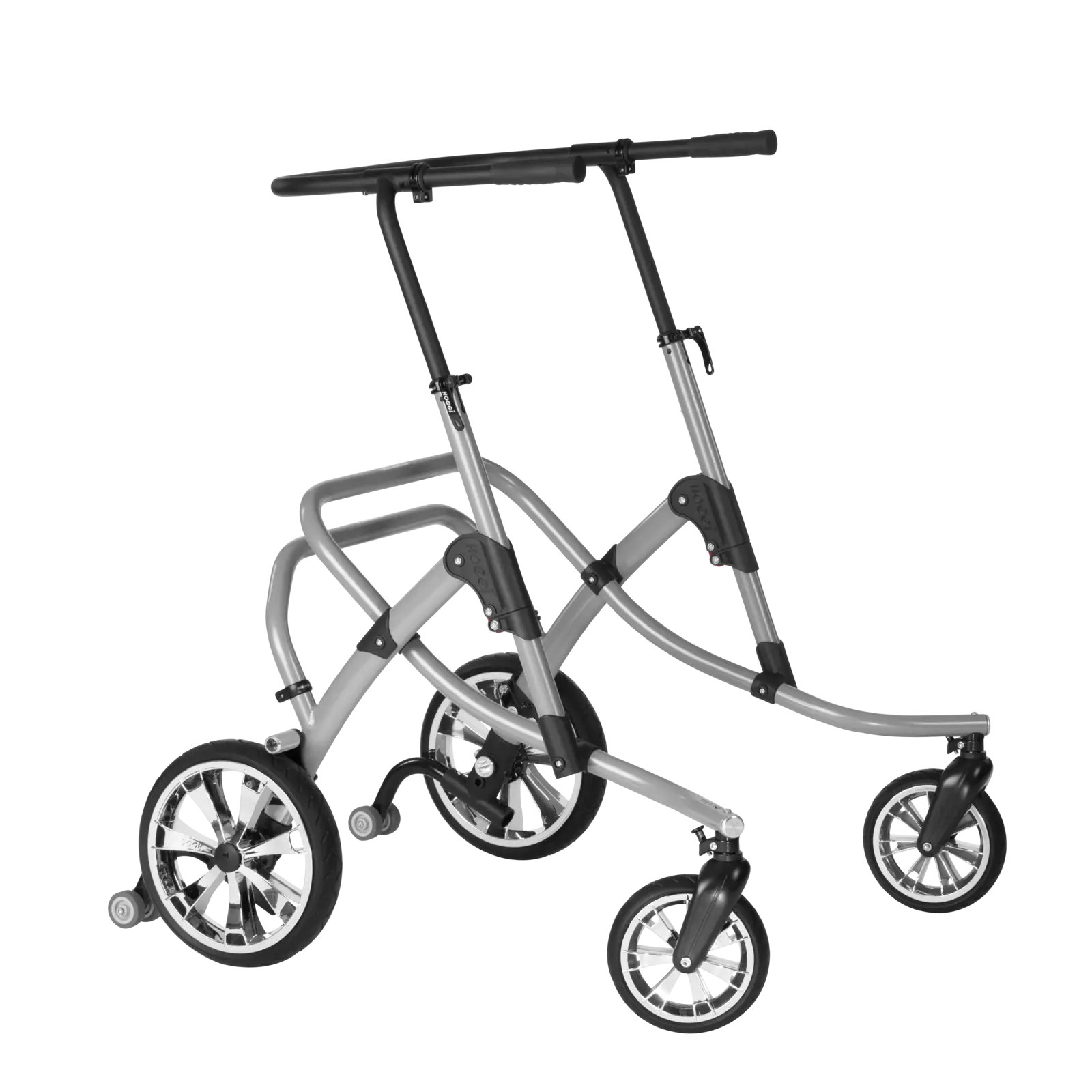

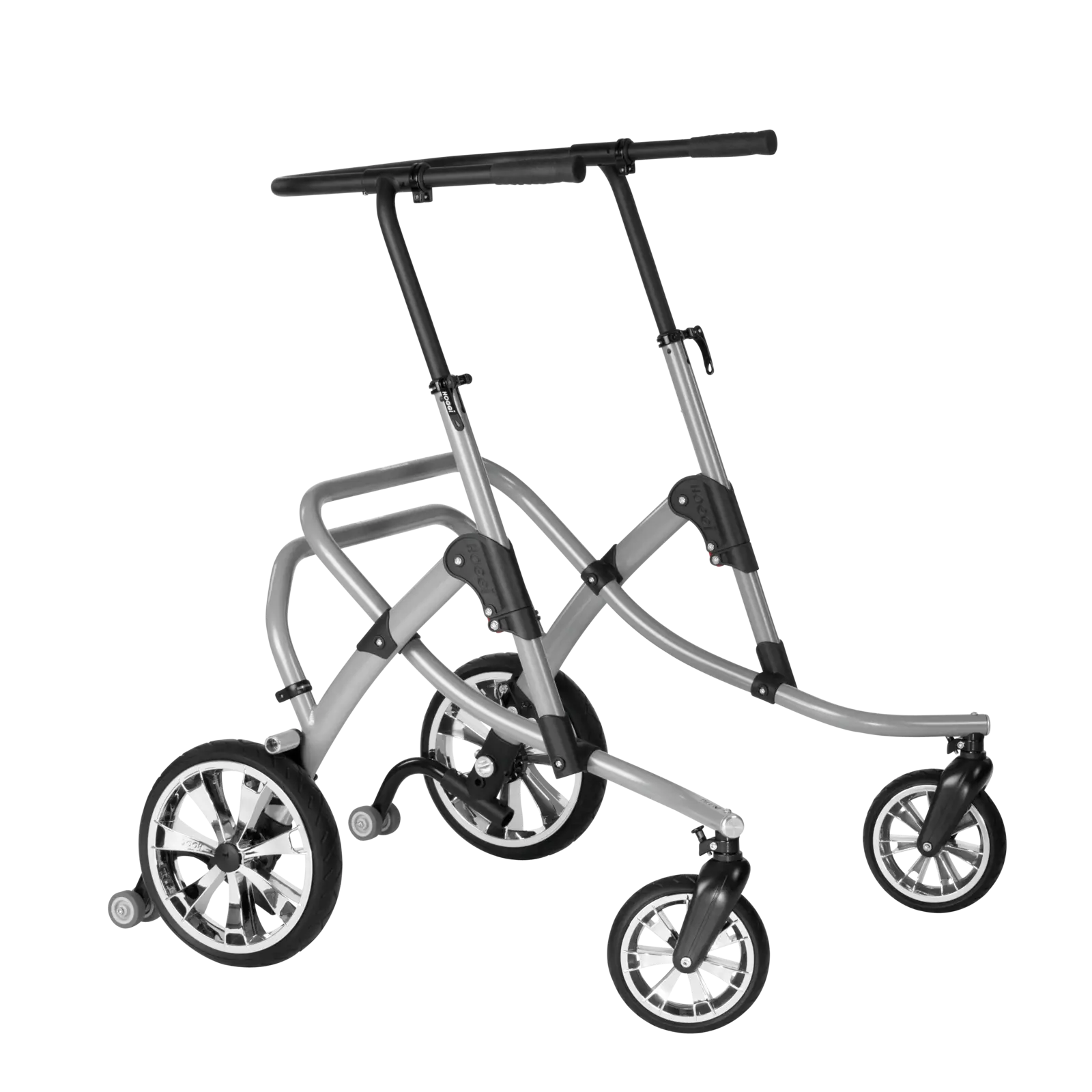

Code
#5644
Frame Colour
Grey Aluminium
Grip Height
75-102cm
Frame Width
78cm
Frame Length
91cm
Product Weight
9.1kg
Max Weight Capacity
9.1kg
Accessories
Flux Walker Anti-Tippers
Flux Walker Basket
Flux Walker Carrier
Flux Walker Direction Wheel Locks
Flux Walker Driving Brake & Wheel Lock
Flux Walker Dynamic Hip Support
Flux Walker Forearm Supports With Hand Grips
Flux Walker Fold-Up Seat
Flux Walker Friction Brakes
Flux Walker Hip/Bottom Pad
Flux Walker Sling Seat
Arm Retainer Strapping

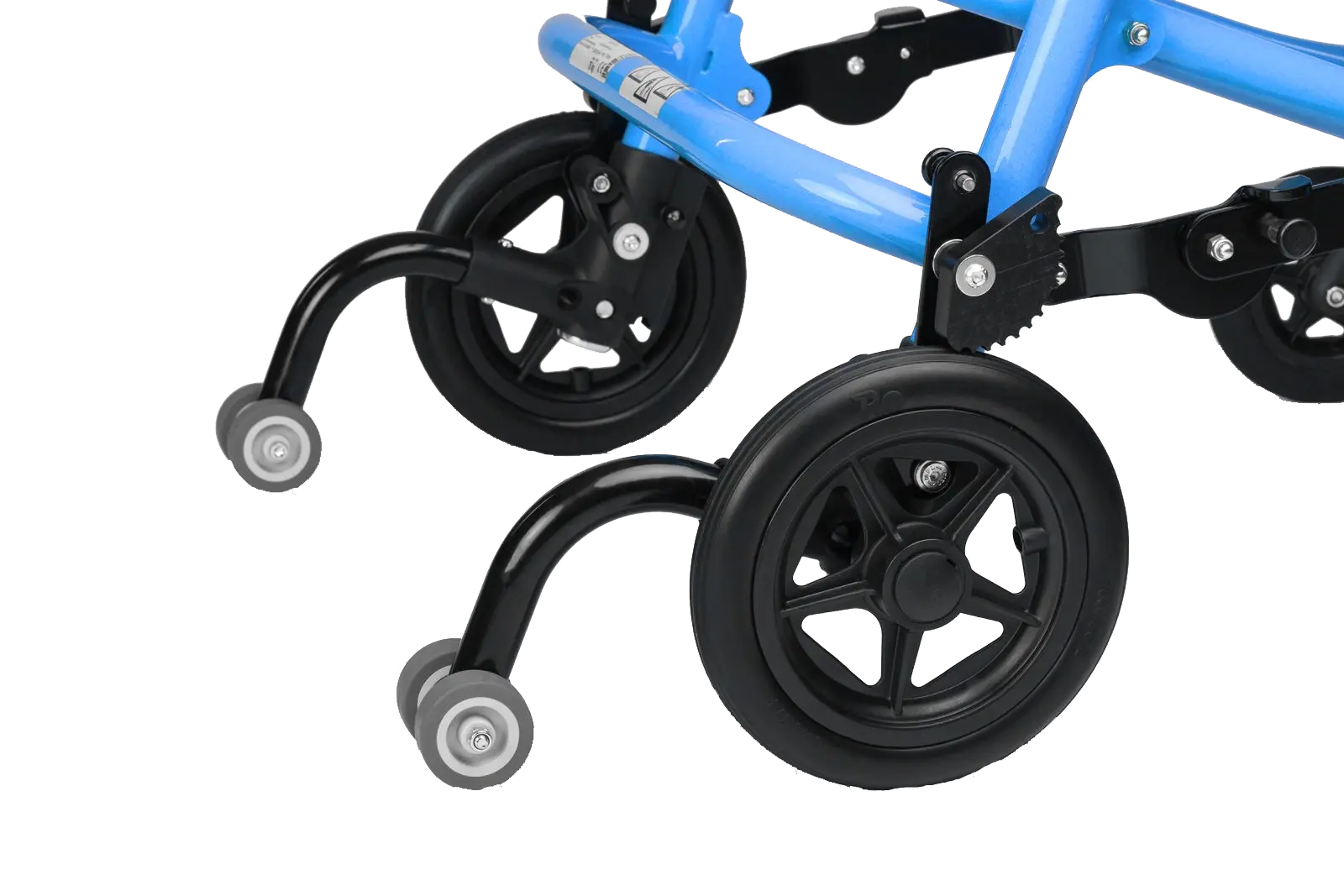

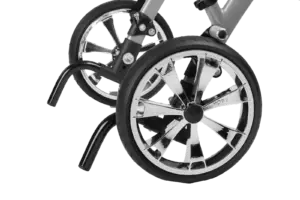

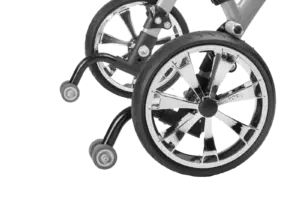

Flux Walker Anti-Tippers
There are two different styles of anti-tippers available for every size Flux Walker.
Product Codes:
Standard Size 1-3: 5640-8421-000. With Castors Size 1-3: 5640-8425-000,
Standard Size 4: 5640-8424-000, With Castors Size 4: 5640-8428-000
| Style | Size 1-3 | Size 4 |
|---|---|---|
| Standard Anti-tippers |  |
|
| Anti-tippers with castors |  |
 |

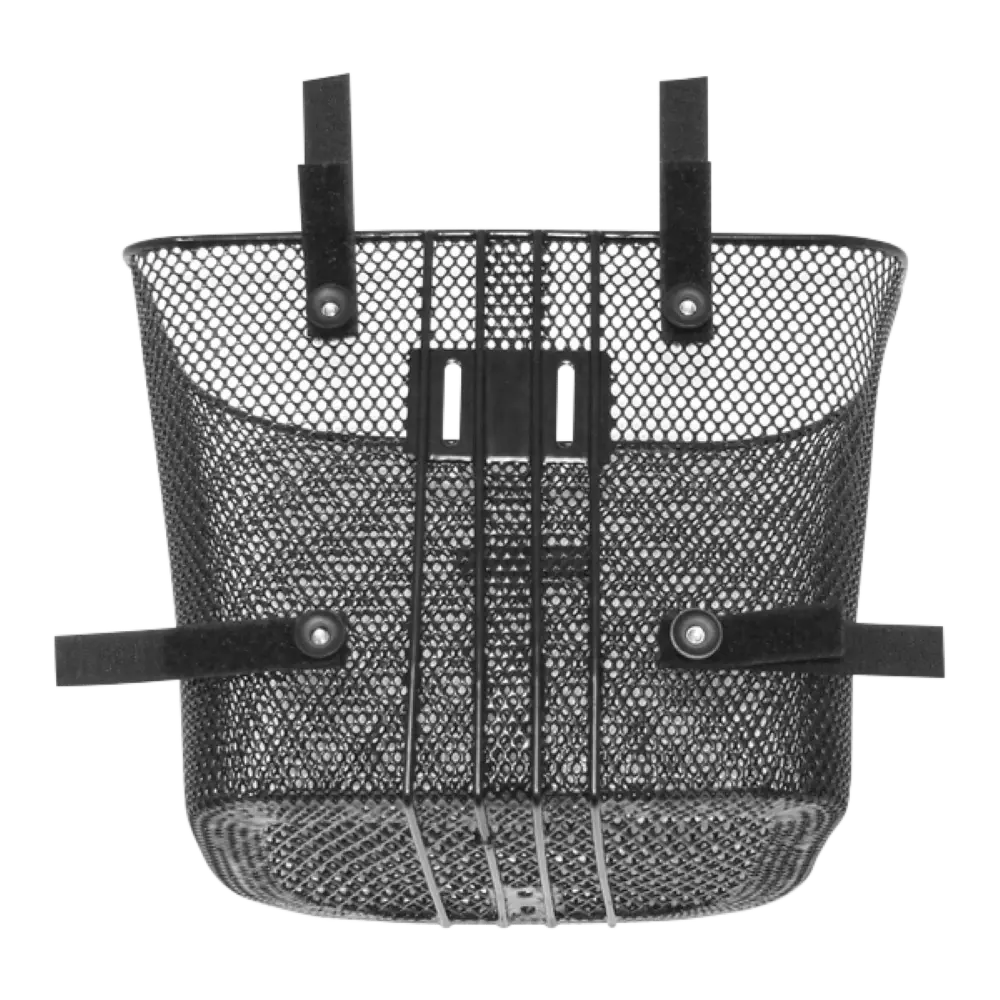

Flux Walker Basket
To be used in conjunction with carrier only.
Product Code:
5640-8051-000

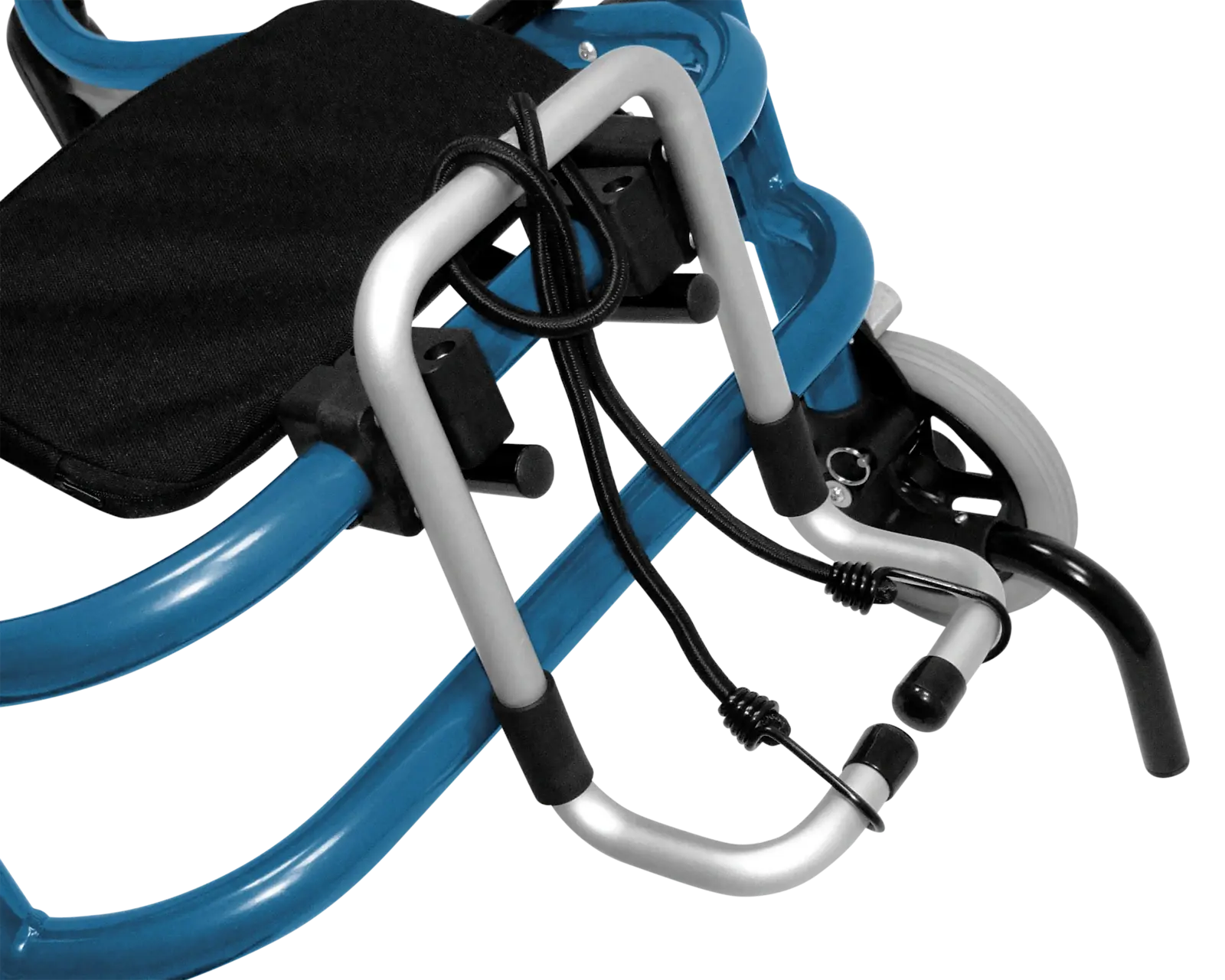

Flux Walker Carrier
The carrier is foldable and able to carry a schoolbag.
Product Code:
Size 1-2: 5640-8061-000
Size 3-4: 5640-8063-000

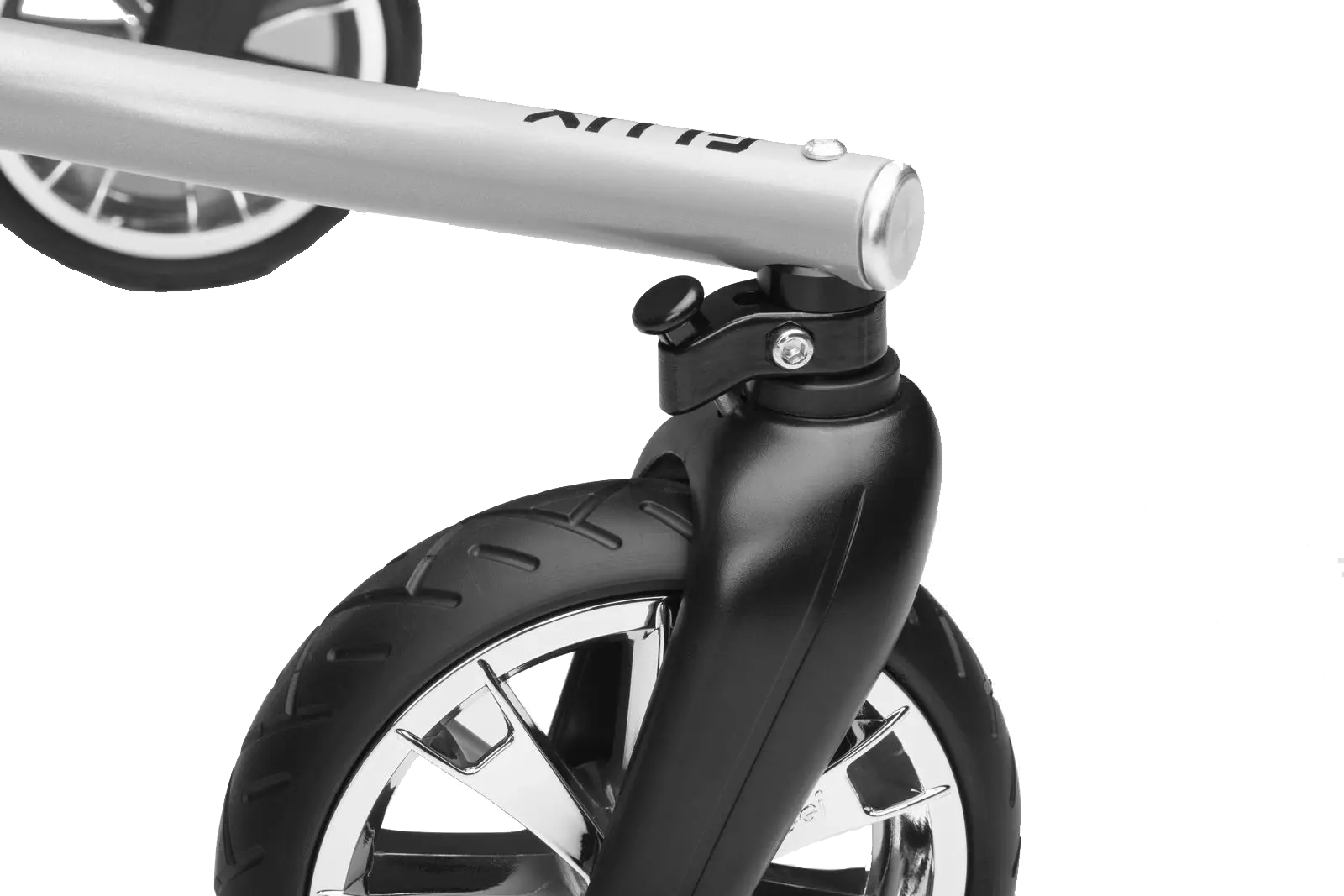

Flux Walker Direction Wheel Locks
Prevents the wheel from swivelling and promotes walking in a straight line.
Product Code:
5640-8440-000

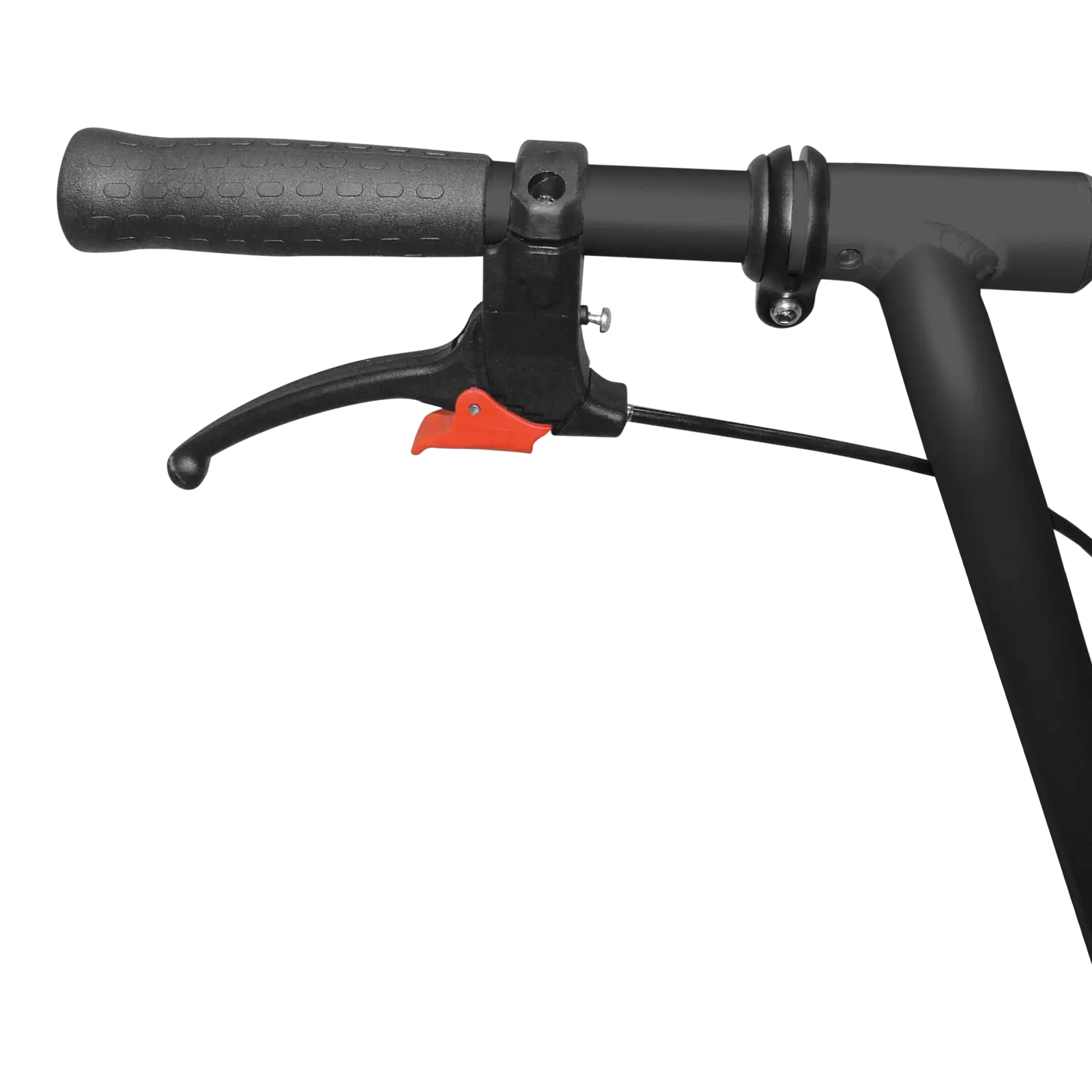

Flux Walker Driving Brake & Wheel Lock
Product Code:
Size 1-3: 5640-8451-000
Size 4: 5640-8454-000

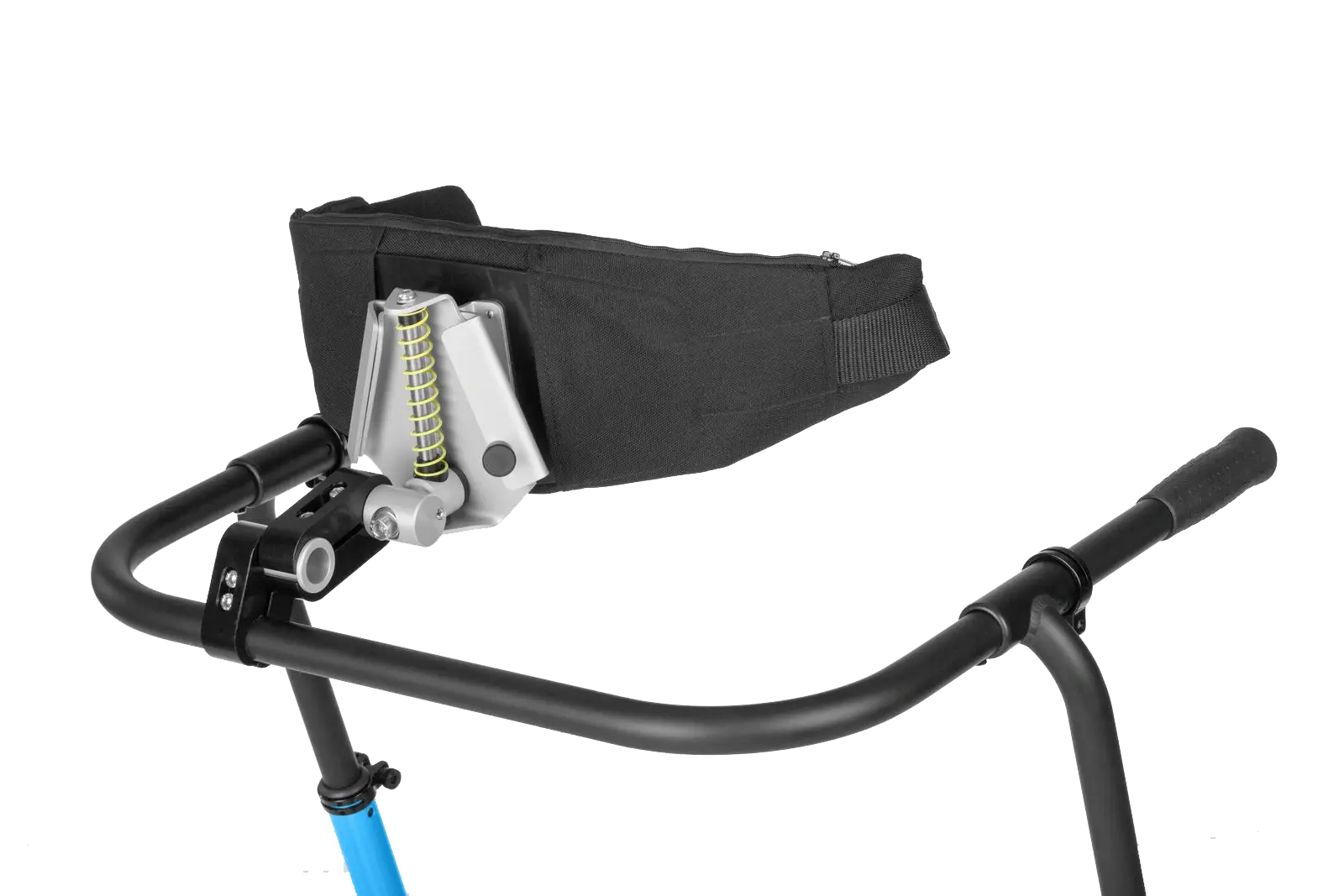

Flux Walker Dynamic Hip Support
Control for walking with minimal hand or forearm support
Product Code:
For Orthoses: 5640-1951-000
Soft Suspension: 5640-1952
Hard Suspension: 5640-1953

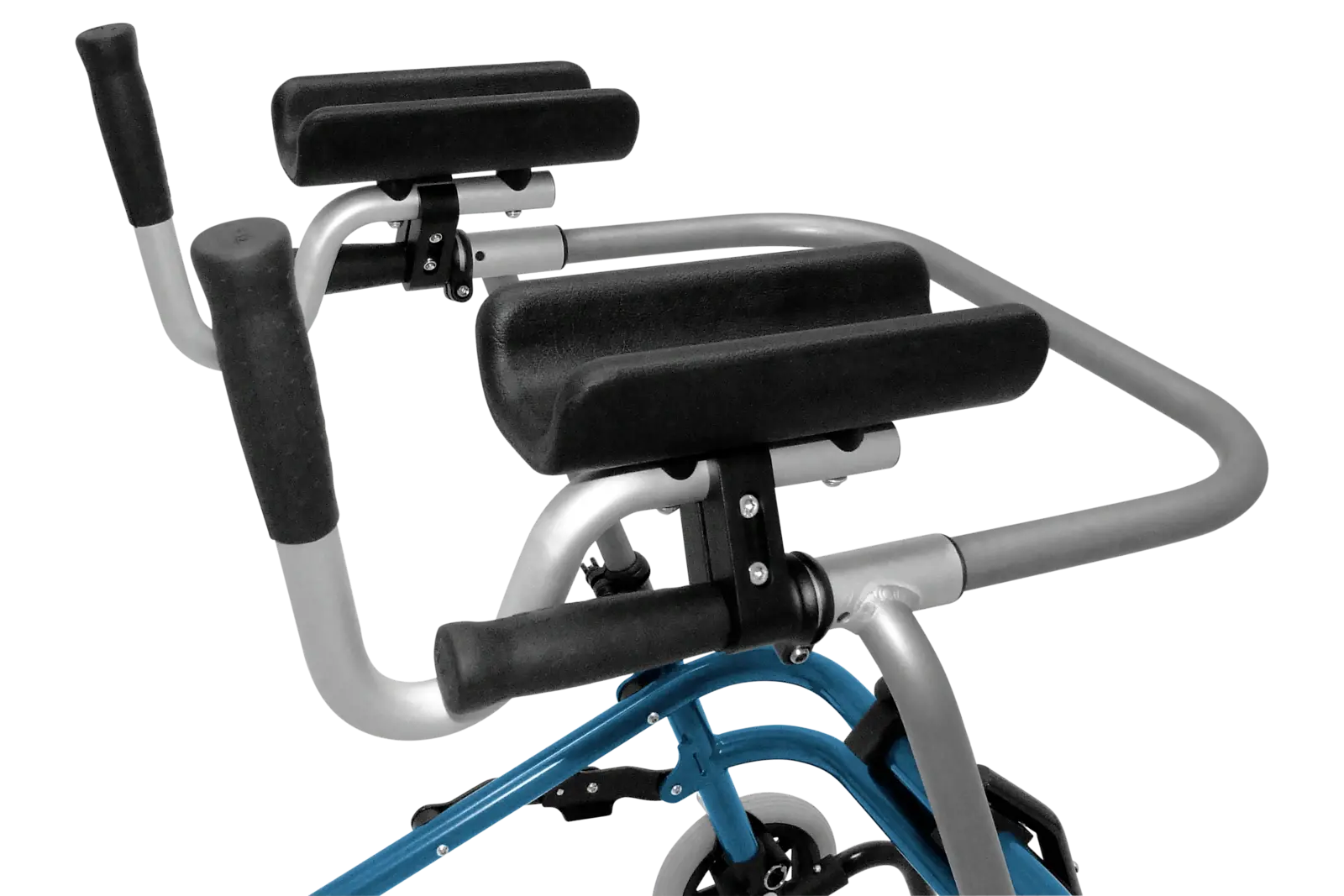

Flux Walker Forearm Supports With Hand Grips
Product Code:
Size 2: 5640-5501-000
Size 3: 5640-5502-000

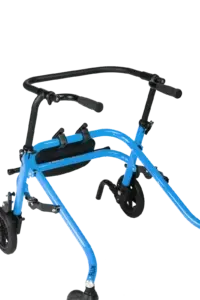

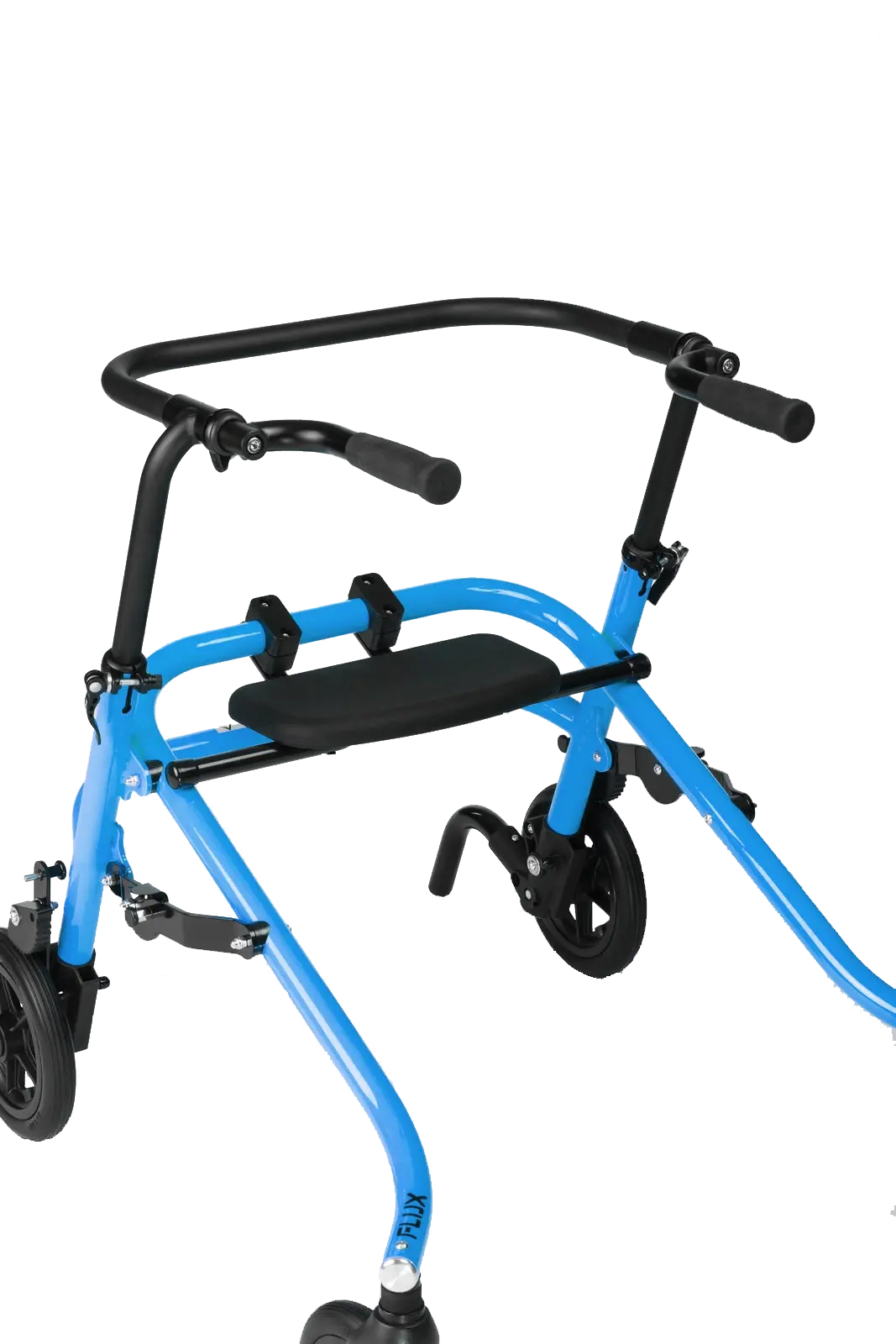

Flux Walker Fold-Up Seat
Fold-up seat
Product Code:
Size 1-3: 5640-0201-000
Size 4: 5640-0204-000

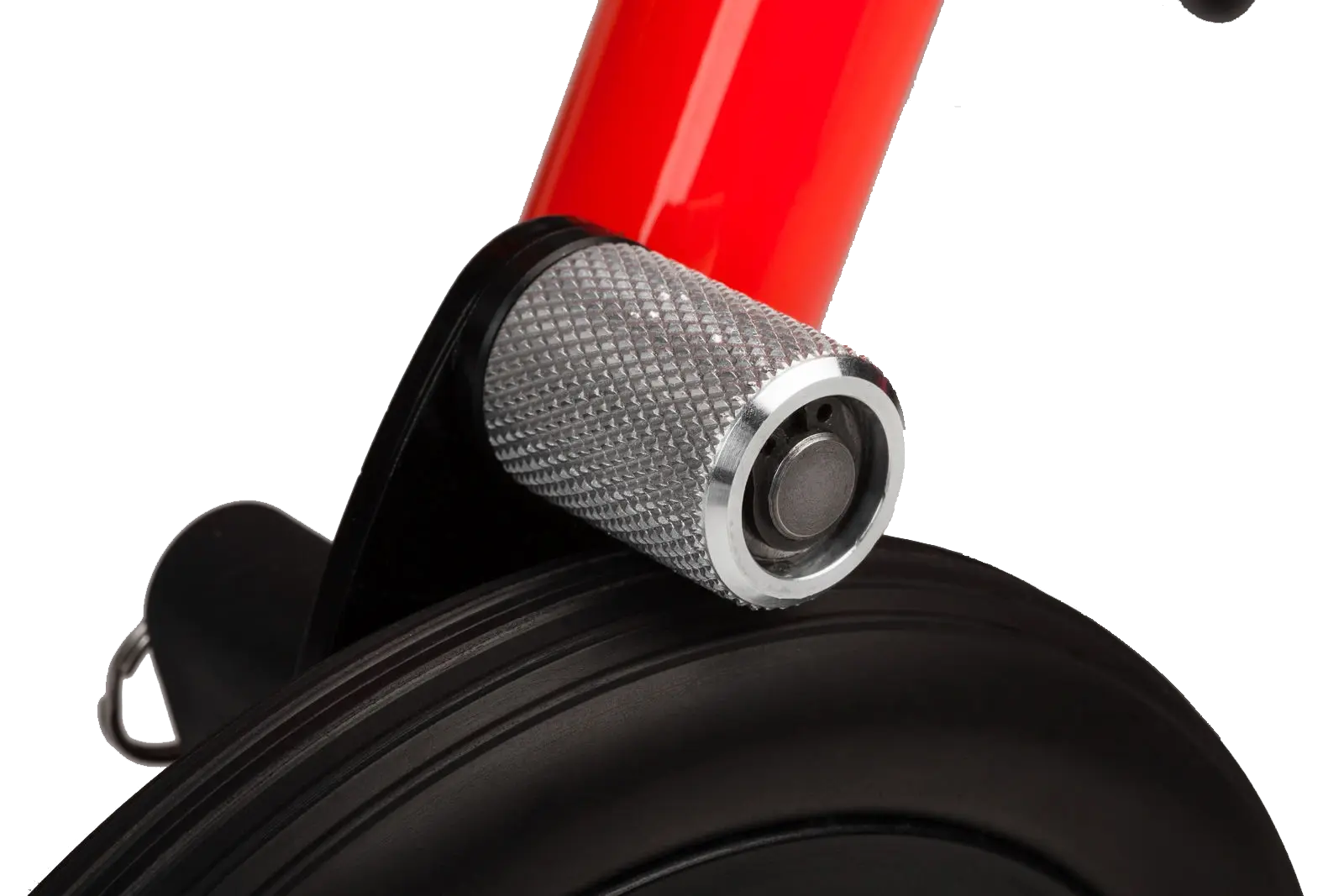

Flux Walker Friction Brakes
Free-wheeling system
Product Code:
Size 1 – 3: 5640-8461-000
Size 4: 5640-8464-000
To fit size 1 and 2
To fit size 3
To fit size 4

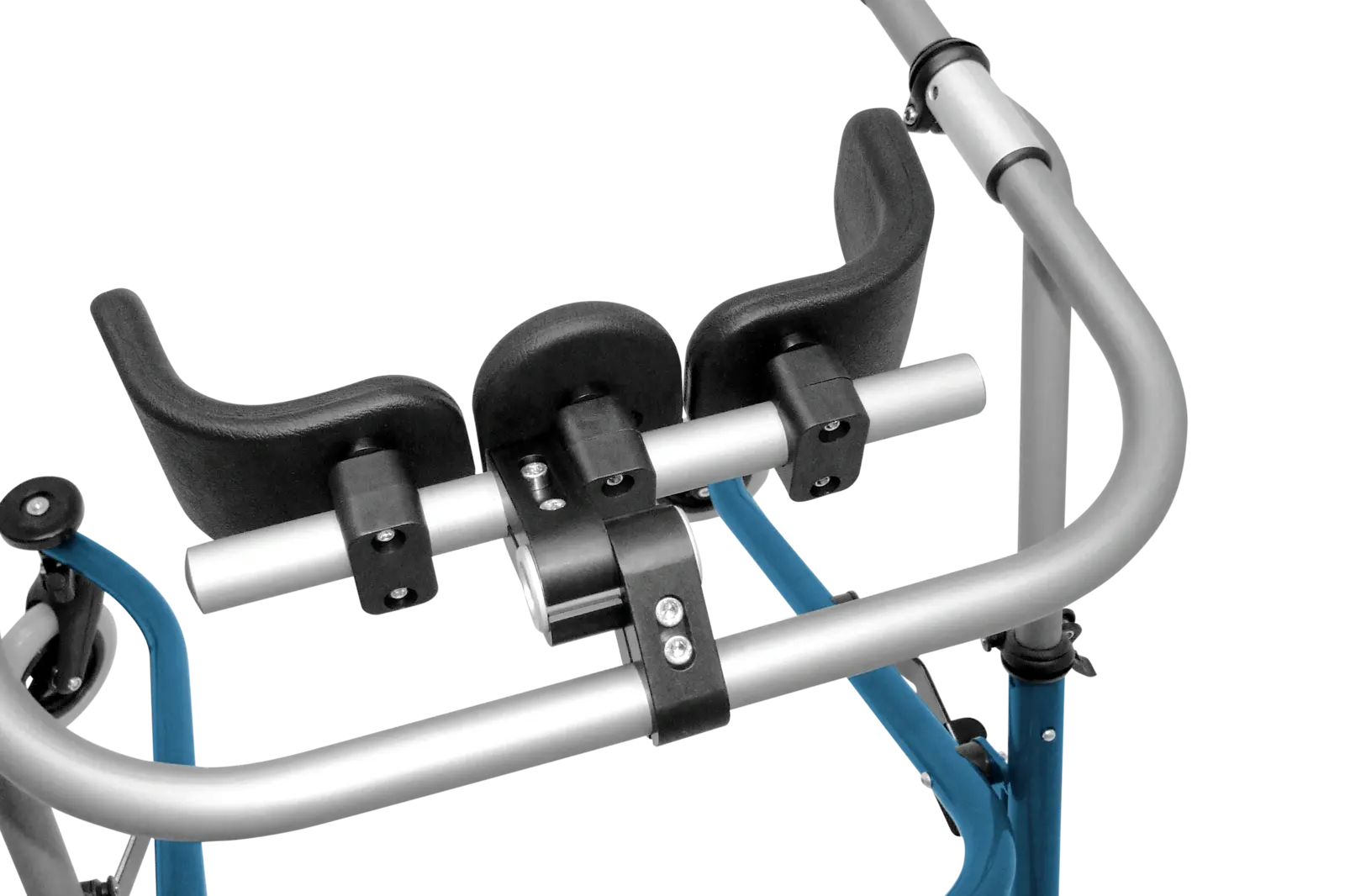

Flux Walker Hip/Bottom Pad
Product Code:
5640-1900-000

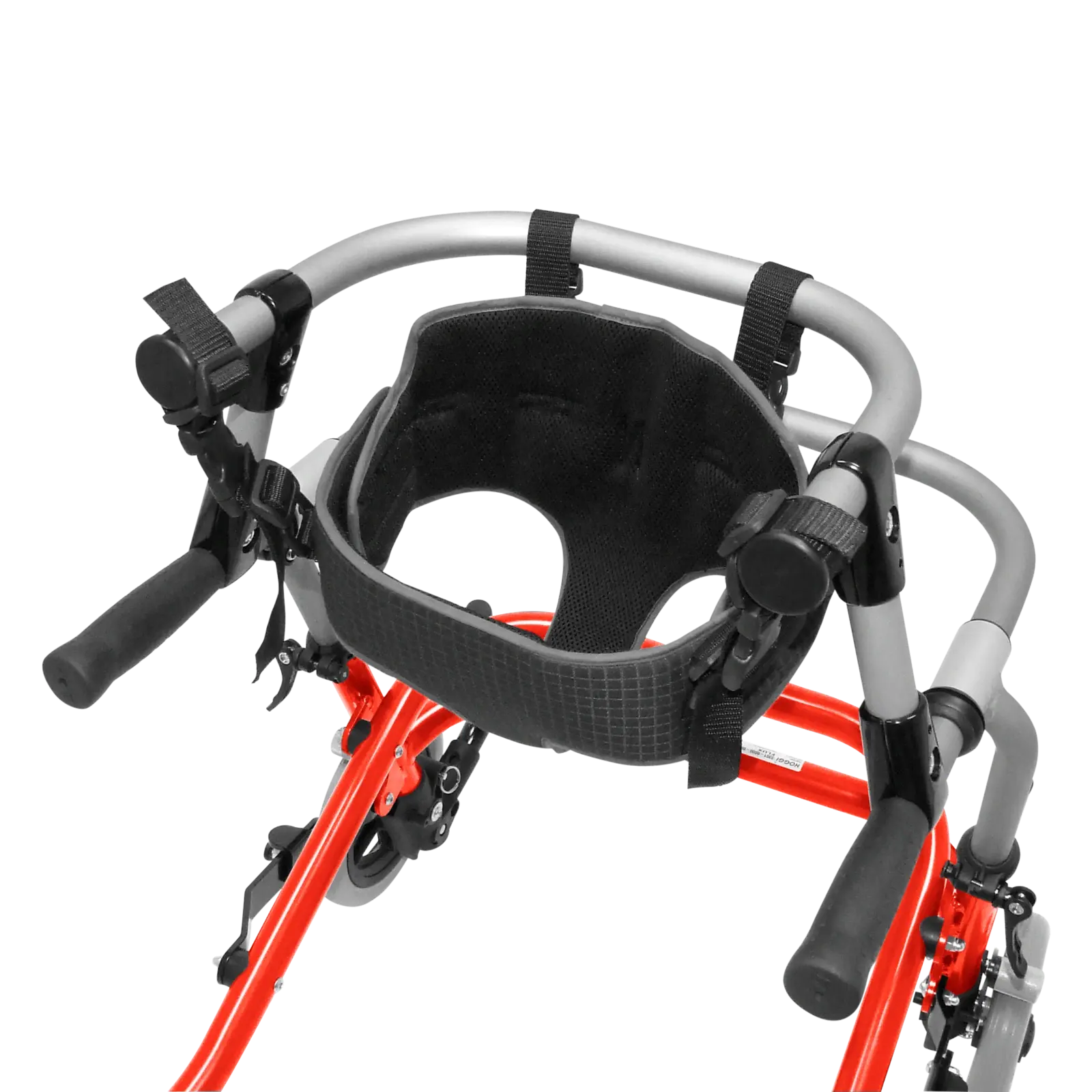

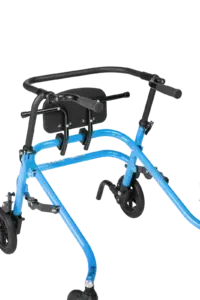

Flux Walker Sling Seat
Requires Sling Seat Rail for use.
| Hip Belt Size | Code |
|---|---|
| Hip Size 57-77 cm | 5640-1921-000 |
| Hip Size 73-103 cm | 5640-1922-000 |
| Sling Seat Rail Size | Code |
|---|---|
| To fit Size 1 | 5640-1931-000 |
| To fit Size 2 | 5640-1932-000 |
| To fit Size 3 and 4 | 5640-1933-000 |

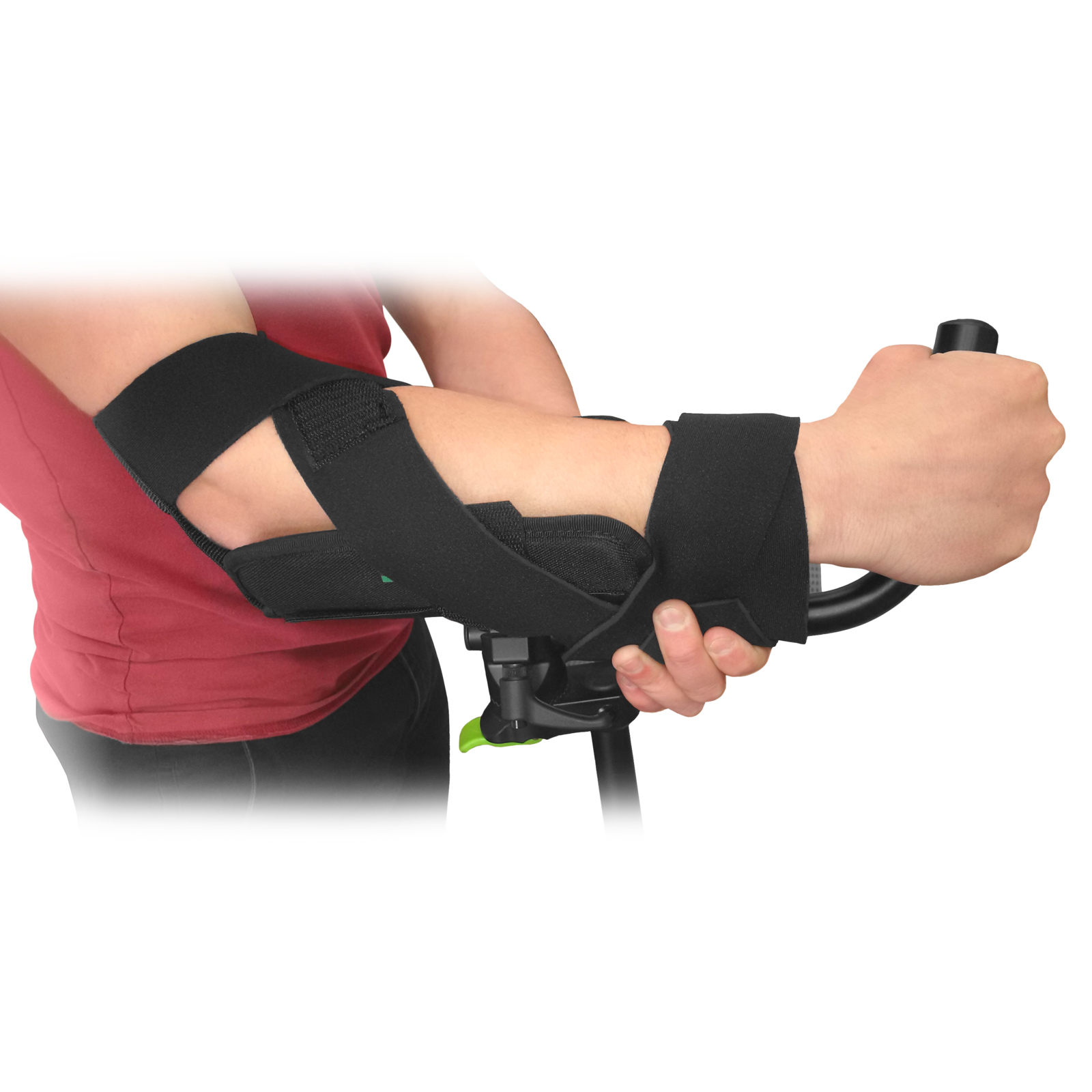

Arm Retainer Strapping
Arm gutter strapping for Flux Walker and Grillo Gait Trainer.
Product Code:
5640-6865-000
