Spex XLella
Bariatric Hardware

Mounting hardware tested and rated for heavier users.

There are two options of mounting hardware for bariatric users, Fixed Mount and Quick-Release to suit individual needs.

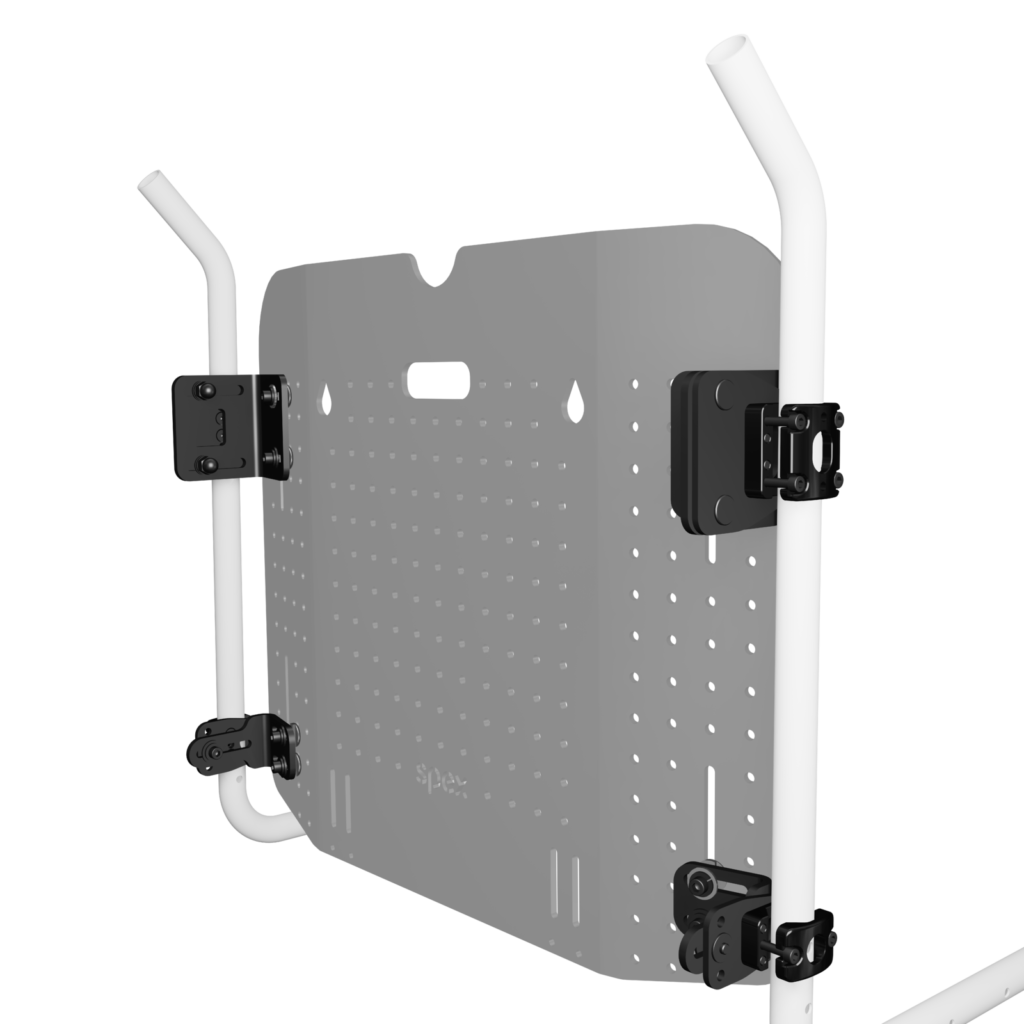

Fixed Hardware is a default hardware choice for simplicity, with lower hardware weight. Fixes the back to the wheelchair for sturdy installation. Can easily be set in flipped configuration to allow greater seat depth adjustment.

Quick-Release Hardware allows easy removal of back support for use with folding wheelchairs or in situations the back is required to be removed.

Both models of hardware are transport certified and have a weight capacity of up to 300kg.

Hardware
Options
XLella Fixed Mount Bariatric Hardware XLella Quick-Release Bariatric Hardware


Default hardware choice for simplicity, with lower hardware weight. Fixes the back to the wheelchair for sturdy installation. Can easily be set in flipped configuration to allow greater seat depth adjustment.

 Allows easy removal of back support for use with folding wheelchairs or in situations the back is required to be removed.
Specifications
Specifications
Compatibility Chart
HARDWARE XLELLA FIXED MOUNT XLELLA QUICK RELEASE
WEIGHT 1.1kg 1.4kg
POINTS OF FIXATION 4
FITS CANE SIZES 19-26mm
BACK ANGLE ADJUSTMENT +/-10°
SEAT DEPTH ADJUSTMENT 0-30mm
Flipped Orientation: 70-100mm
OVERALL WIDTH ADJUSTMENT 50mm
WEIGHT CAPACITY 300kg
CODE 1259-2500-100 1259-2505-100



Hardware in flipped orientation
for greater seat depth.

Compatibility Chart

This chart outlines XLella compatibility with wheelchair sizes for each hardware option.

Transport Certified All XLella Back Supports and hardware configurations are suitable for transport in a vehicle when mounted on an appropriate wheelchair frame.
