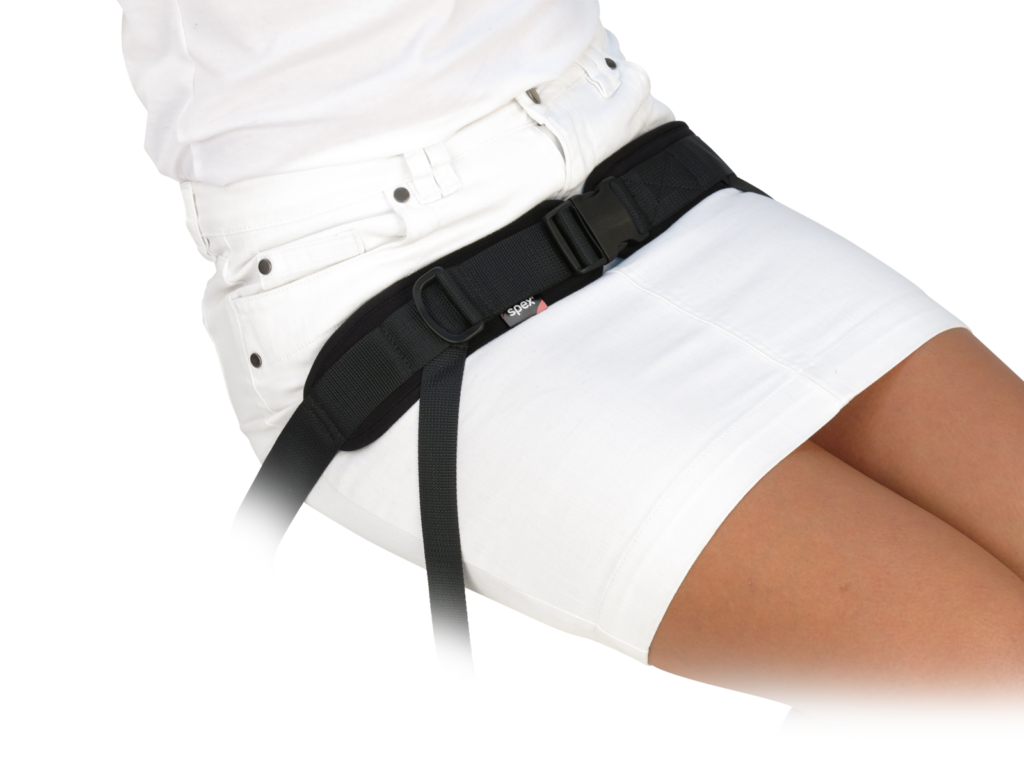

Spex 4 Point Centre Pull Padded Hip Belt

Make an enquiry

4 Point

Centre Pull

Padded Hip Belt

The 4 Point Centre Pull Padded Hip Belt from Spex with four points of attachment to the wheelchair offers superior anterior support for the user’s pelvis suitable for enhanced positioning requirements.

The four attachment points mean that the main straps position the belt and the subordinate straps anchor the belt in position for enhanced support and prevents the belt from sliding up into the abdomen or twisting.

The Centre Pull tensioning function of the hip belt is easy to operate for both the user or caregiver by pulling on the strap away from the buckle. The easy-to-use system suits clients with low muscle tone or weakness.

Manufactured with top precision quality, this hip belt has comfortable cushioned pads with unique soft edge binding.

Gallery

Functional

Benefits

Different Buckle Options

Full range of buckle options are available to suit the needs of the client and caregiver. From standard simple-release options like the Side Release and Centre Release buckles or an even easier Easy Release Latch buckle for user's with limited hand function, or options for behavioural clients with inquisitive hands such as the Anti-Escape and Pen Popper buckles! There is a solution for everyone!

Comfortable Neoprene Cushioned Support Pads

The Spex Hip Belt range feature a soft padded neoprene support surface which provides superior comfort for the user. The high-quality neoprene material offers the perfect amount of stretch to allow the user to move within the support and remain functional. The soft support pads offer excellent resilience, water resistance, and conform to the shape of the user's body without creasing.

Soft Binding

Smooth, soft binding around the edge of the pads is comfortable against sensitive skin and ensures the hip belt doesn't irritate the user.

Close up of Spex Hip Belt Durable Ridge Woven Webbing Square Medium on a white background.

Durable Webbing

Durable webbing is ‘ridge’ woven for maximum grip once adjusted so that it doesn't loosen or give way over time. This makes it a great option for high tone clients.

Versatile Hardware Positioning Option

Attachment hardware is included with every hip belt allowing for a multitude of positioning options.

Wickable Fabric

Wickable fabric that transports moisture away from the skin, coupled with a sleek pad design that reduces coverage, minimises sweating and moisture build-up.

Specifications

The Spex Hip Belt Advantage

Hip Belt Installation Tips

Specially designed, durable webbing is ‘ridge’ woven for maximum grip once adjusted
Soft comfortable pads offer excellent resilience, water resistance, and conform to the body without creasing.
Smooth, soft binding is comfortable against sensitive skin
Tough stainless steel adjusters which don’t slip out of place
Attachment hardware allows for a multitude of positioning options

The hip belt is the primary anterior support in seating, as it helps to maintain the stability of the pelvis.
Proper placement and use of anterior pelvic supports in a wheelchair or supportive stroller may prevent sliding into maladaptive, unsafe or non-functional postures.

For maximum effect, position the attachment points of the hip belt as close to the user as possible
Positioning the main (wide) straps below the ASIS reduces the possibility of the pelvis slipping under the belt
The selection and set-up of the cushion and backrest influences the position and stability of the pelvis

*Anterior Superior Iliac Spine

Resources

Spex Hip Belts Flyer 0.15 MB

Specifications

Hip Belt & Harness Size Selection Guide

Hip Belt & Harness Buckle Options

Attachment Points: Two points of attachment to the wheelchair. Suitable for mild to moderate positioning requirements.
Operator: User or Carer
Adjustment: Tensions at the centre of the buckle.
Applications: Clients with low muscle tone or weakness.

SPEX HIP BELT & HARNESS SIZE SELECTION GUIDE DEPENDS ON PHYSIQUE OF USER
USER’S W/C WIDTH	8-12″	11-15″	14-17″	17-20″
RECOMMENDED SIZE	X-Small	Small	Medium	Large
PRODUCT CODE	1406-6410-XXX	1406-6411-XXX	1406-6412-XXX	1406-6413-XXX

SPEX HIP BELT & HARNESS SIZE SELECTION GUIDE

DEPENDS ON PHYSIQUE OF USER

USER’S W/C WIDTH

8-12″

11-15″

14-17″

17-20″

RECOMMENDED SIZE

X-Small

Small

Medium

Large

PRODUCT CODE

1406-6410-XXX

1406-6411-XXX

1406-6412-XXX

1406-6413-XXX

These last three digits of the code refer to the buckle type. See table on next tab for buckle options.

SPEX HIP BELT & HARNESS BUCKLE OPTIONS
NAME	DESCRIPTION	IMAGE	PRODUCT CODE
Side Release Buckle	Simple and easy to click together and undo. Suitable for career operation. Squeeze the two clips together to release.		-027
Centre Release Buckle	Robust design that is strong enought to keep the user positioned safely. Suitable for user operation. Press the release button to release the buckle.		-028
Anti-Escape Buckle	Steel Anti-Escape buckle can be installed to prevent those with challenging behaviour from escaping. Very successful in preventing individuals with inquistive fingers or learning difficulties from releasing the buckle. Operates in reverse to a normal buckle, and disengages by rasing a spring-loaded lever (won’t press release).		-026
Pen Popper Buckle	The Pen Popper buckle prevents unintentional releasing of the buckle. Extremely successful in preventing individuals with inquisitive fingers or learning difficulties from releasing the buckle. Requires a tool such as a pointed pen or key to fit through a small hole and reach the buckle release mechanism to open.		-025
Easy Release Latch Buckle	The Easy Release Latch buckle is a similar buckle to those found on aeroplane seats and allows for an easier one-hand release action. This is an ideal solution for users that self-transfer in and out of their wheelchair but have limited hand function to open buckles. Simply lift the metal buckle flap and slide the buckle apart.		-023
