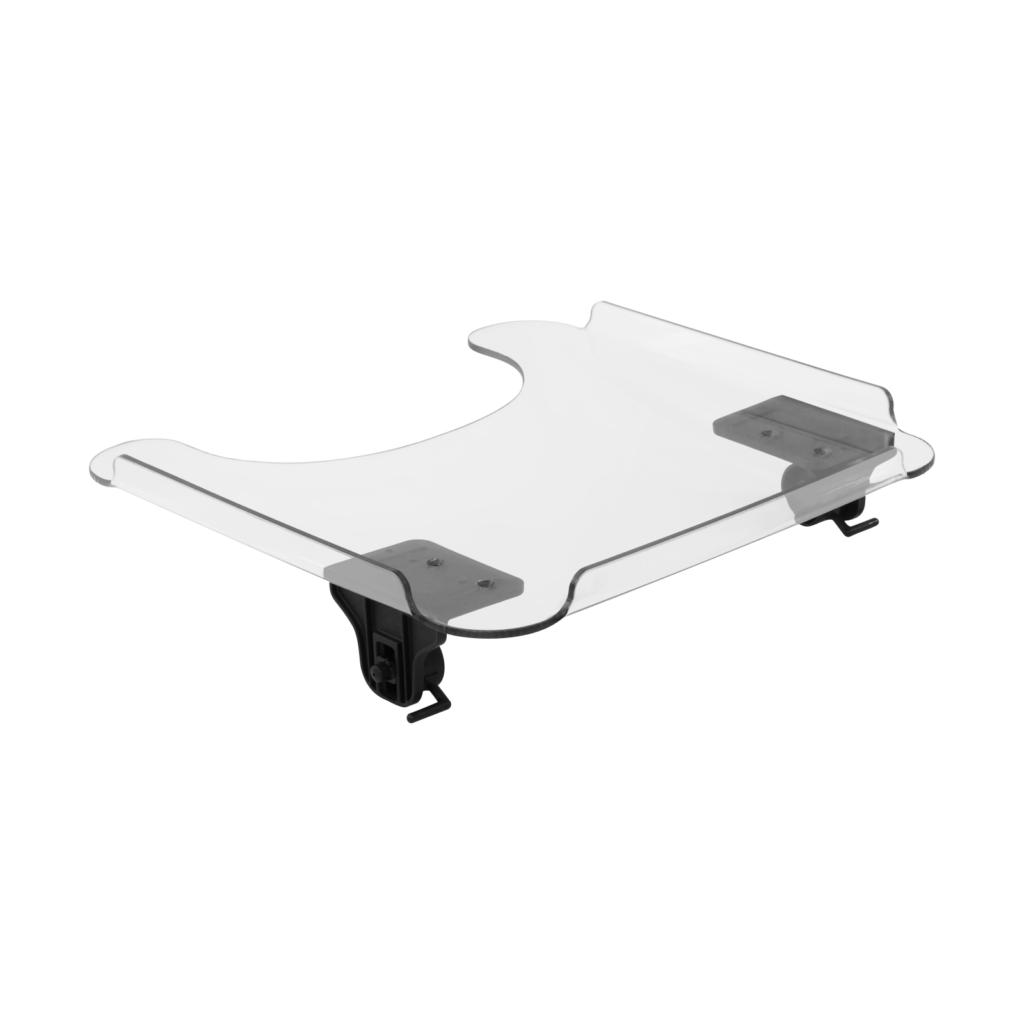

Superior wheelchair tray system with universal installation hardware to suit most wheelchairs with armrests.
Works excellently in conjunction using Spex arm supports mounted to a seat pan.
If a tilting tray surface is required, please refer to our tilting armrest hardware.
- Can be mounted flush to the outside of the armpads when tray width is an issue
- Durable glass-filled nylon black material features recessed hardware that won’t tear armpads
- Slide tray onto the arm supports from the front
- Hardware has arm pad thickness adjustment
- Tray has to be 1″ greater than the outside-to-outside armpad width
- By default these are not installed on the tray top unless requested.
(Arm pad dimensions may be required)
- Designed for upper arm propping
- Better visual and functional access to communication devices
- Good option to help encourage spinal extension
- Black or clear tray surfaces available
- Depth adjustable
- Height adjustable
- Width adjustable brackets
A range of durable wheelchair activity tray tables are available as standard off-the-shelf kits.
Trimmings and accessories augment this product range with comfort padding and elbow control, and they are made to suit powered and manual wheelchairs alike.
When using this tray on power wheelchairs, it is important to ensure a swing-away joystick is installed to aid installation. Your local technician may be able to make shape alterations in order to accommodate joysticks or communication devices etc.
| Code | Clear Polycarbonate Tray Top with Slide & Lock Hardware | Size | Dimensions | Cut-out |
|---|---|---|---|---|
| 1311-7111-000 | Clear tray top with slide & lock hardware | Small | 450 x 450mm | 280 x 150mm |
| 1311-7112-000 | Clear tray top with slide & lock hardware | Medium | 550 x 550mm | 330 x 180mm |
| 1311-7113-000 | Clear tray top with slide & lock hardware | Large | 650 x 650mm | 400 x 220mm |
| Code | Black ABS Tray Top with Slide & Lock Hardware | Size | Dimensions | Cut-out |
| 1311-7101-000 | Black ABS tray top with slide & lock hardware | Small | 450 x 450mm | 280 x 150mm |
| 1311-7102-000 | Black ABS tray top with slide & lock hardware | Medium | 550 x 550mm | 330 x 180mm |
| 1311-7103-000 | Black ABS tray top with slide & lock hardware | Large | 650 x 650mm | 400 x 220mm |
Note: Tray tops are not supplied with hardware installed
| Small | Medium | Large | |
|---|---|---|---|
| Recommended Wheelchair Size | 10-13″ | 14-17″ | 18-21″ |
